38 Operation Manual

2 Installing GC Columns

To Prepare the Column Ends for a CFT Fitting

Materials needed

• SilTite ferrules:

• 0.1- to 0.25-mm columns, pkg of 10 (5188-5361)

• 0.32-mm columns, pkg of 10 (5188-5362)

• 0.53-mm columns, pkg of 10 (5188-5363)

• Swaging nut

• Wrench, open-end, 1/4-inch and 5/16-inch (8710-0510)

Procedure

1 Obtain the appropriate metal ferrule.

2 Pass the tubing end through the internal nut and SilTite

ferrule leaving approximately 1 cm of fused silica tubing

protruding beyond the ferrule. Thread the ferrule

pre-swaging tool onto the internal nut with the tube

protruding (see Figure 4).

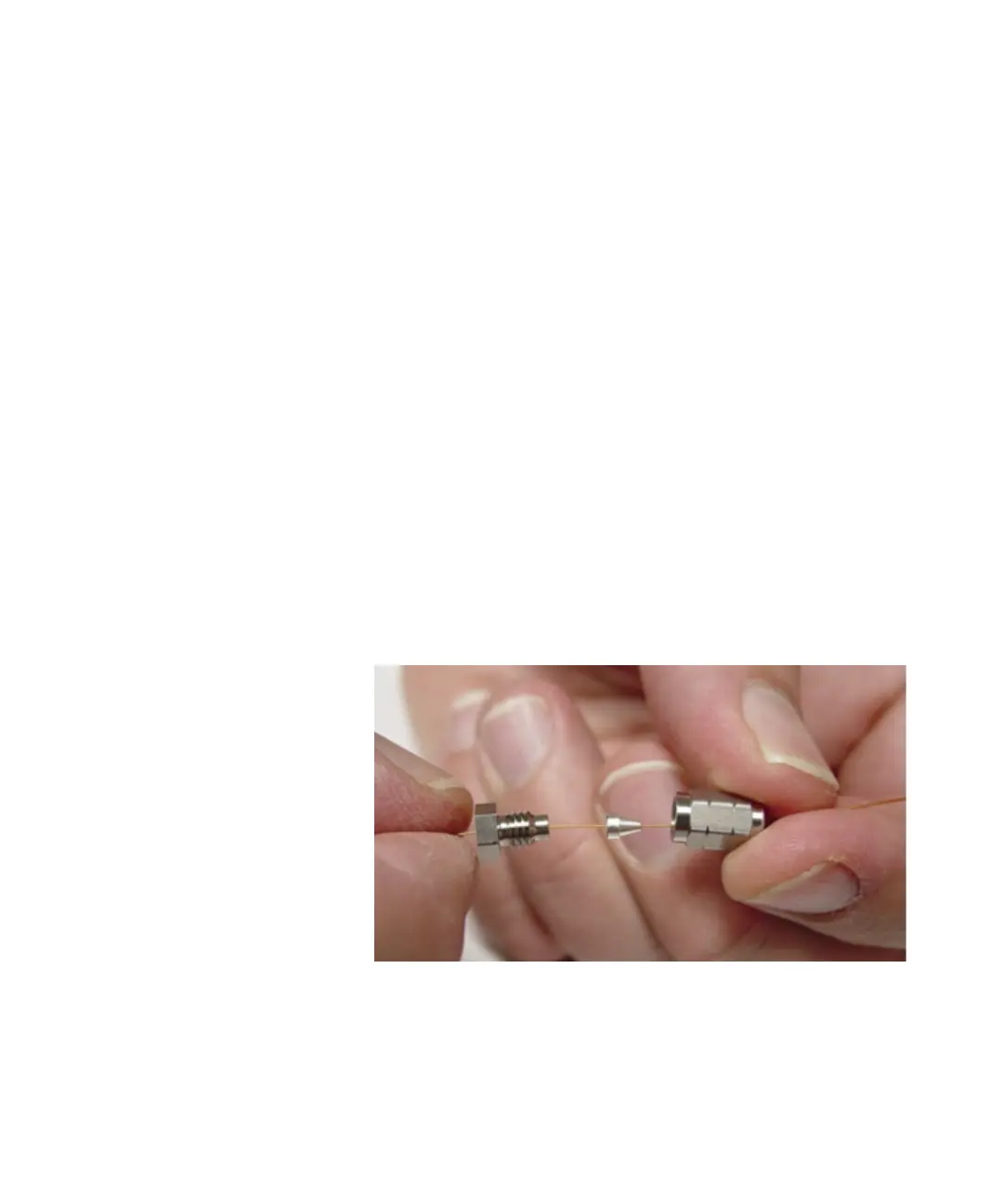

Figure 4 Assemble the internal nut, ferrule, and swaging nut
