Service Guide 4-13
8719ET/20ET/22ET Start Troubleshooting Here
8719ES/20ES/22ES Step 4. Faulty Group Isolation
RF Network Analyzers
Step 4. Faulty Group Isolation
The five functional groups are:
• Power Supplies
• Digital Control
•Source
• Receiver
• Accessories
Descriptions of these groups are provided in Chapter 12 , “Theory of Operation.”
IMPORTANT The checks in the following pages must be performed in the order presented.
If one of the procedures fails, it is an indication that the problem is in the
functional group checked. Go to the troubleshooting information for the
indicated group to isolate the problem to the defective assembly.

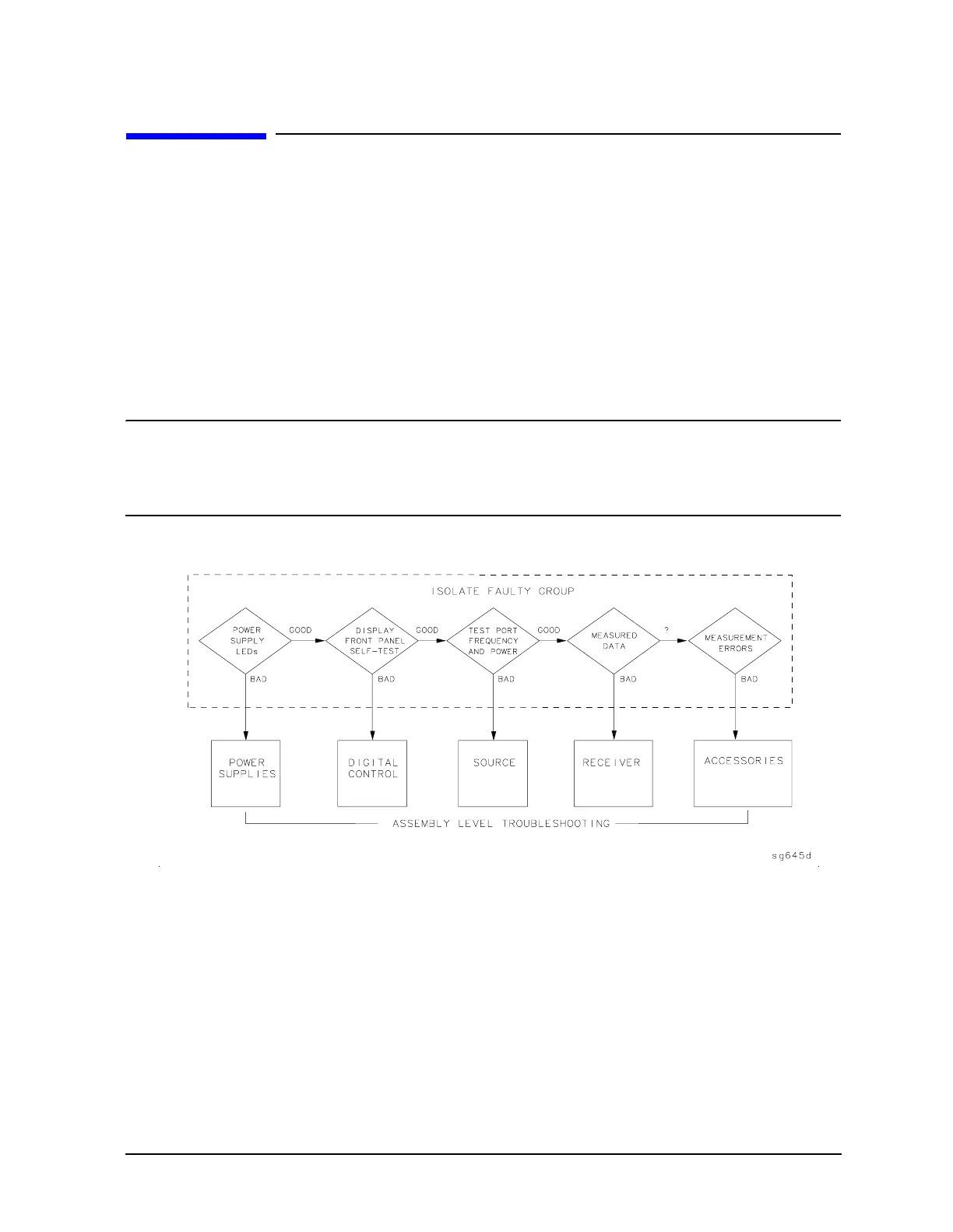

Figure 4-2 Troubleshooting Organization
To Next Page
