2-22 Service Guide
System Verification and Performance Tests 8719ET/20ET/22ET
System Verification 8719ES/20ES/22ES
RF Network Analyzers
Measurement Calibration
1. Continue with cables connected to PORT 1 and PORT 2 (REFLECTION port and
TRANSMISSION port on ET models) (see Figure 2-9).

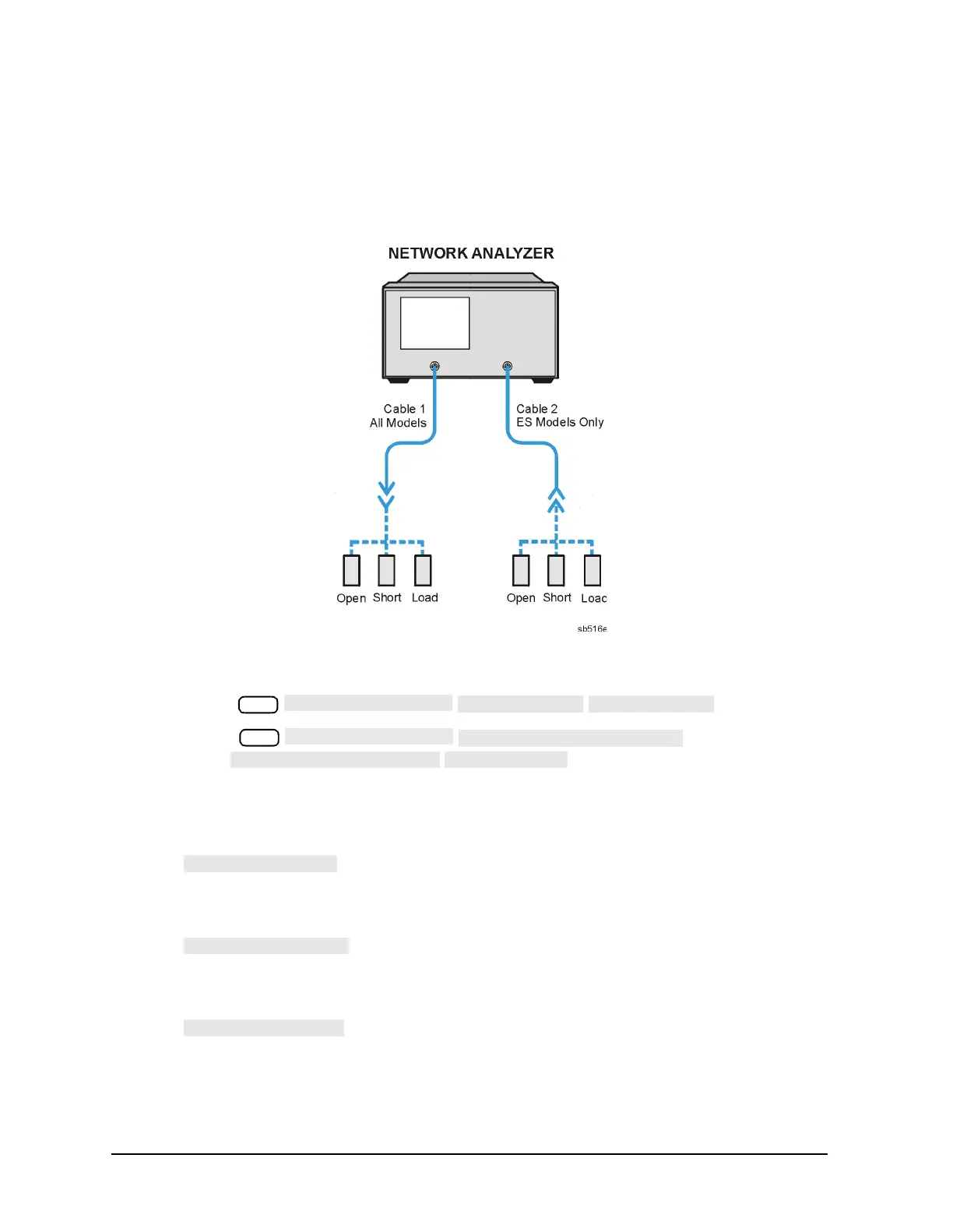

Figure 2-9 Connections for Measurement Calibration Standards
2. Press the following:
ES models:
ET models:
Port 1 Calibration
3. Connect the open that is supplied in the calibration kit to cable 1.
4. Press .
5. When the analyzer finishes measuring the standard, connect the short that is supplied
in the calibration kit to cable 1.
6. Press .
7. When the analyzer finishes measuring the standard, connect the 50Ω termination that
is supplied in the calibration kit to cable 1.
8. Press .
Cal
Cal
