Start Troubleshooting Here 8719ET/20ET/22ET
Source Check 8719ES/20ES/22ES
RF Network Analyzers
No Oscilloscope or Power Meter? Try the ABUS
Monitor ABUS node 9.
Press the following:
The display should resemble the Figure 4-6. If any of the above procedures provide
unexpected results, or if error messages are present, refer to Chapter 7 , “Source
Troubleshooting.”

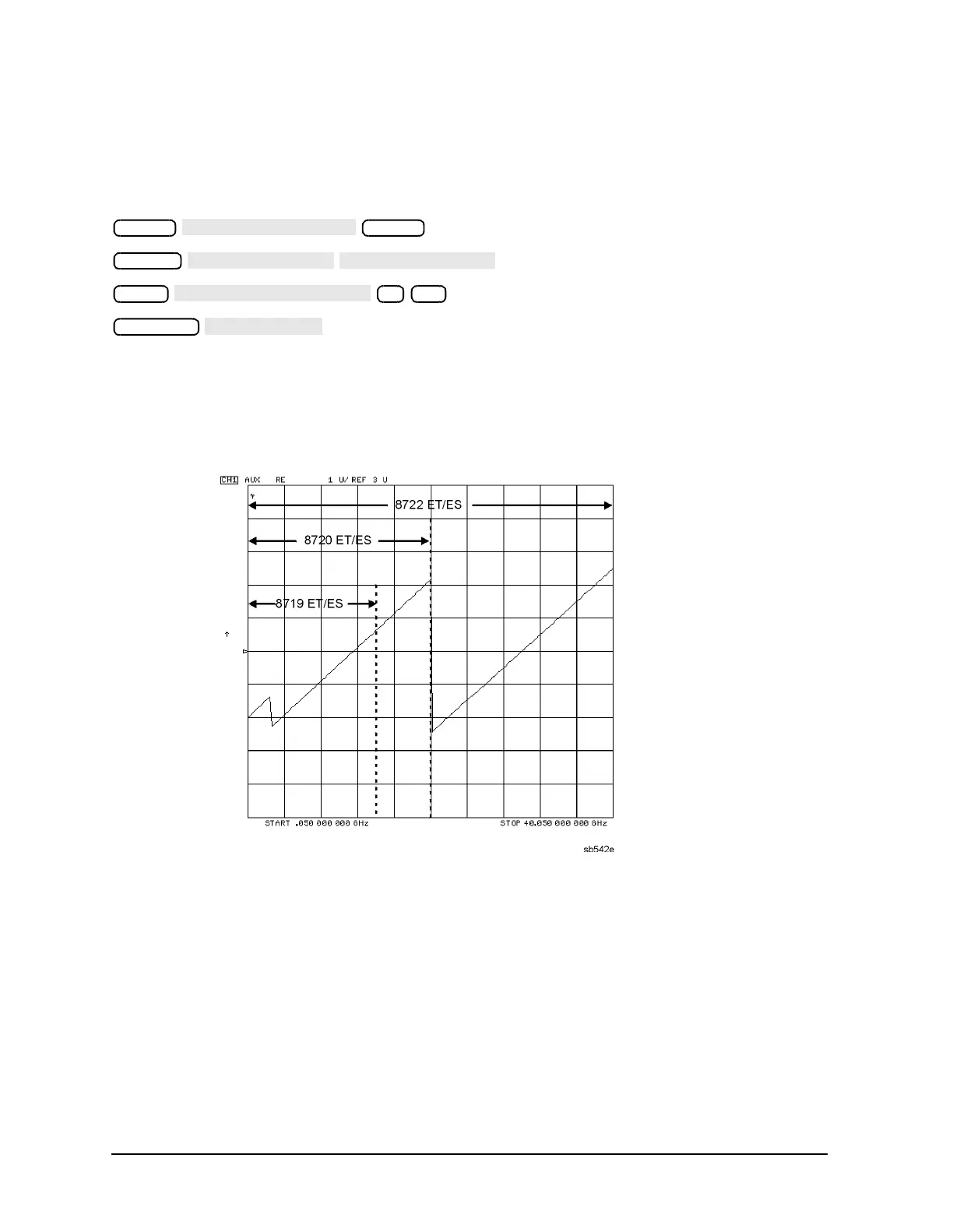

Figure 4-6 0.25 V/GHz Waveform at Abus Node 9
Preset
PRESET: FACTORY
Preset
System
SERVICE MENU
ANALOG BUS ON
Meas
ANALOG IN Aux Input
9 x1
Scale Ref
AUTOSCALE
