8719ET/20ET/22ET Replaceable Parts
8719ES/20ES/22ES Replaceable Part Listings
RF Network Analyzers

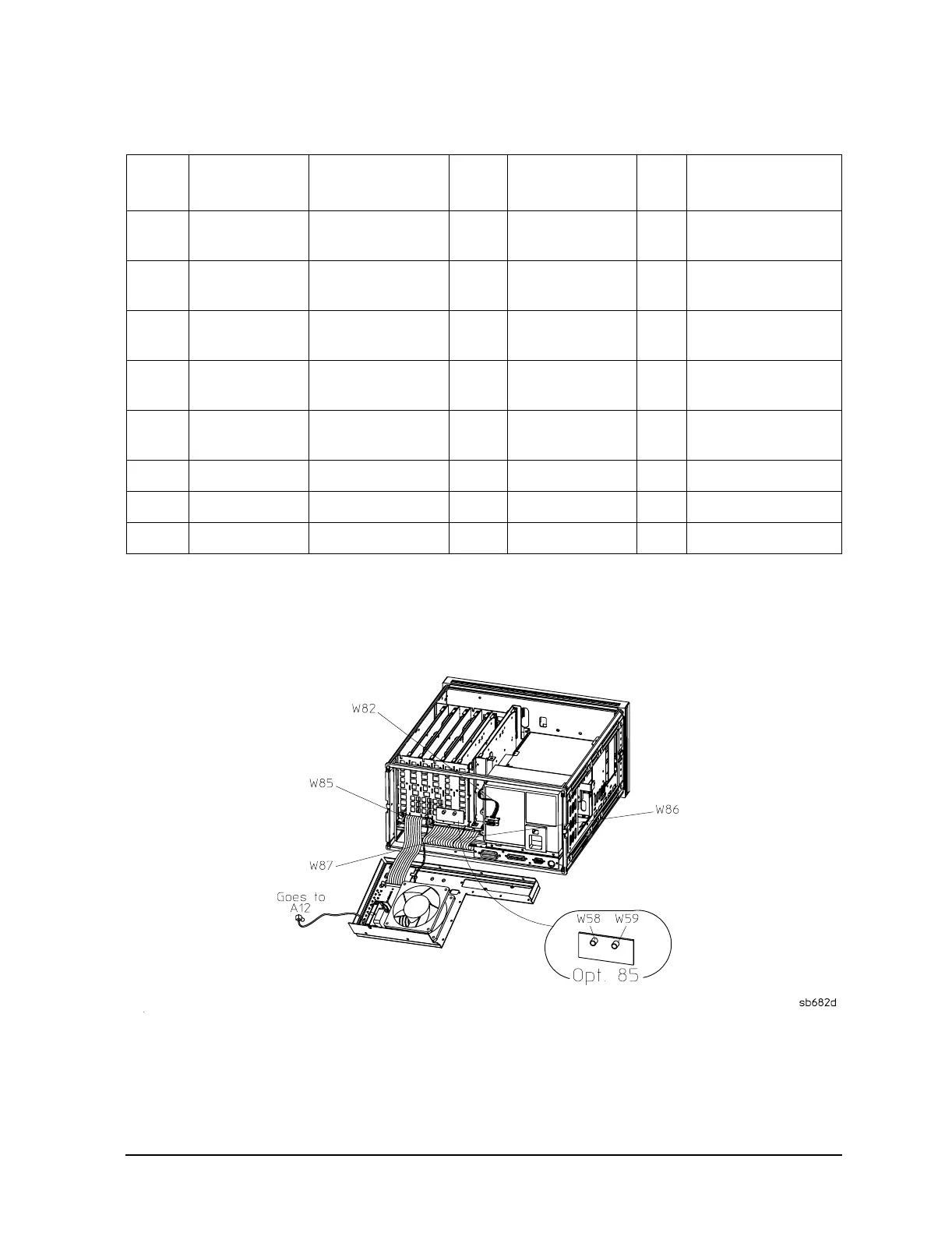

Rear Cables, All Models
Rear Panel All Models
Ref.
Desig.
Agilent Models Options
Type
1
1. nW is an abbreviation for Wire Bundle (n is the number of wires in the bundle)
HP/Agilent Part
Number
Qty Description
W58 8719ES
8720ES
085 SR 08720-20135 1 A69 To Rear Panel
Source Out
W58 8722ES 085 SR 08722-20085 1 A69 To Rear Panel
Source Out
W59 8719ES
8720ES
085 SR 08720-20144 1 Rear Panel Source
In To A74
W59 8722ES 085 SR 08722-20084 1 Rear Panel Source
In To A74
W82 All All 14W 8120-6876 1 VGA Out To
A22J2
W85 All All 3W 8120-6859 1 A16 To A17
W86 All All 2W 8120-6382 1 A7 To A17
W87 All All 50W 8120-6379 1 A7 To A17
