Making Mixer Measurements
Fixed IF Mixer Measurements
When the sequences are finished you should have a result as shown in Figure 2-23.

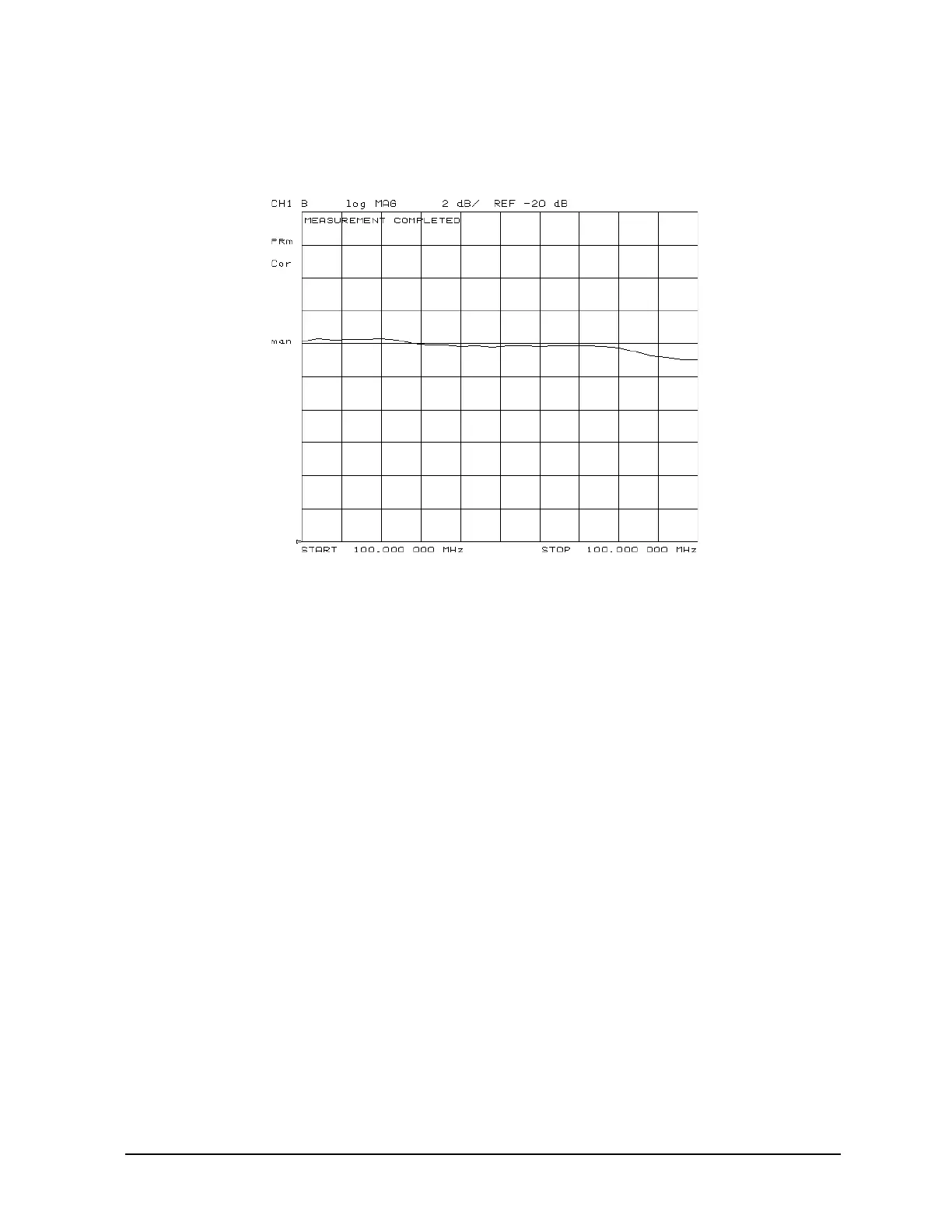

Figure 2-23 Example Fixed IF Mixer Measurement
The displayed trace represents the conversion loss of the mixer at 26 points. Each point corresponds to one
of the 26 different sets of RF and LO frequencies that were used to create the same fixed IF frequency.
