Making Measurements
Measuring Amplifiers
High Power Configuration Three
Figure 1-55 shows the external high power configuration. With this setup you can develop your own high
power configuration. This solution can be used for measurements in the forward direction as long as the
maximum power limits of the analyzer are not exceeded. This configuration offers higher power capabilities.
NOTE This is only an example configuration for high power applications. Actual device values need
to be determined for each individual application.

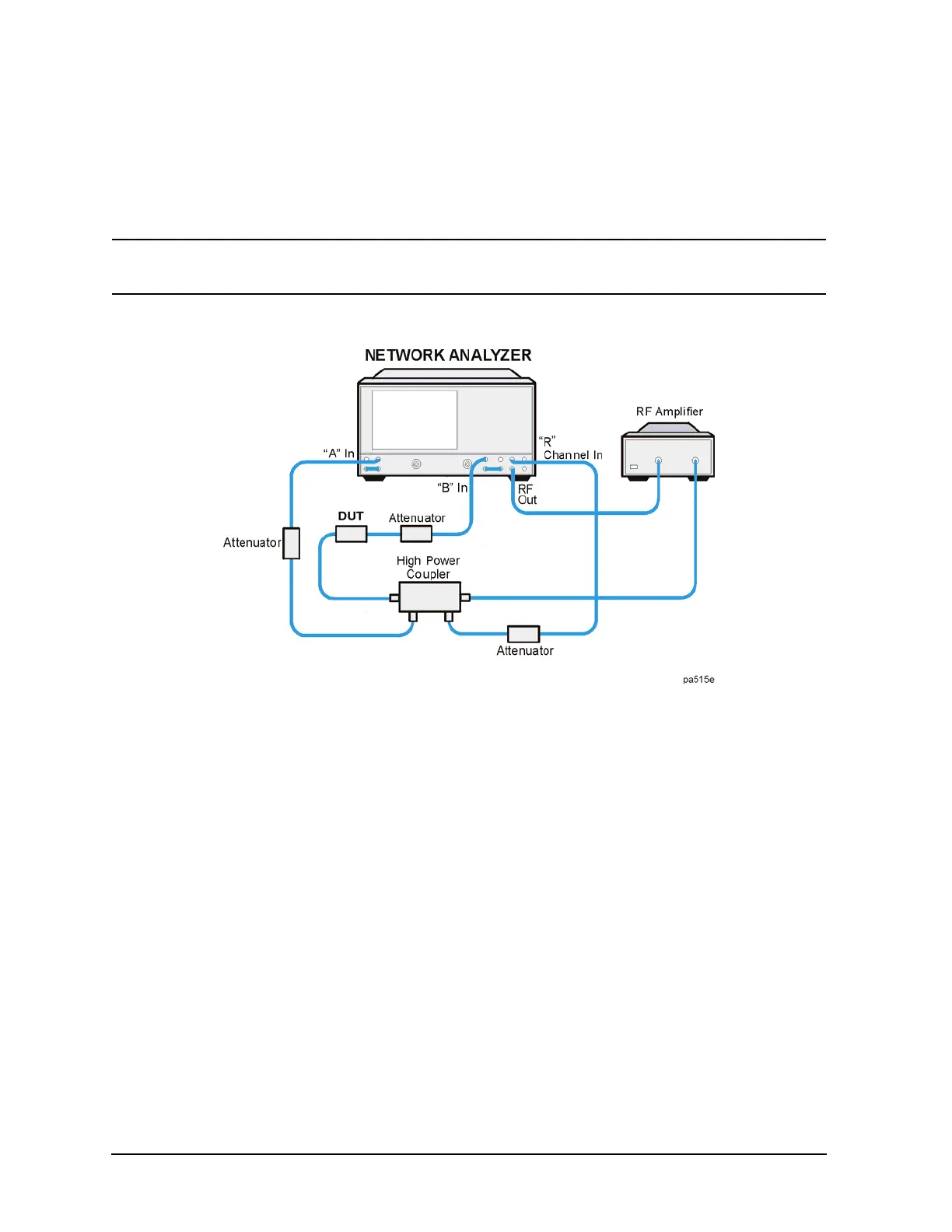

Figure 1-55 High Power Configuration Three
