How Do I Configure the Test Set for My Test System?

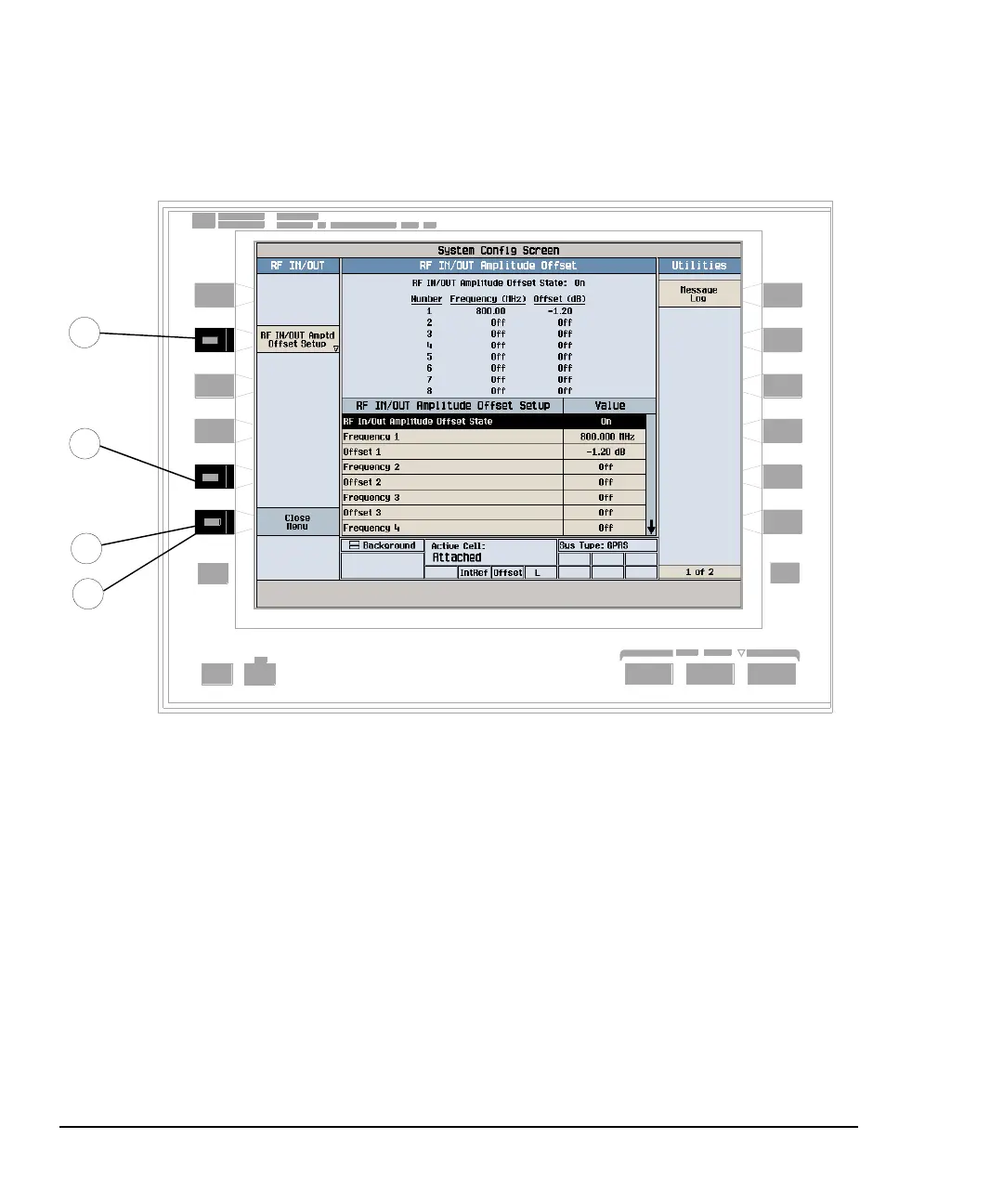

B. Set amplitude offsets.
1. On the Configuration Summary screen, press the RF IN/OUT Amptd Offset (F5)
key.
2. On the RF IN/OUT Amplitude Offset screen, press the RF IN/OUT Amptd
Offset Setup (
F2) key.
3. Enter the amplitude offsets for the test frequencies you use.
4. Press the Close Menu (
F6) key.
5. Press the Return (
F6) key to return to the Configuration Summary screen.
2
4
1
5
