cdma2000 Measurement Procedures
Measuring Gated Power
These measurements can be made only when one of the following radio
configurations (see “How Do I Set Up a Call?” on page 52) is selected:
• (Fwd1, Rvs1)
• (Fwd2, Rvs2)
1. Select the Gated Power measurement (see “B. Select measurements.” on page 48).
2. Press the (
F4) key to select Zoom.

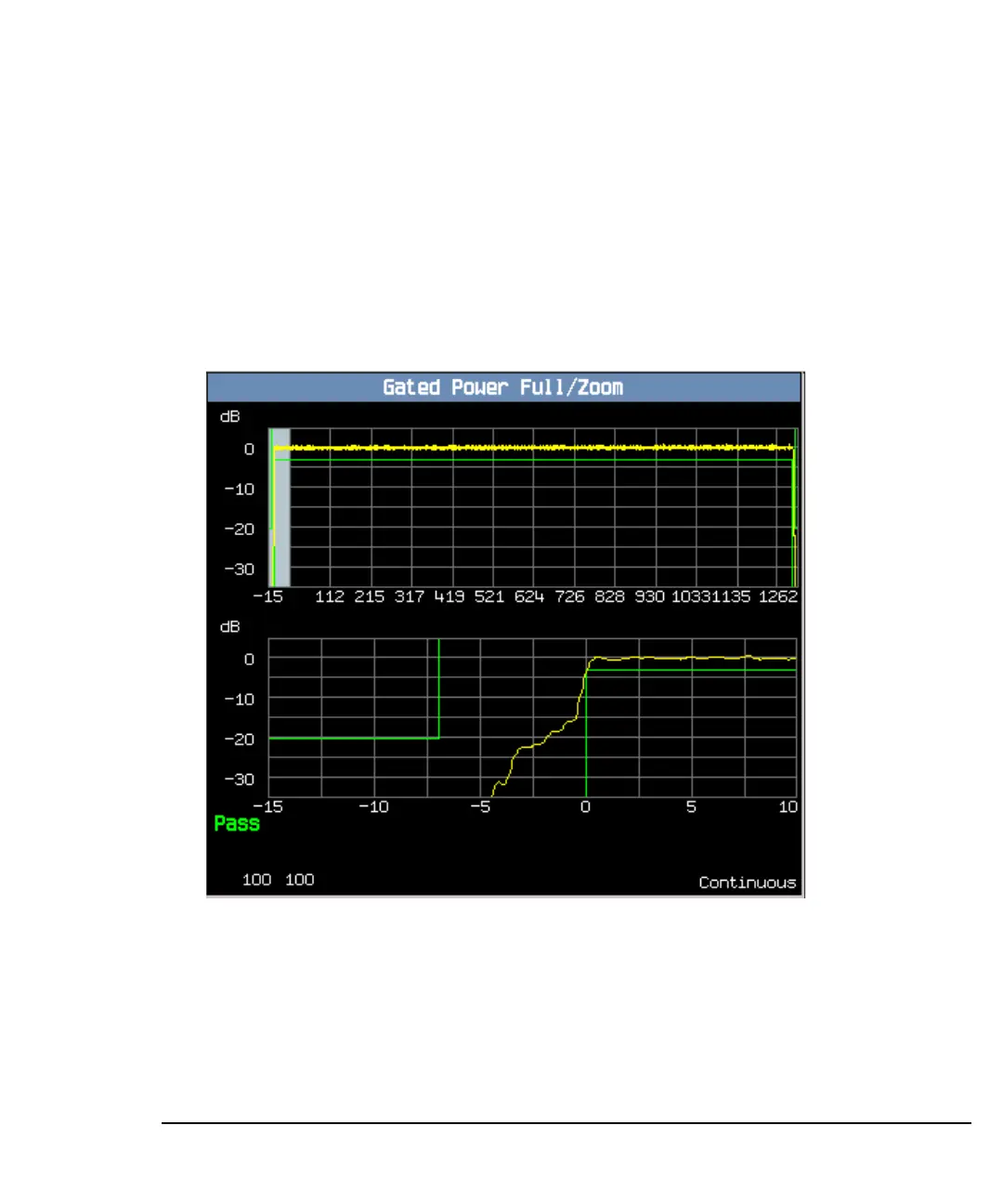

3. Turn the knob clockwise slowly to display the entire burst. Note the falling edge of
the burst at the last zoom position on the right side of the display.
4. Press the (
F2) key to select the Rise/Fall View.
