cdma2000 Measurement Procedures

Measuring Frame Error Rate (FER)

1. Press the Measurement selection key.

2. Select the Frame Error Rate measurement.

3. Press the Frame Error Rate Setup (

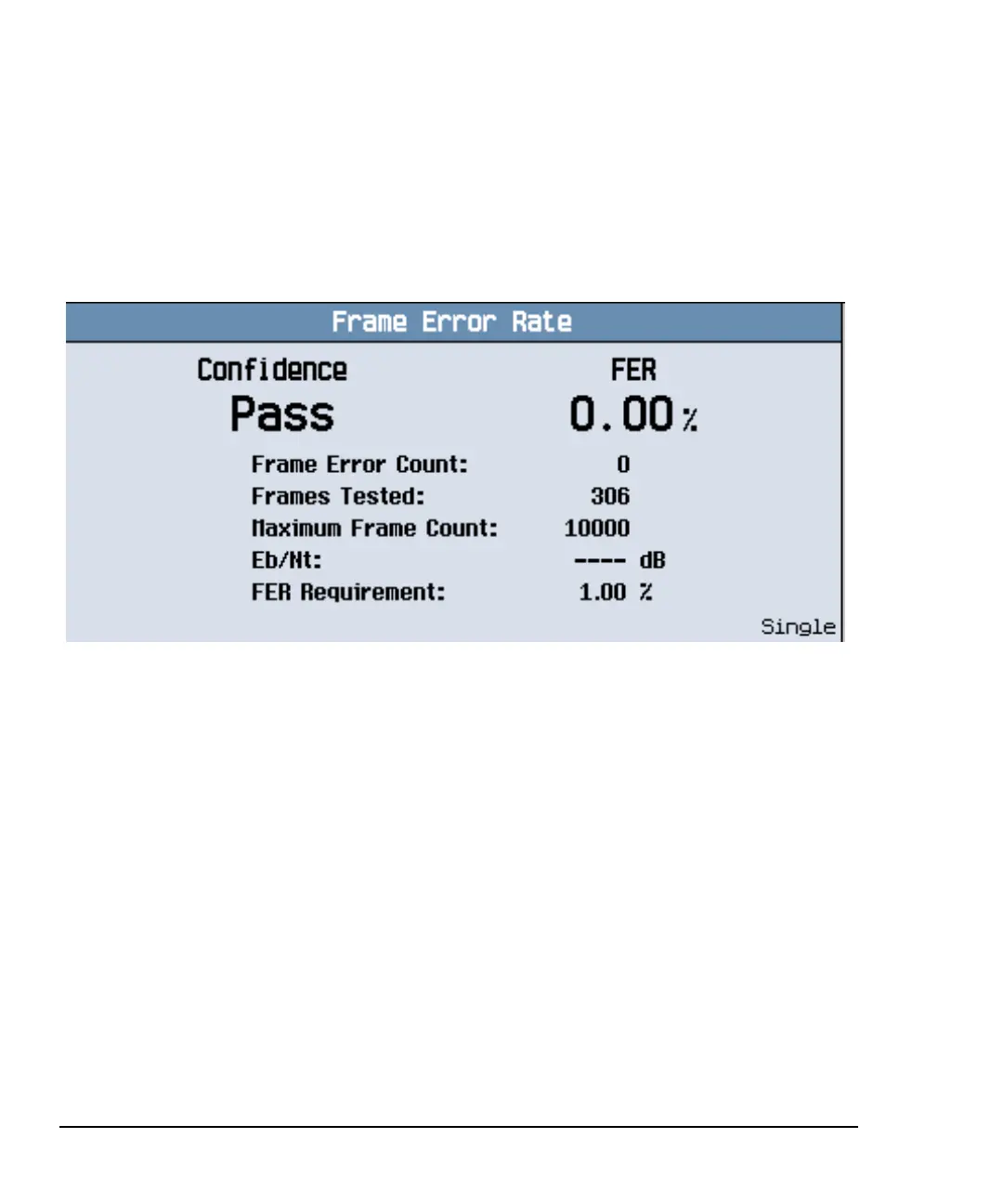

F1) key. A typical display is shown below.

4. Set up the measurement parameters as needed for your measurement situation.
