Agilent Technologies E4448A Service Guide

370 Chapter 11
Assembly Replacement Procedures
Vertical Board Assemblies (Standard Instrument)

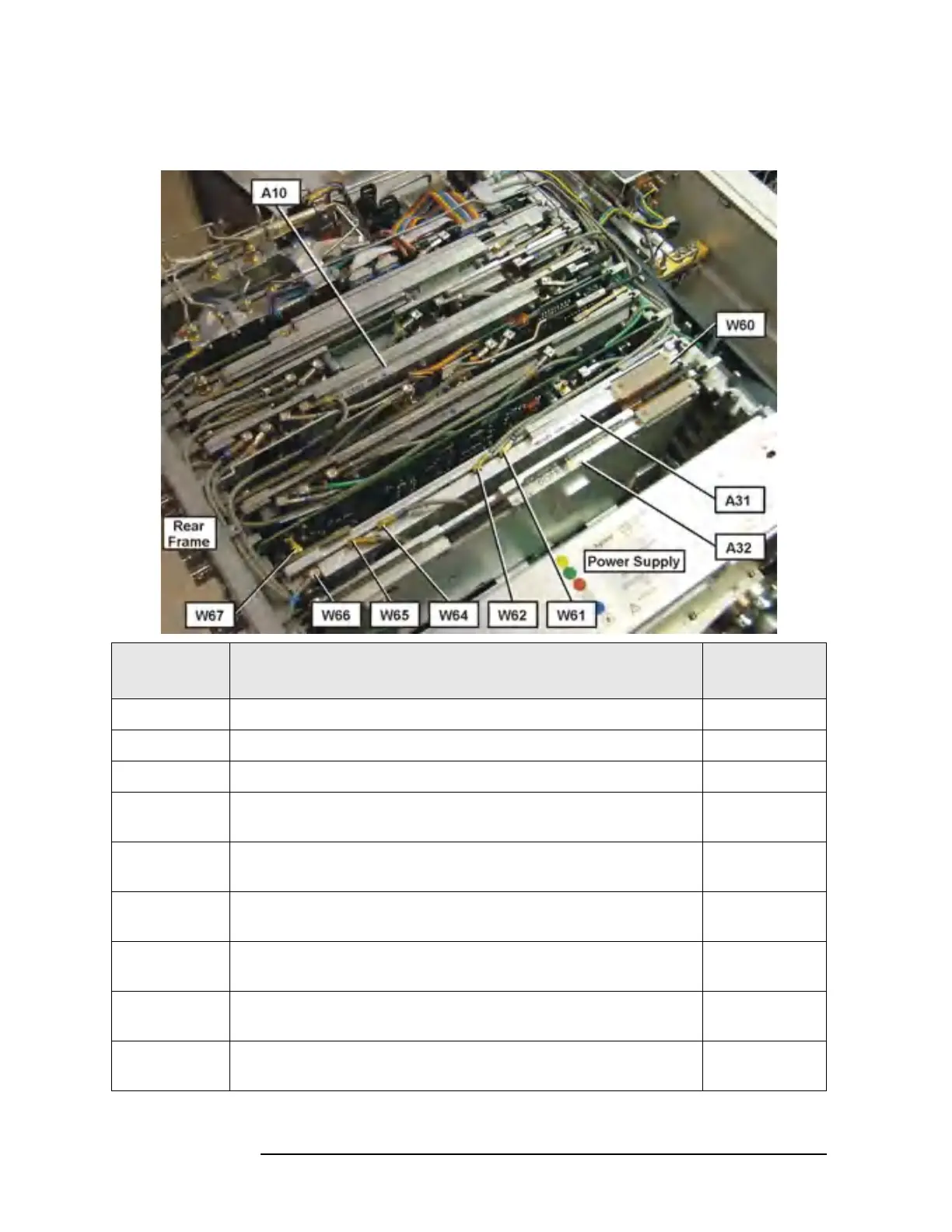

Figure 11-41 Option 122 or 140 Assembly and Cable Locations
Reference
Designator
Description Agilent Part
Number
A10 A10 3rd Converter Assembly E4440-60261
A31 A31 Wideband Analog IF Assembly (Option 122 or 140) E4440-60215
A32 A32 Wideband Digital IF Assembly (Option 122 or 140) E4440-60262
W60 W60 Cable, ribbon, ADC Data from A31 WB Analog IF to A32
WB Digital IF (Option 122 or 140)
E4440-60341
W61 W61 Cable (65), coax, 100 MHz Ref from A11 Reference
Assembly to A31 WB Analog IF (Option 122 or 140)
8121-1007
W62 W62 Cable (95), coax, 300 MHz Ref from A11 Reference
Assembly P4 to A31 WB Analog IF (Option 122 or 140)
8120-8863
W64 W64 Cable (60), coax, WB IF CA:L from A31 WB Analog IF to
A10 3rd Converter J6 (Option 122 or 140)
8121-1007
W65 W65 Cable (40), coax, 321.4 MHz IF from A10 3rd Converter J4
to A31 WB Analog IF (Option 122 or 140)
E4440-60343
W66 W66 Cable (66), coax, 321.4 MHz from A31 WB Analog IF to
Rear Panel (Option 122 or 140)
8121-1323
