See "Pattern Trigger" on page 150 for more information on Pattern
triggering.
Digital channel signal fidelity: Probe impedance and grounding
When using the mixed- signal oscilloscope you may encounter problems
that are related to probing. These problems fall into two categories: probe
loading and probe grounding. Probe loading problems generally affect the
device under test, while probe grounding problems affect the accuracy of
the data to the measurement instrument. The design of the probes
minimizes the first problem, while the second is easily addressed by good
probing practices.

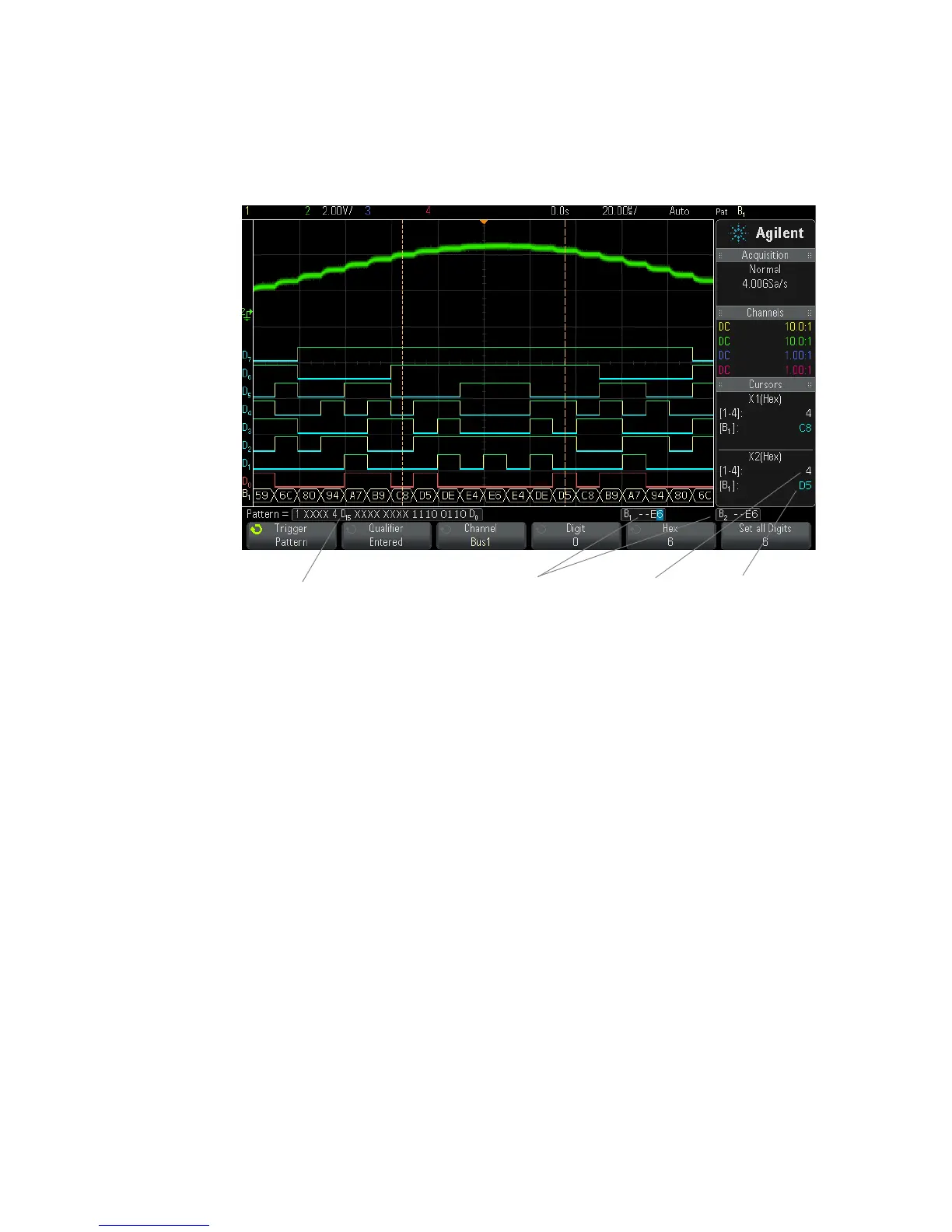

Digital
channel
values
at cursor
Trigger
pattern
definition
Bus values
displayed
Analog
channel
values
at cursor
