358 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
23 FlexRay Triggering and Serial Decode

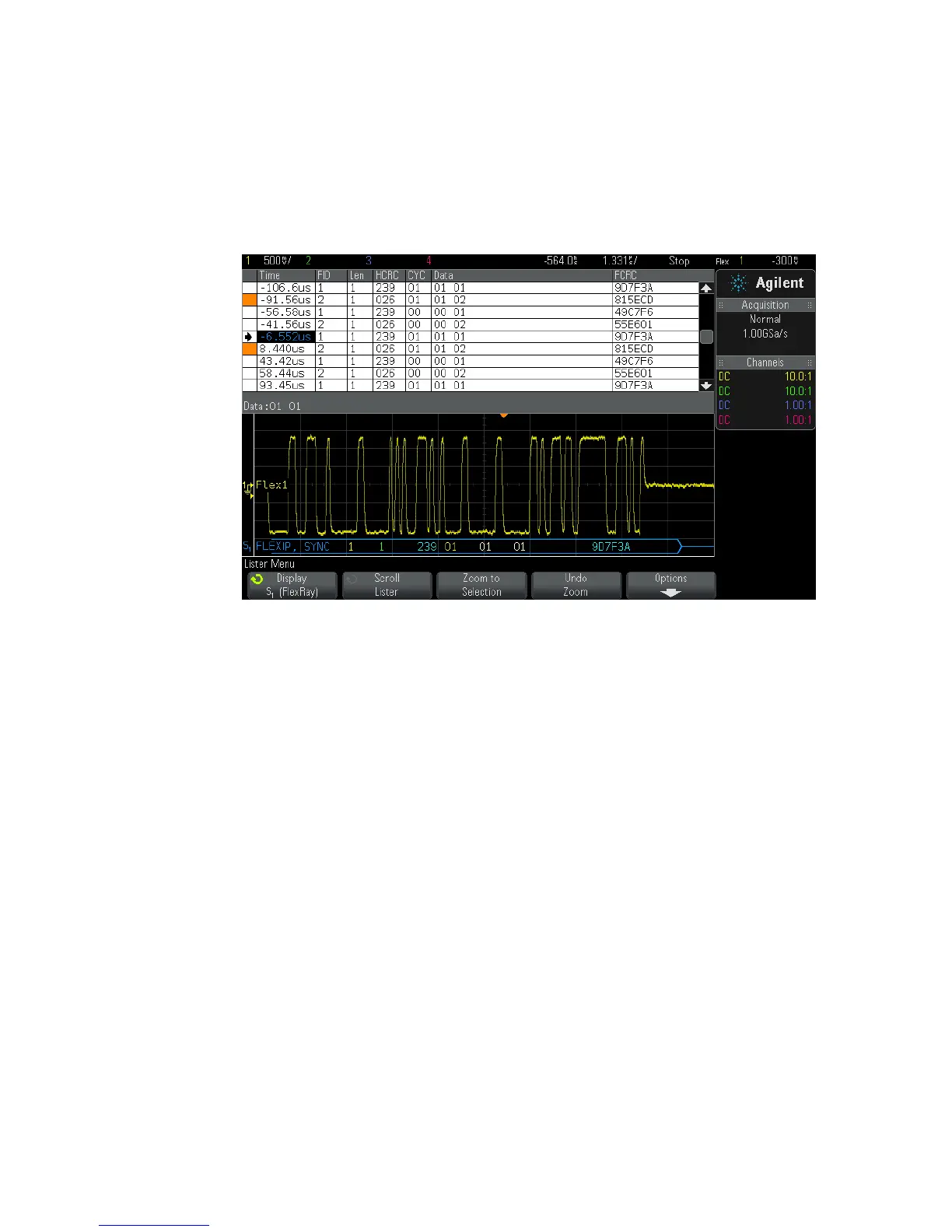

Interpreting FlexRay Lister Data
In addition to the standard Time column, the FlexRay Lister contains
these columns:
• FID — frame ID.
• Len — payload length.
• HCRC — header CRC.
• CYC — cycle number.
• Data.
• FCRC — frame CRC.
• Frames with errors are highlighted in red.
Searching for FlexRay Data in the Lister
The oscilloscope's search capability lets you search for (and mark) certain
types of FlexRay data in the Lister. You can use the [Navigate] key and
controls to navigate through the marked rows.
1 With FlexRay selected as the serial decode mode, press [Search].
