388 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
25 I2S Triggering and Serial Decode
"Searching for I2S Data in the Lister" on page 389

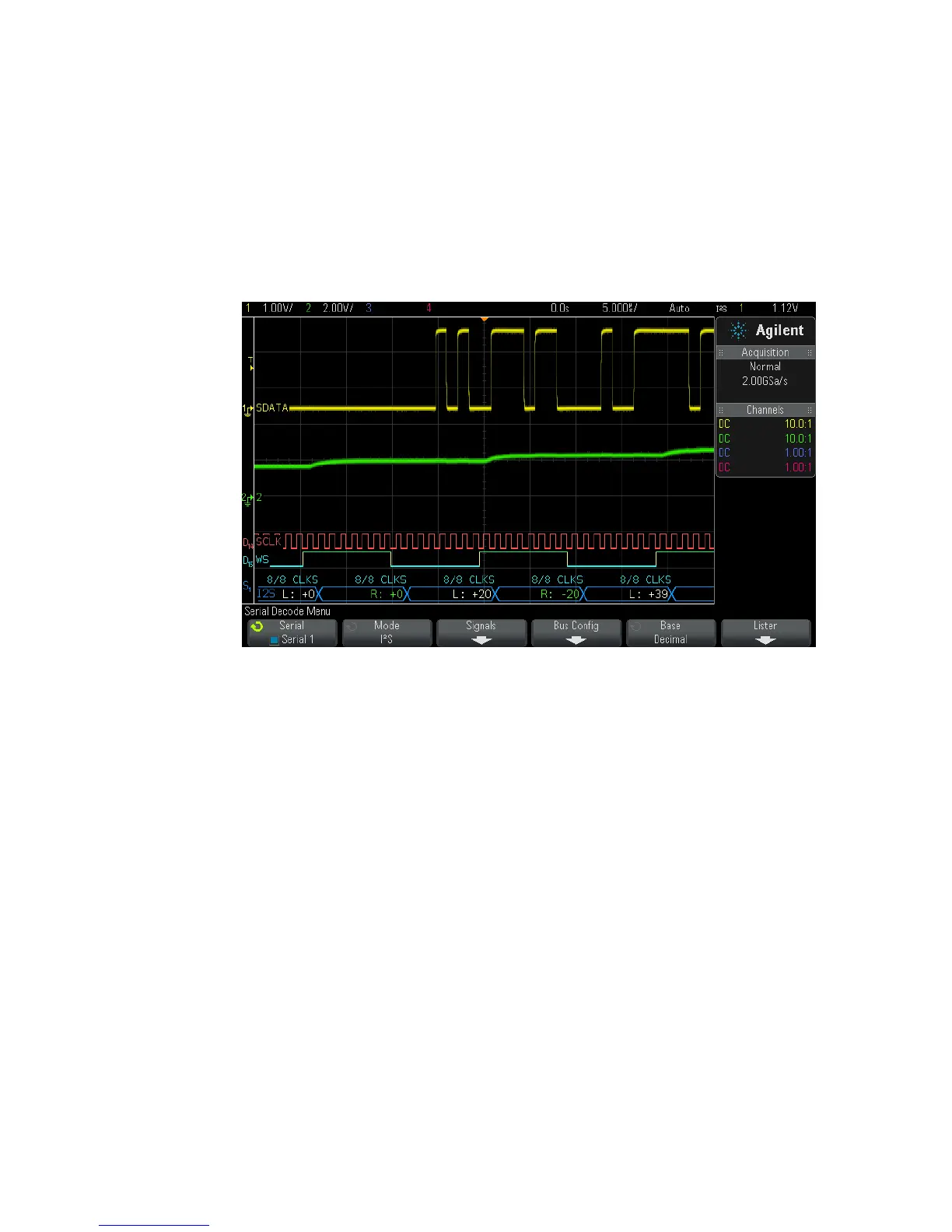

Interpreting I2S Decode
Angled waveforms show an active bus (inside a packet/frame).
Mid- level blue lines show an idle bus.
In the decoded data:
Right channel data values appear in green along with the "R:"
characters.
Left channel data values appear in white along with the "L:"
characters.
Decoded text is truncated at the end of the associated frame when
there is insufficient space within frame boundaries.
Pink vertical bars indicate you need to expand the horizontal scale (and
run again) to see decode.
Red dots in the decode line indicate that more data can be displayed.
Scroll or expand the horizontal scale to view the data.
Aliased bus values (undersampled or indeterminate) are drawn in pink.
Unknown bus values (undefined or error conditions) are drawn in red.
