Math Waveforms 4
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 97
Use the 0 Offset softkey to specify the analog value equivalent of a bus data
value of zero.
Use the Units softkey to specify the type of values the bus data represents
(volts, amps, etc.).
See Also • "Chart Logic Bus State" on page 97
Chart Logic Bus State
The Chart Logic Bus State function (available with the DSOX3ADVMATH
advanced math measurements license) displays bus data values, sampled
on a clock signal's edge, as an analog waveform (like a D/A conversion).
Use the Clock softkey to select the clock signal.
Use the Slope softkey to select the edge of the clock signal to be used.
Use the More Chart softkey to open a submenu for specifying the analog
value equivalent of each bus value increment, the analog equivalent of a
zero bus value, and the type of values the charted bus data represents
(volts, amps, etc.).

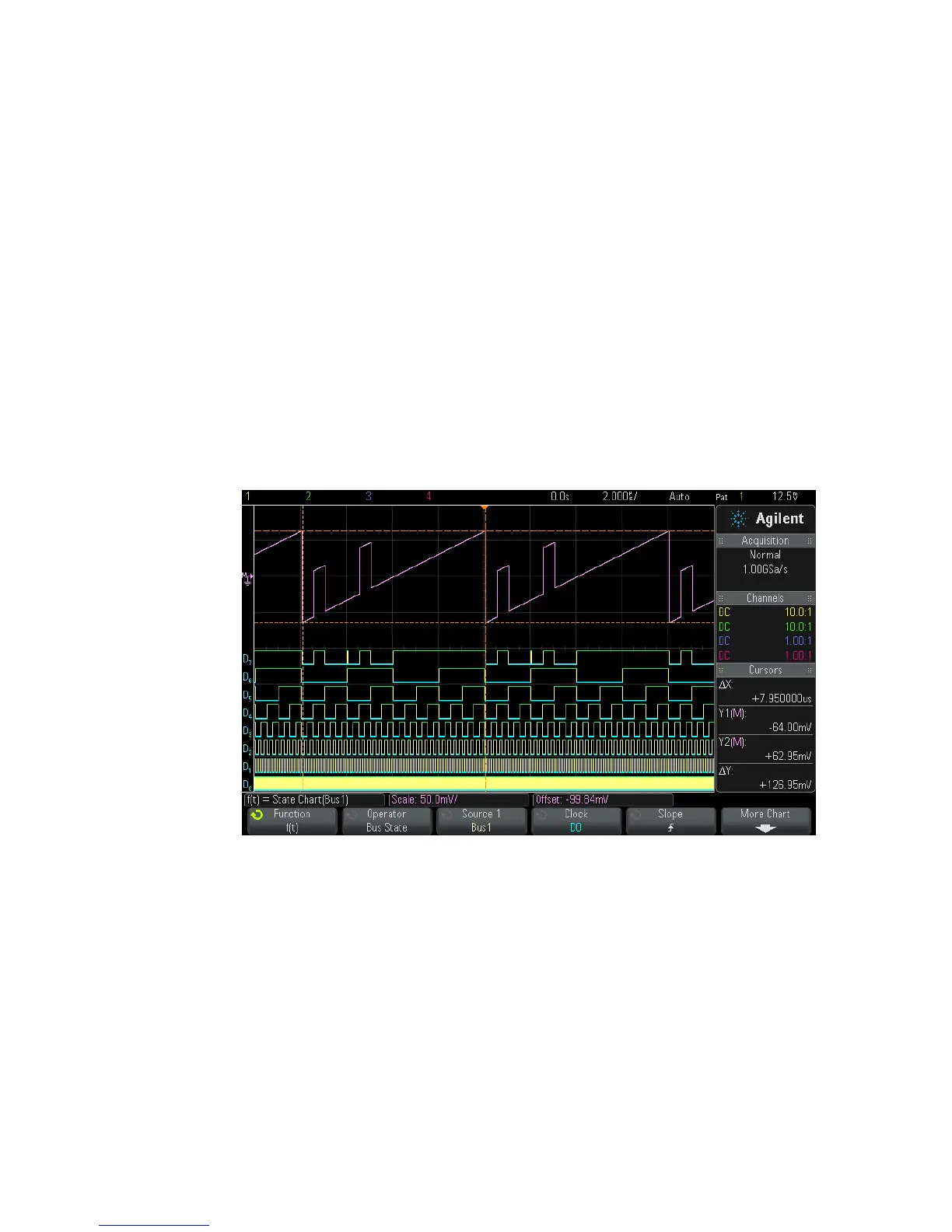

Figure 19 Example of Chart Logic Bus State
