Waveform Generator 16
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 255
To edit arbitrary waveforms
1 When Arbitrary is selected as the generated waveform type (see "To
select generated waveform types and settings" on page 251), press the
Edit Waveform softkey to open the Edit Waveform Menu.

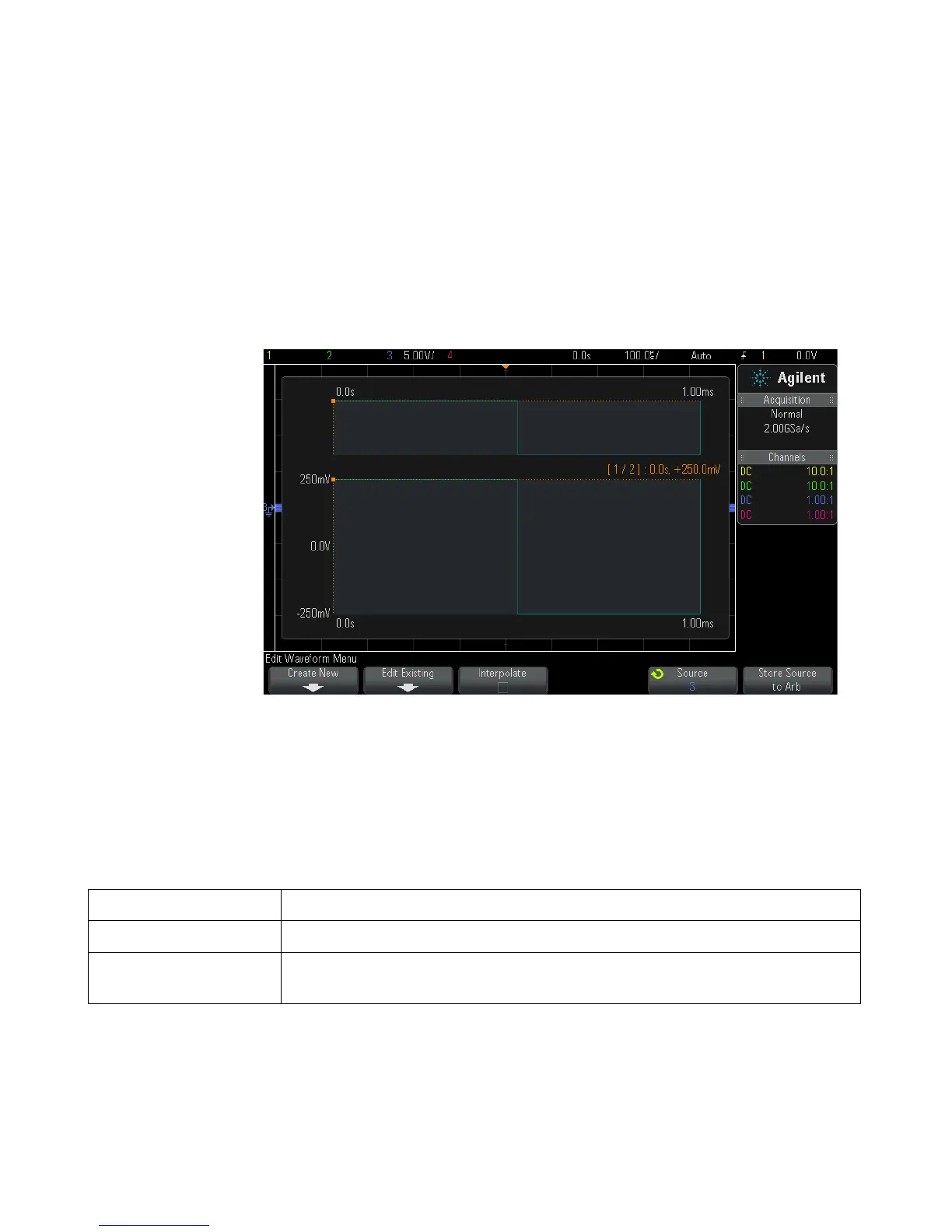

When you open the Edit Waveform Menu, you see the existing arbitrary
waveform definition. The voltage and time period you see in the
diagram are the bounding parameters — they come from the frequency
and amplitude settings in the main Waveform Generator Menu.
2 Use the softkeys in the Edit Waveform Menu to define the shape of the
arbitrary waveform:
Softkey Description
Create New Opens the New Waveform Menu. See "Creating New Arbitrary Waveforms" on page 256.
Edit Existing Opens the Edit Waveform Points Menu. See "Editing Existing Arbitrary Waveforms" on
page 257.
