94 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
4 Math Waveforms
Math Visualizations
With the DSOX3ADVMATH advanced math measurements license, you can
apply visualization math functions that give you different ways of viewing
captured data and measurement values.
• "Magnify" on page 94
• "Measurement Trend" on page 95
• "Chart Logic Bus Timing" on page 96
• "Chart Logic Bus State" on page 97
Magnify
The magnify math function (available with the DSOX3ADVMATH advanced
math measurements license) lets you display an existing input source at
different vertical settings to provide more vertical detail.
See Also • "Ax + B" on page 88

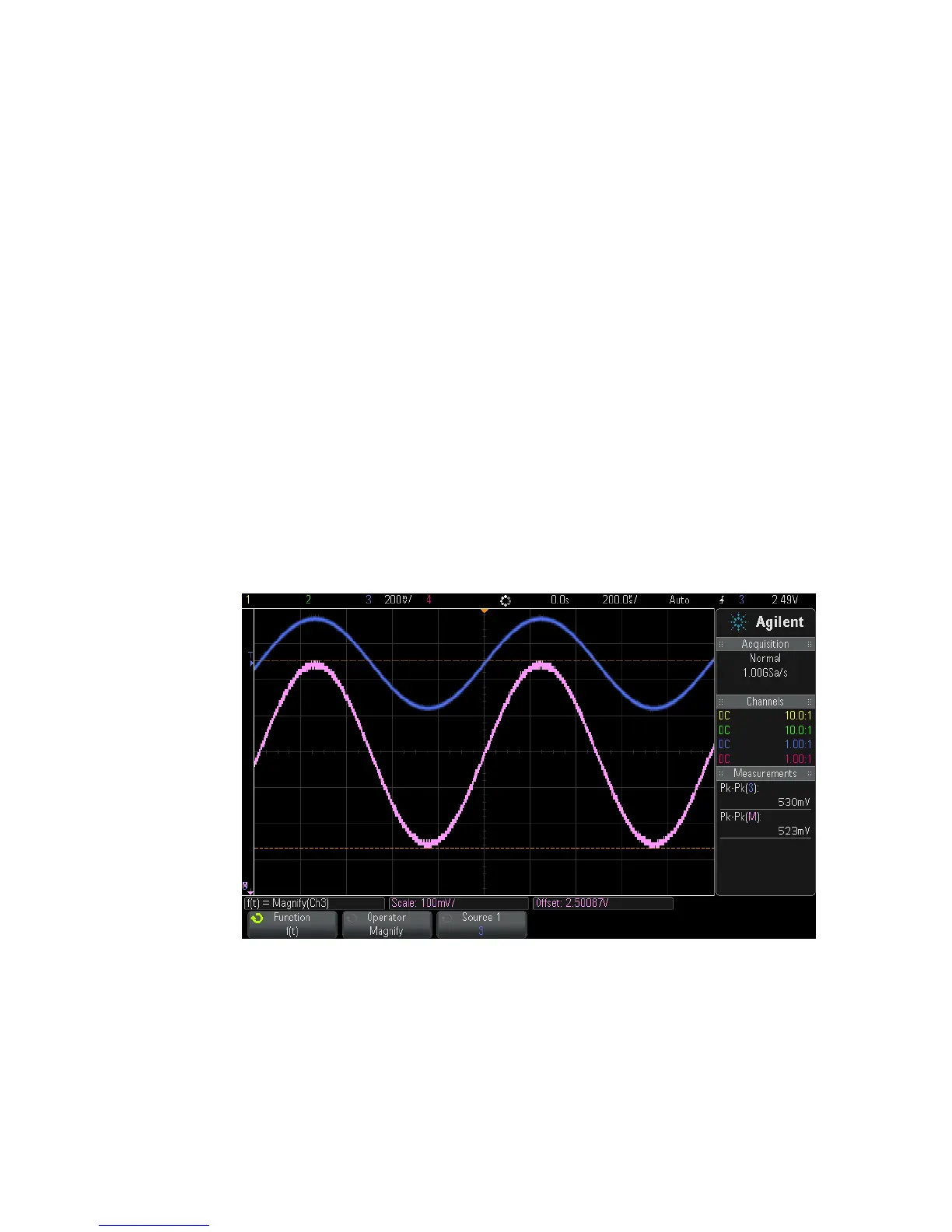

Figure 16 Example of Magnify
