Triggers 10
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 169
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select Video.
3 Press the Settings softkey, then press the Standard softkey to select the
appropriate TV standard.
4 Press the Mode softkey and select Field1 or Field2.
To trigger on all fields of the video signal
To quickly and easily view transitions between fields, or to find the
amplitude differences between the fields, use the All Fields trigger mode.
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select Video.
3 Press the Settings softkey, then press the Standard softkey to select the
appropriate TV standard.
4 Press the Mode softkey and select All Fields.

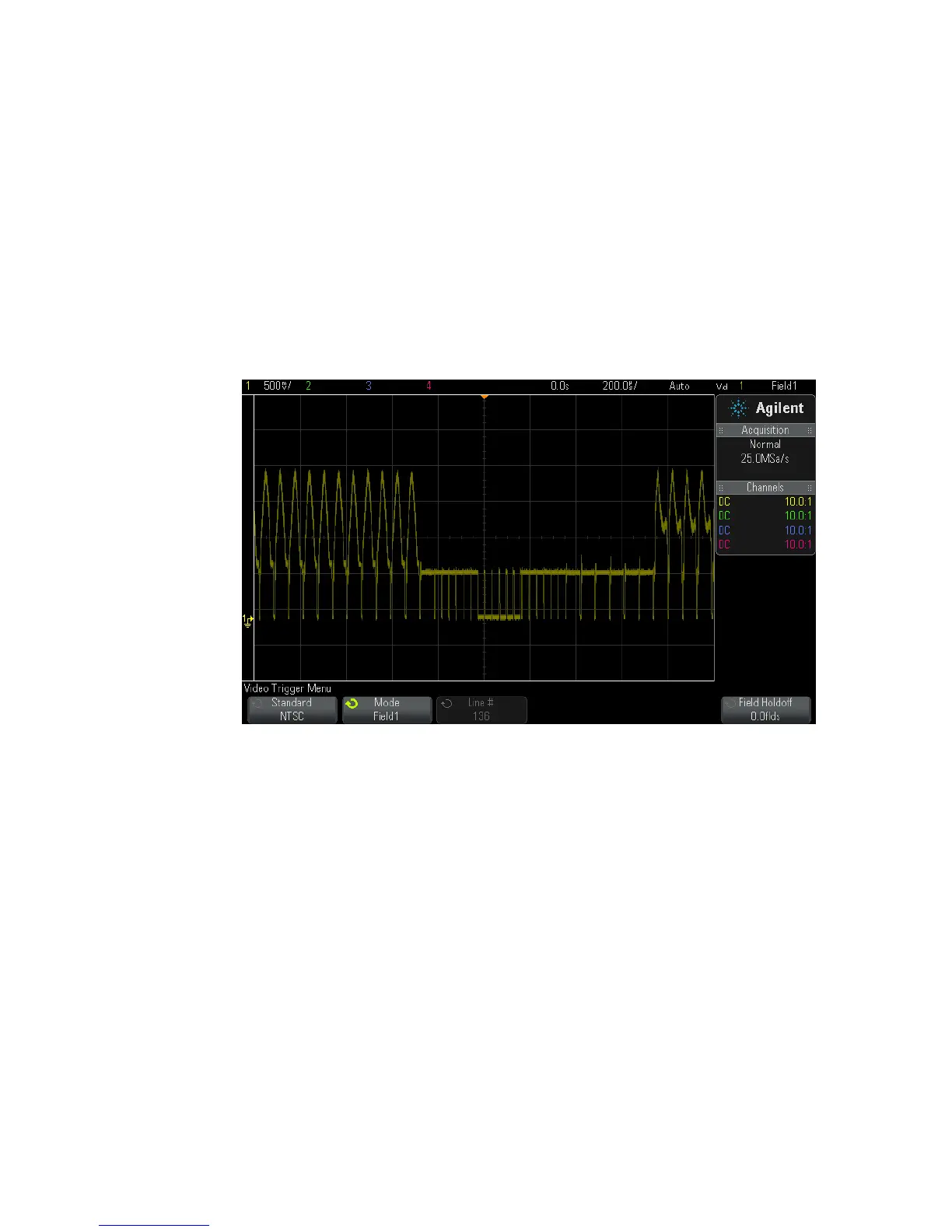

Figure 29 Triggering on Field 1
