Acquisition Control 12
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 199
See Also • "Navigating Segments" on page 199
• "Measurements, Statistics, and Infinite Persistence with Segmented
Memory" on page 199
• "Segmented Memory Re-Arm Time" on page 200
• "Saving Data from Segmented Memory" on page 200
Navigating Segments
1 Press the Current Seg softkey and turn the Entry knob to display the
desired segment along with a time tag indicating the time from the first
trigger event.
You can also navigate segments using the [Navigate] key and controls. See
"To navigate segments" on page 60.
Measurements, Statistics, and Infinite Persistence with Segmented Memory
To perform measurements and view statistical information, press [Meas]
and set up your desired measurements (see Chapter 14, “Measurements,”
starting on page 213). Then, press Analyze Segments. Statistical data will be
accumulated for the measurements you have chosen.

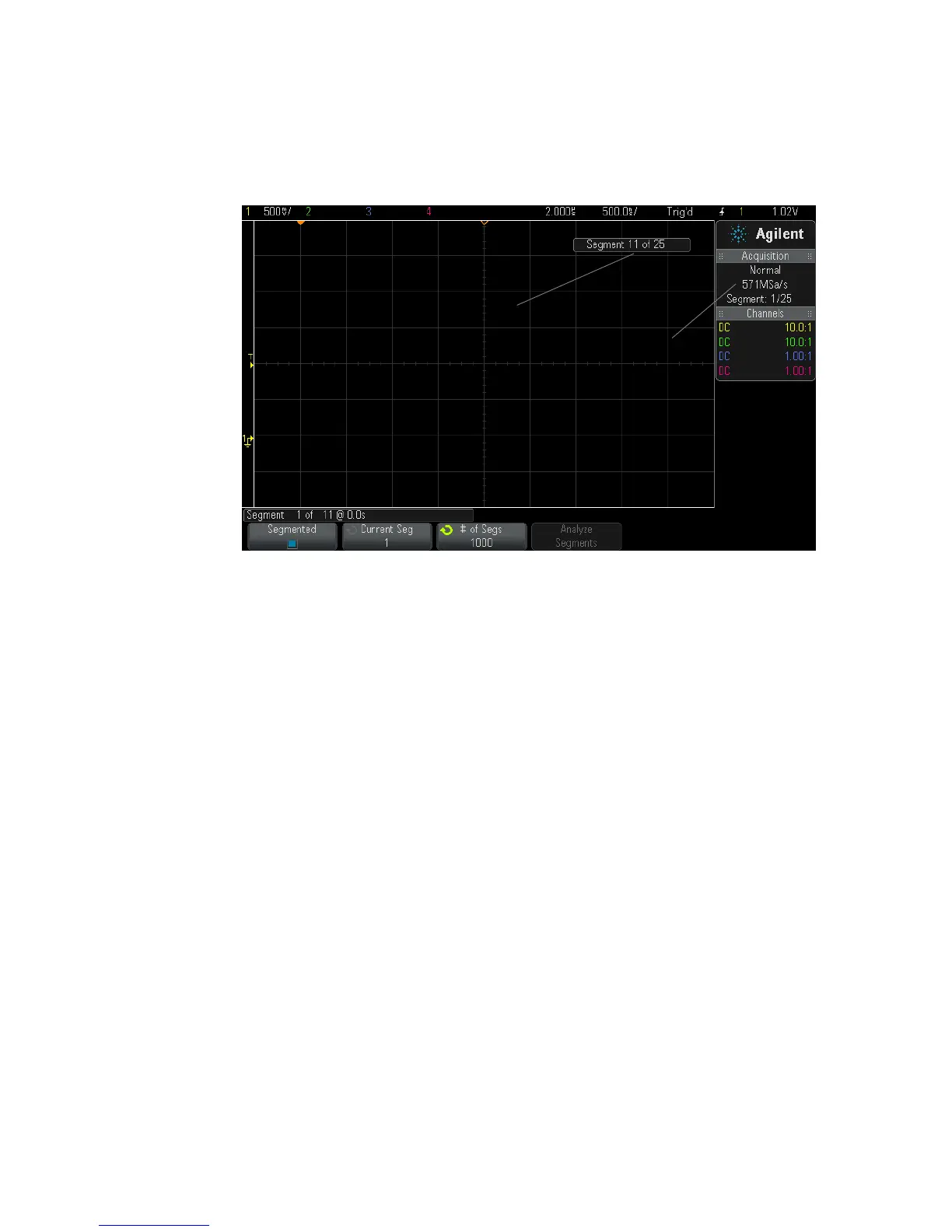

Progress indicator
Sample rate
