Getting Started 1
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 27
Power-On the Oscilloscope
Power
Requirements
Line voltage, frequency, and power:
• ~Line 100- 120 Vac, 50/60/400 Hz
• 100- 240 Vac, 50/60 Hz
• 100 W max
Ventilation
Requirements
The air intake and exhaust areas must be free from obstructions.
Unrestricted air flow is required for proper cooling. Always ensure that
the air intake and exhaust areas are free from obstructions.
The fan draws air in from the left side and bottom of the oscilloscope and
pushes it out behind the oscilloscope.
When using the oscilloscope in a bench- top setting, provide at least 2"
clearance at the sides and 4" (100 mm) clearance above and behind the
oscilloscope for proper cooling.
To power-on the
oscilloscope

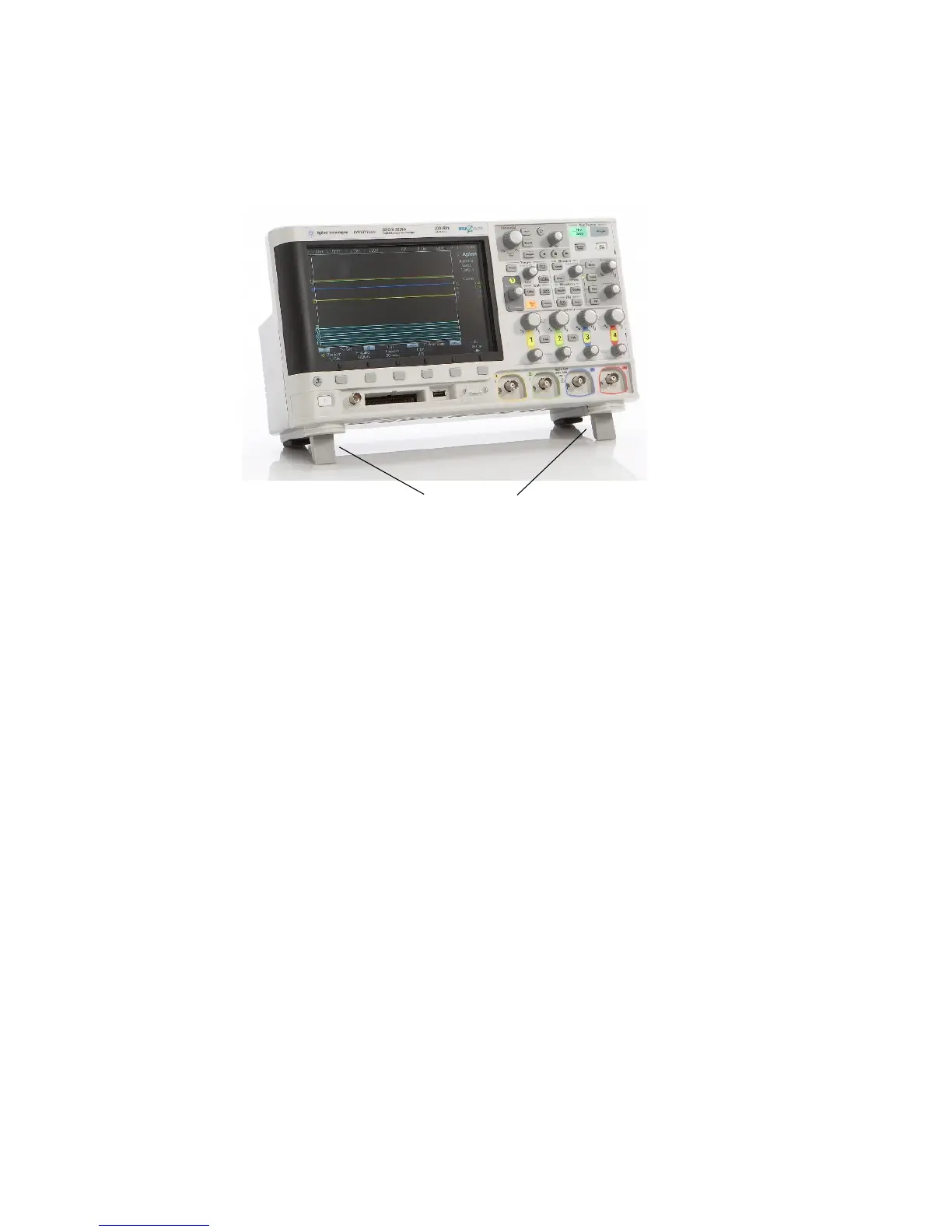

1 Connect the power cord to the rear of the oscilloscope, then to a
suitable AC voltage source. Route the power cord so the oscilloscope's
feet and legs do not pinch the cord.
