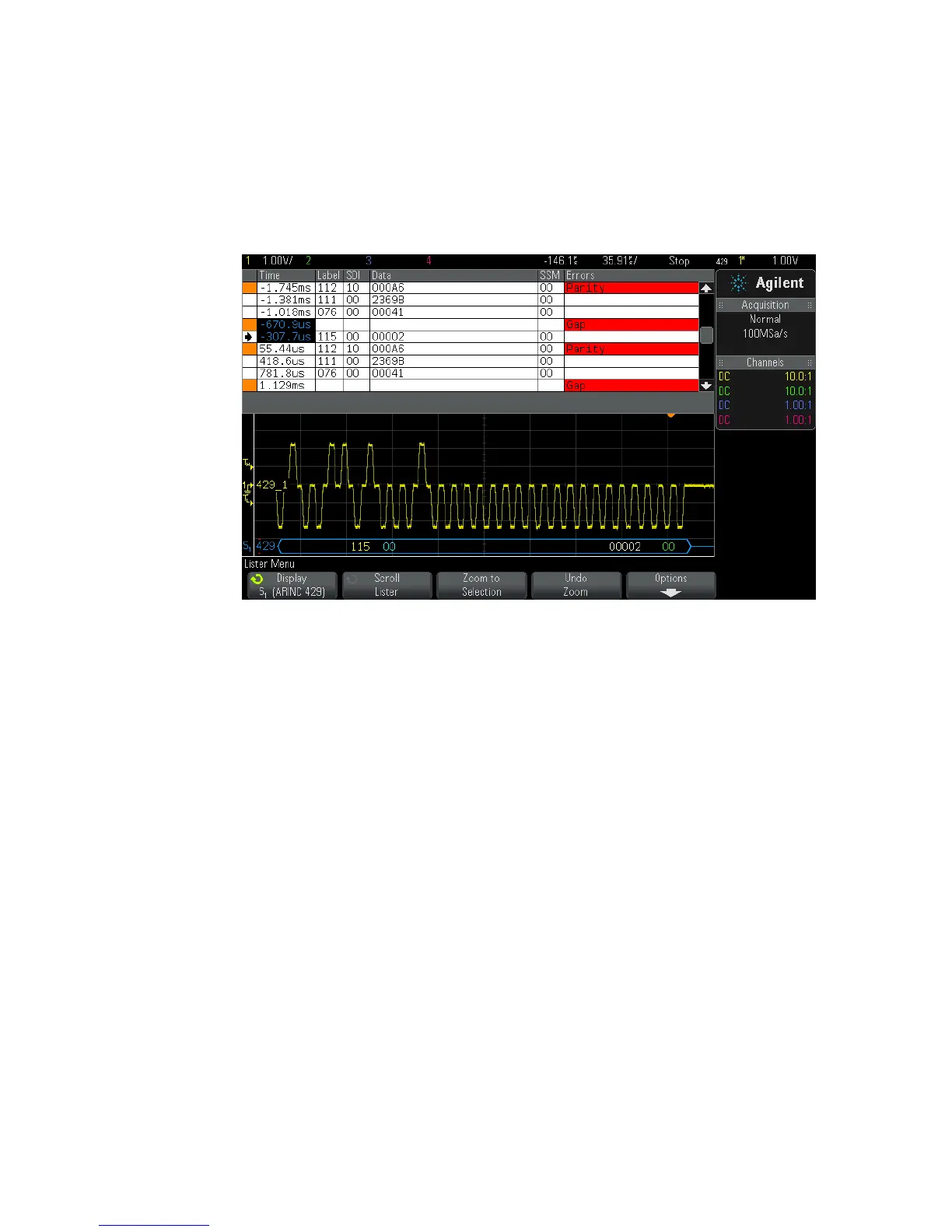

Interpreting ARINC 429 Lister Data
In addition to the standard Time column, the ARINC 429 Lister contains
these columns:
• Label — the 5- bit label value in octal format.
• SDI — the bit values (if included in the word decode format).
• Data — the data value in binary or hex, depending on the base setting.
• SSM — the bit values (if included in the word decode format).
• Errors — highlighted in red. Errors can be Parity, Word, or Gap.
Aliased data is highlighted in pink. When this happens, decrease the
horizontal time/div setting and run again.
Searching for ARINC 429 Data in the Lister
The oscilloscope's search capability lets you search for (and mark) certain
types of ARINC 429 data in the Lister. You can use the [Navigate] key and
controls to navigate through the marked rows.
1 With ARINC 429 selected as the serial decode mode, press [Search].
