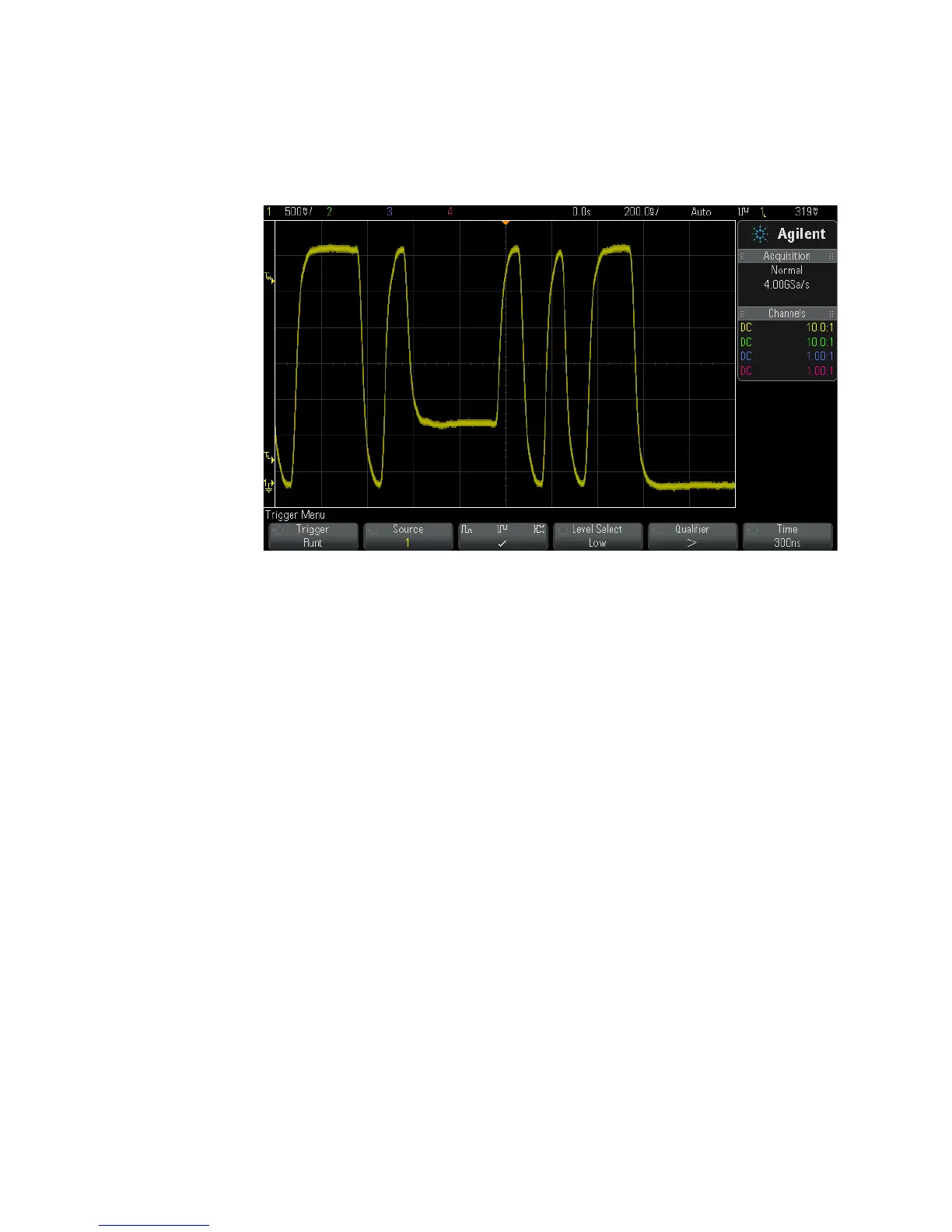

Triggers 10
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 159
3 Press the Source softkey, and turn the Entry knob to select the input
channel source.
4 Press the Positive, Negative, or Either Runt Pulse softkey to toggle between
pulse types.
5 Press the Level Select softkey to select High; then, turn the Trigger Level
knob to adjust the high level.
6 Press the Level Select softkey to select Low; then, turn the Trigger Level
knob to adjust the low level.
You can also push the Trigger Level knob to toggle between High and
Low selection.
7 Press the Qualifier softkey to toggle between "less than", "greater than",
or None.
This lets you specify that a runt pulse be less than or greater than a
certain width.
8 If you selected the "less than" or "greater than" Qualifier, press the Time
softkey; then, turn the Entry knob to select the time.
