Triggers 10
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 163

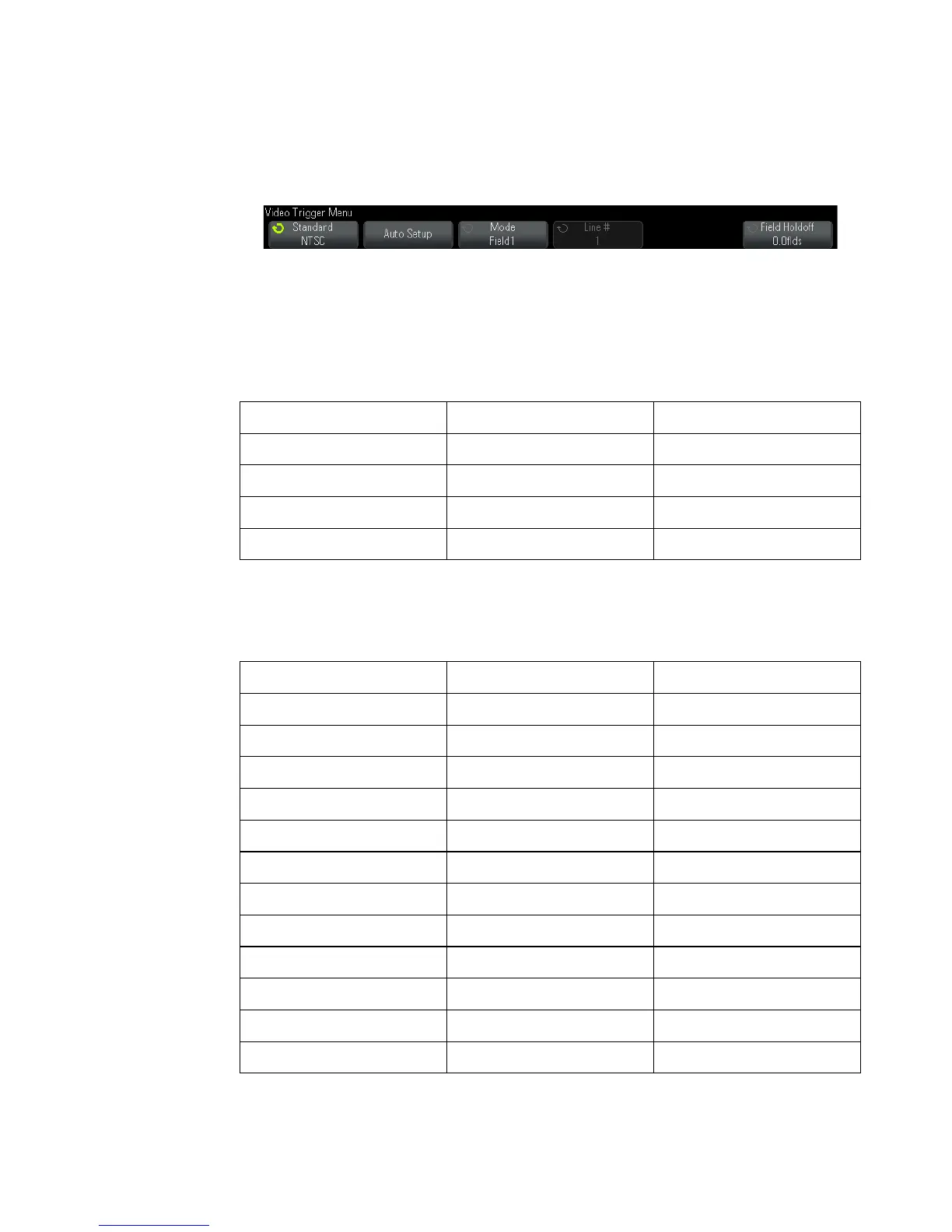

6 In the Video Trigger Menu, press the Standard softkey to set the video
standard.
The oscilloscope supports triggering on the following television (TV) and
video standards.
With the DSOX3VID extended video triggering license, the oscilloscope
additionally supports these standards:
Standard Type Sync Pulse
NTSC Interlaced Bi-level
PAL Interlaced Bi-level
PAL-M Interlaced Bi-level
SECAM Interlaced Bi-level
Standard Type Sync Pulse
Generic Interlaced/Progressive Bi-level/Tri-level
EDTV 480p/60 Progressive Bi-level
EDTV 567p/50 Progressive Bi-level
HDTV 720p/50 Progressive Tri-level
HDTV 720p/60 Progressive Tri-level
HDTV 1080p/24 Progressive Tri-level
HDTV 1080p/25 Progressive Tri-level
HDTV 1080p/30 Progressive Tri-level
HDTV 1080p/50 Progressive Tri-level
HDTV 1080p/60 Progressive Tri-level
HDTV 1080i/50 Interlaced Tri-level
HDTV 1080i/60 Interlaced Tri-level
