374 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
24 I2C/SPI Triggering and Serial Decode

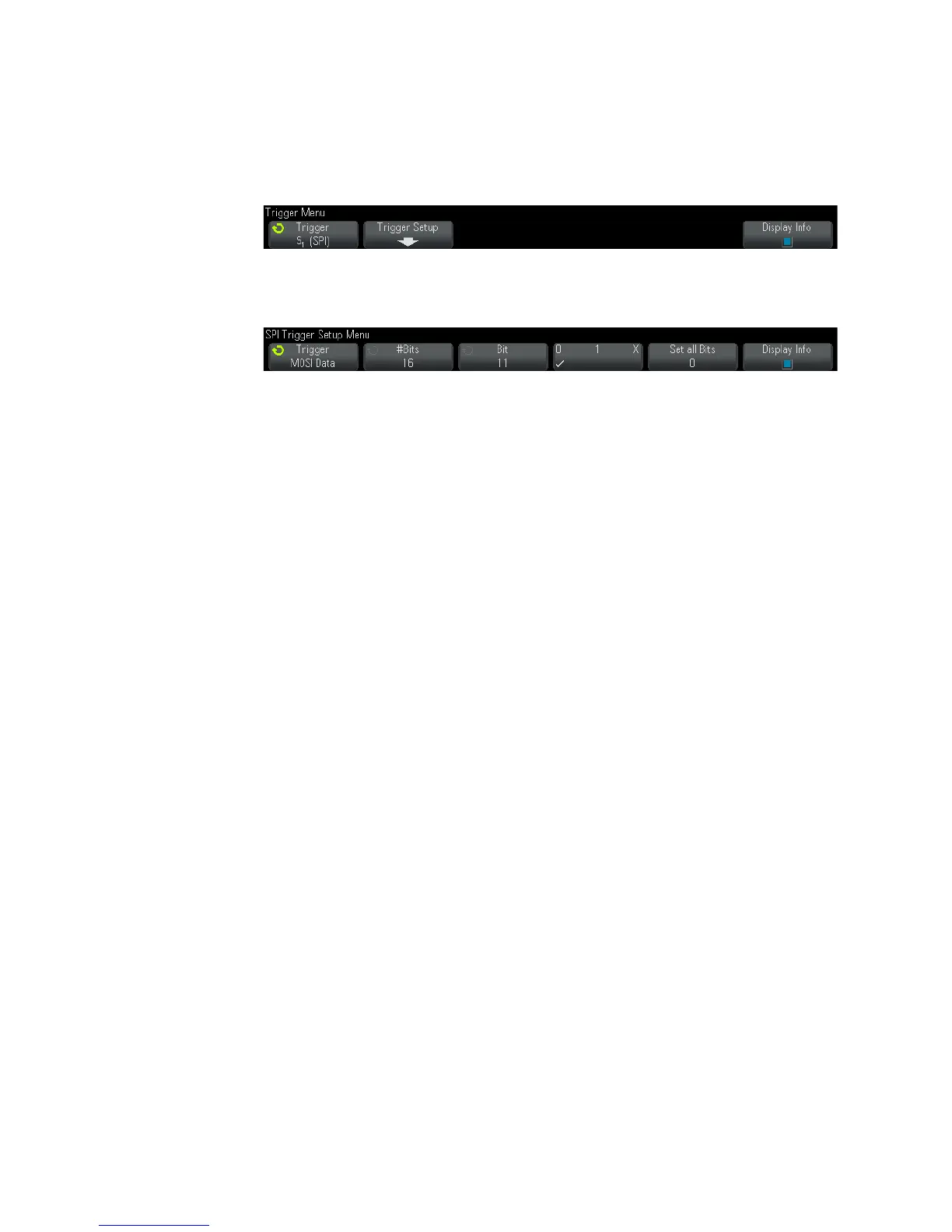

3 Press the Trigger Setup softkey to open the SPI Trigger Setup Menu.
4 Press the Trigger softkey; then, turn the Entry knob to select the trigger
condition:
• Master-Out, Slave-In (MOSI) Data — for triggering on the MOSI data
signal.
• Master-In, Slave-Out (MISO) Data — for triggering on the MISO data
signal.
5 Press the #Bits softkey, and turn the Entry knob to set the number of
bits (#Bits) in the serial data string.
The number of bits in the string can be set anywhere from 4 bits to 64
bits. The data values for the serial string are displayed in the
MOSI/MISO Data string in the waveform area.
6 For each bit in the MOSI/MISO Data string:
a Press the Bit softkey; then, turn the Entry knob to select the bit
location.
As you rotate the Entry knob, the bit is highlighted in the Data
string shown in the waveform area.
b Press the 0 1 X softkey to set the bit selected in the Bit softkey to 0
(low), 1 (high), or X (don't care).
