10 Triggers
Edge then Edge Trigger

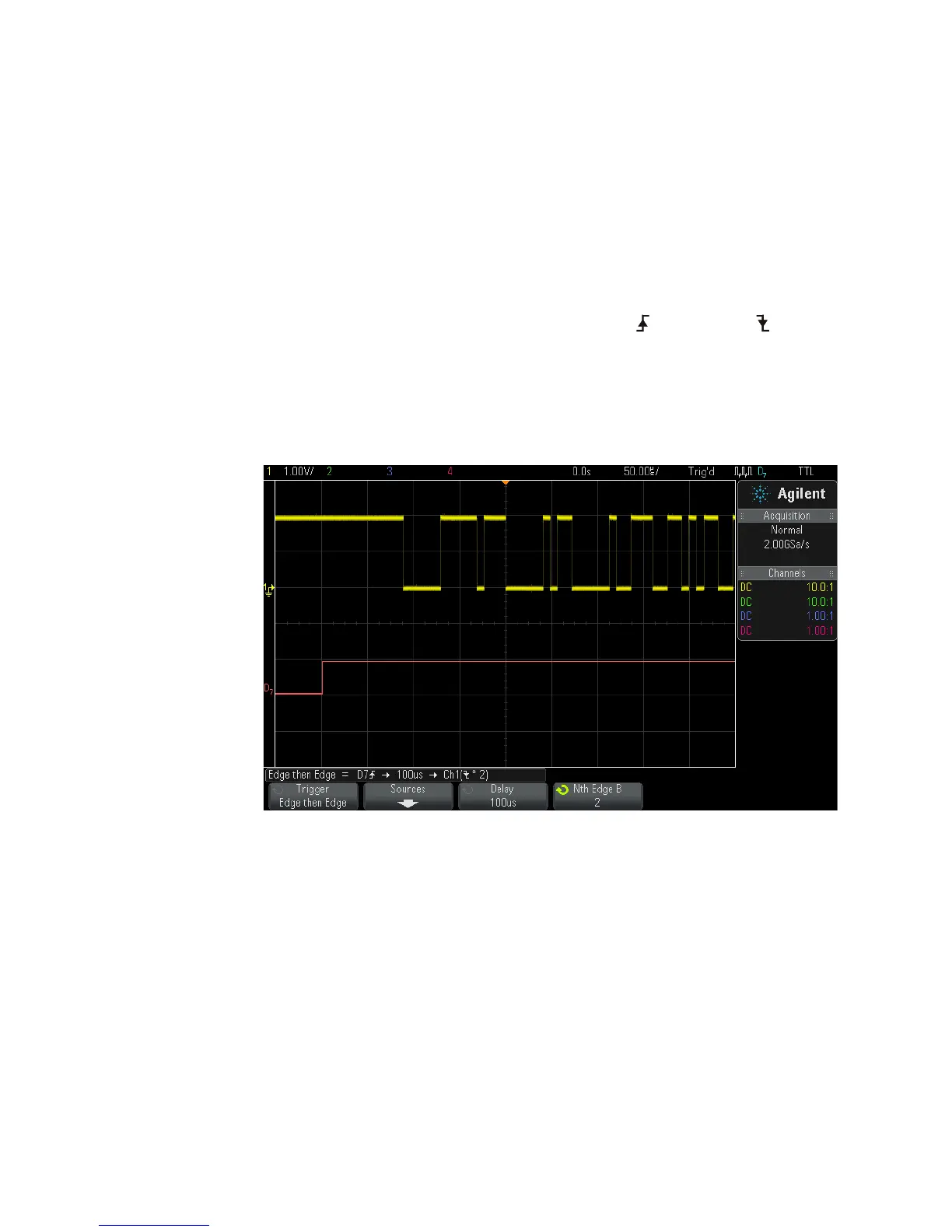

The Edge then Edge trigger mode triggers when the Nth edge occurs after
an arming edge and a delay period.
The arm and trigger edges can be specified as (Rising) or (Falling)
edges on analog or digital channels.
1 Press the [Trigger] key.
2 In the Trigger Menu, press the Trigger softkey; then, turn the Entry knob
to select Edge then Edge.
3 Press the Sources softkey.
4 In the Edge then edge Sources Menu:
To Next Page
