Agilent Technologies InfiniiVision 3000 - Waveform Generator

252 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
16 Waveform Generator
The waveform generator output is automatically disabled if excessive
voltage is applied to the Gen Out BNC.

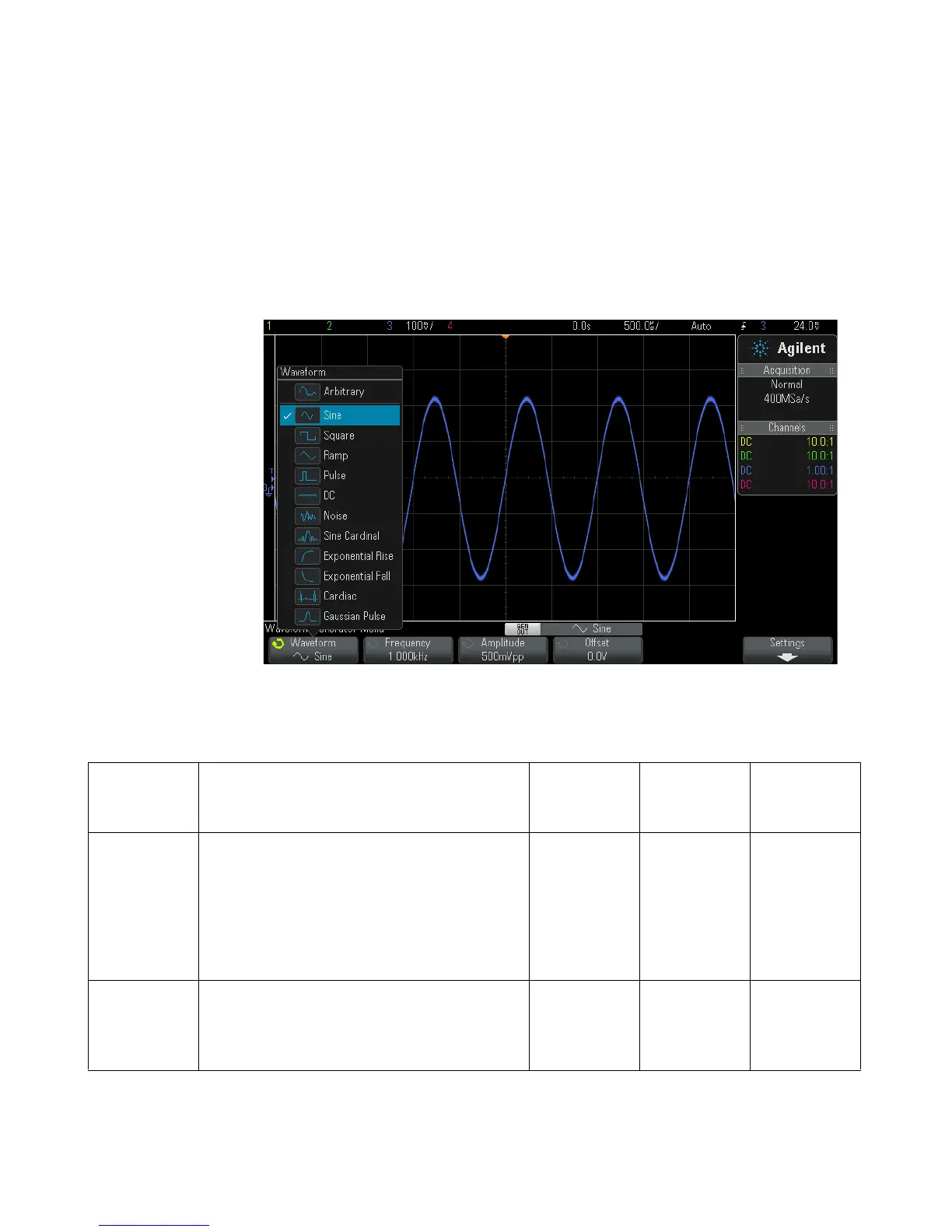

2 In the Waveform Generator Menu, press the Waveform softkey and turn
the Entry knob to select the waveform type.
3 Depending on the selected waveform type, use the remaining softkeys
and the Entry knob to set the waveform's characteristics.
Waveform
Ty pe
Characteristics Frequency
Range
Max.
Amplitude
(High-Z)
1
Offset
(High-Z)
1
Arbitrary Use the Frequency/Frequency
Fine/Period/Period Fine, Amplitude/High-Level,
and Offset/Low-Level softkeys to set the arbitrary
waveform signal parameters.
Use the Edit Waveform softkey to define the
arbitrary waveform shape. See "To edit arbitrary
waveforms" on page 255.
100 mHz to
12 MHz
20 mVpp to
5Vpp
±2.50 V
Sine Use the Frequency/Frequency
Fine/Period/Period Fine, Amplitude/High-Level,
and Offset/Low-Level softkeys to set the sine
signal parameters.
100 mHz to
20 MHz
20 mVpp to
5Vpp
±2.50 V
