92 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
4 Math Waveforms
Base 10 Exponential
The Base 10 Exponential (10^x) function (available with the
DSOX3ADVMATH advanced math measurements license) performs a
transform of the input source.
See Also • "Exponential" on page 91
Math Filters
With the DSOX3ADVMATH advanced math measurements license, you can
use math filters to create a waveform that is the result of a high- or
low- pass filter on an analog input channel or on the result of an
arithmetic operation.
• "High Pass and Low Pass Filter" on page 93

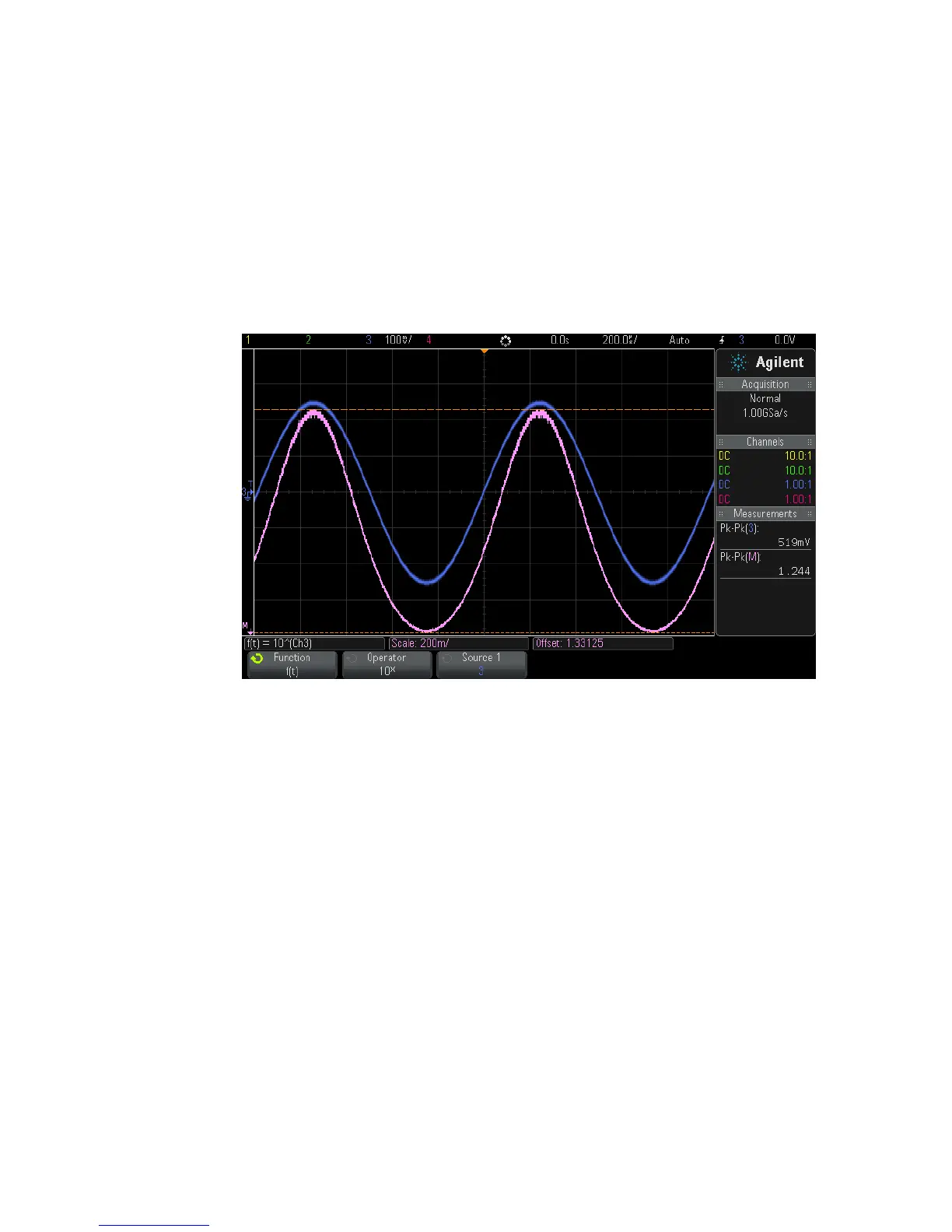

Figure 14 Example of Base 10 Exponential
