Waveform Generator 16
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 257
The new waveform is created and the Edit Waveform Points menu is
opened. See "Editing Existing Arbitrary Waveforms" on page 257.
Note that you can also create a new arbitrary waveform by capturing
another waveform. See "Capturing Other Waveforms to the Arbitrary
Waveform" on page 258.
Editing Existing Arbitrary Waveforms

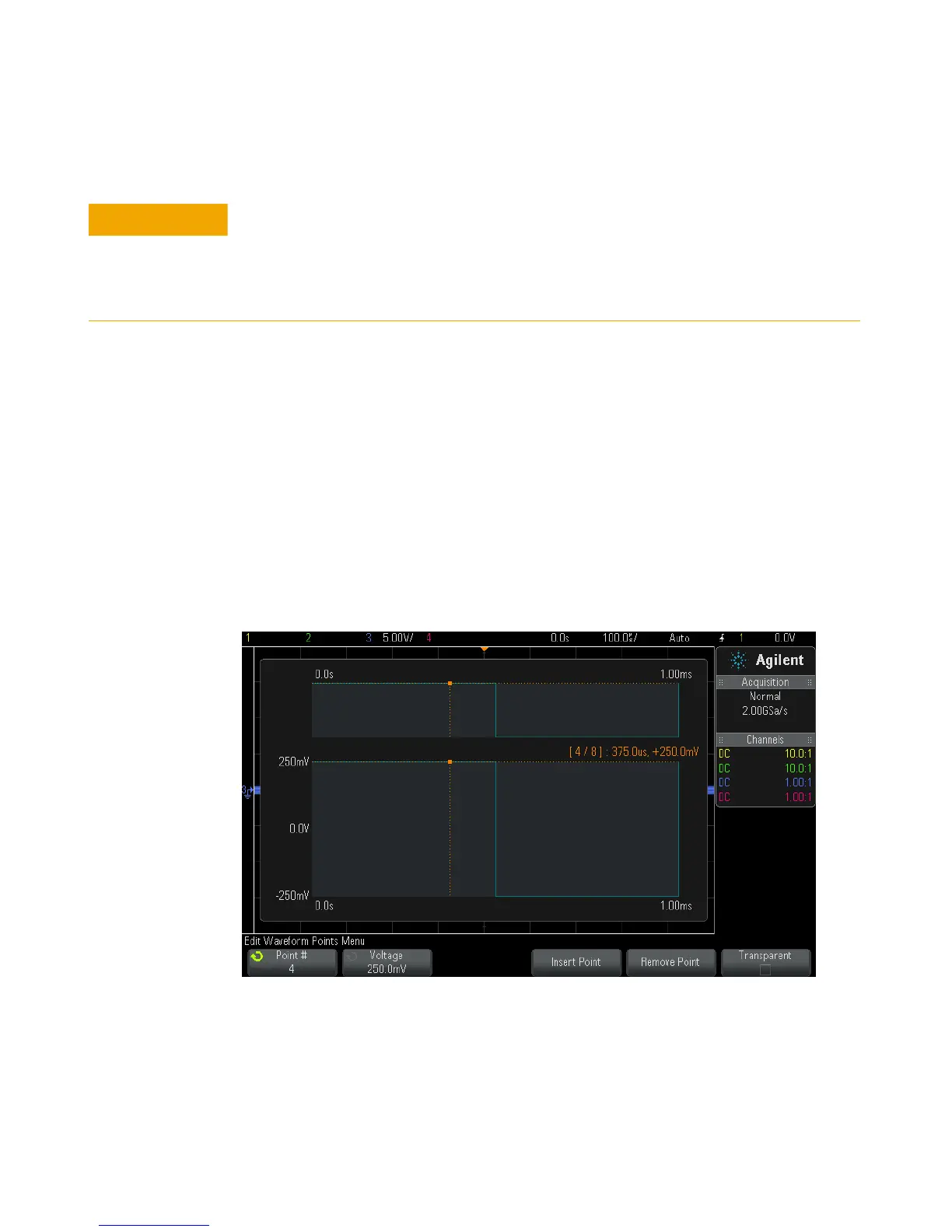

The Edit Waveform Points Menu is opened by pressing Edit Existing in the
Edit Waveform Menu or by pressing Apply & Edit when creating a new
arbitrary waveform.
To specify the voltage values of points:
When you create a new arbitrary waveform, the existing arbitrary waveform definition
is overwritten. Note that you can use the [Save/Recall] key and menu to save
arbitrary waveforms to one of four internal storage locations or to a USB storage
device, and you can recall them later. See "To save arbitrary waveforms" on page 272
and "To recall arbitrary waveforms" on page 275.
