Measurements 14
Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide 225
• x
i
= the ith measurement result.
• x = the mean.
Ratio
The Ratio measurement displays the ratio of the AC RMS voltages of two
sources, expressed in dB. Press the Settings softkey to select the source
channels for the measurement.
Time Measurements

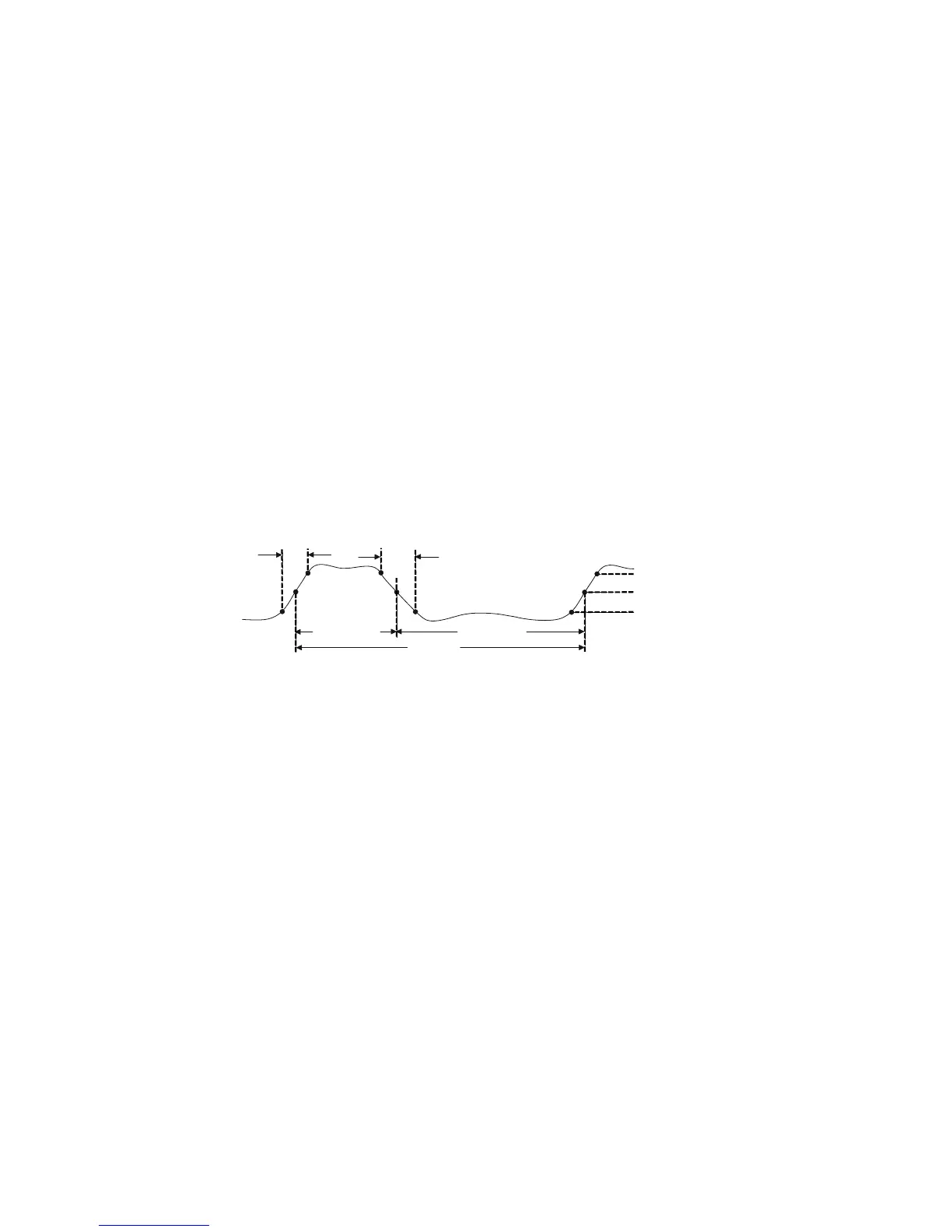

The following figure shows time measurement points.
The default lower, middle, and upper measurement thresholds are 10%,
50%, and 90% between Top and Base values. See "Measurement
Thresholds" on page 234 for other percentage threshold and absolute value
threshold settings.
• "Period" on page 226
• "Frequency" on page 226
• "Counter" on page 227
• "+ Width" on page 228
• "– Width" on page 228
• "Burst Width" on page 228
• "Duty Cycle" on page 228
• "Rise Time" on page 229
• "Fall Time" on page 229
• "Delay" on page 229
Rise Time
+ Width
Fall Time
- Width
Period
Middle
Upper
Thresholds
Lower
