88 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
4 Math Waveforms
Top, Rectangular, and Blackman- Harris. For more information on leakage,
see Agilent Application Note 243, The Fundamentals of Signal Analysis at
"http://cp.literature.agilent.com/litweb/pdf/5952-8898E.pdf."
Square Root
Square root (√) calculates the square root of the selected source.
Where the transform is undefined for a particular input, holes (zero
values) appear in the function output.
See Also • "To perform transforms or filters on an arithmetic operation" on
page 73
• "Units for Math Waveforms" on page 74
Ax + B
The Ax + B function (available with the DSOX3ADVMATH advanced math
measurements license) lets you apply a gain and offset to an existing
input source.

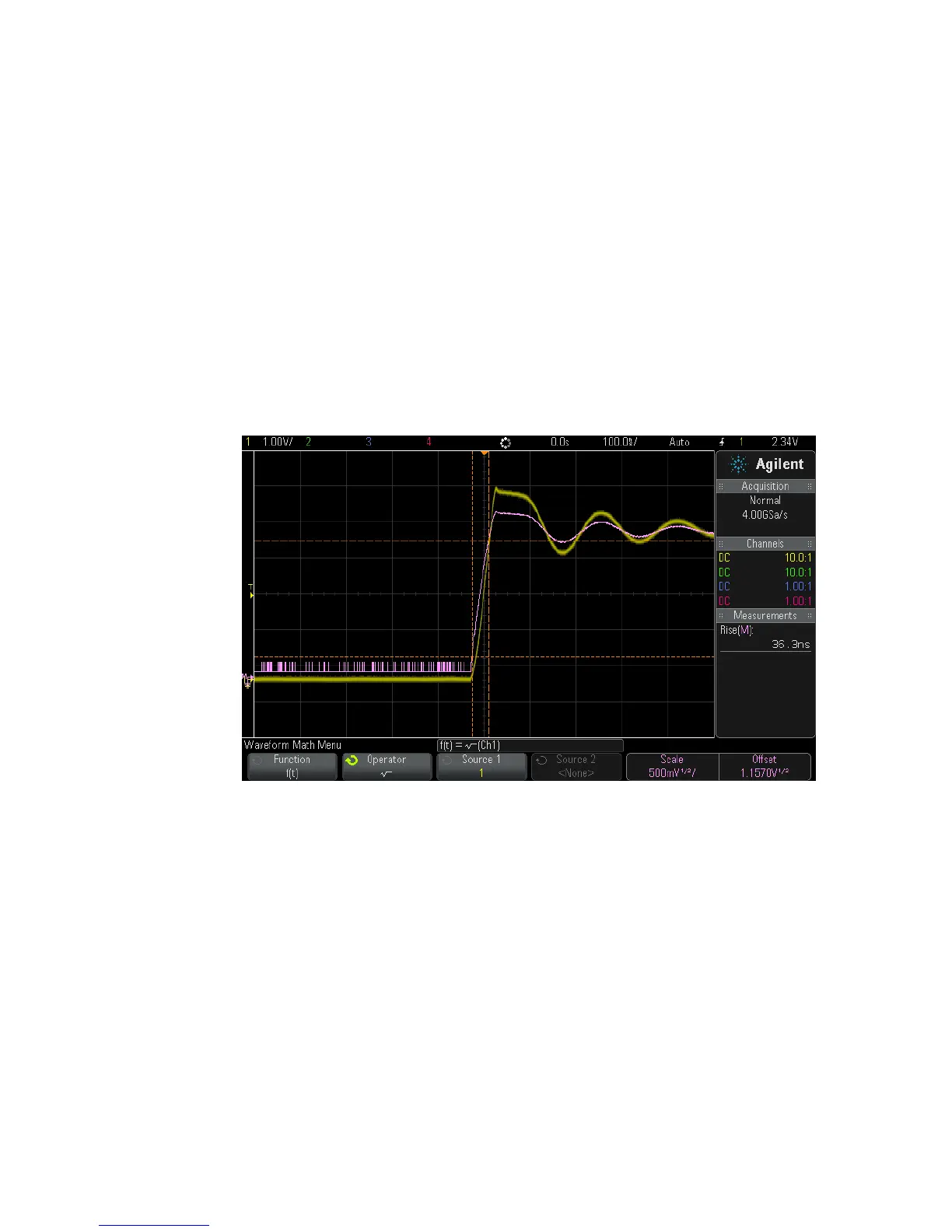

Figure 10 Example of √ (Square Root)
