LIN Serial Decode
To set up the oscilloscope to capture LIN signals, see "Setup for LIN
Signals" on page 343.
To set up LIN serial decode:

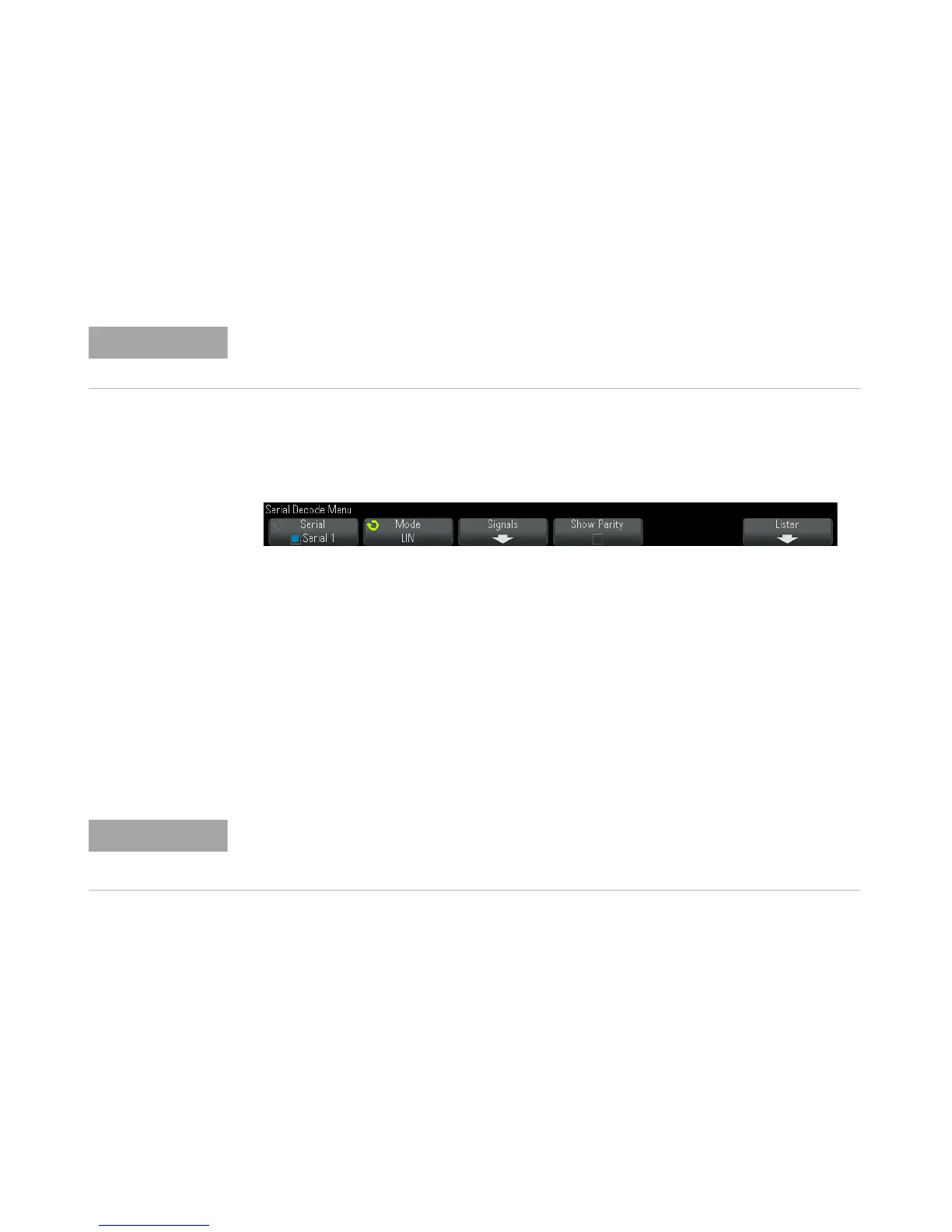

1 Press [Serial] to display the Serial Decode Menu.
2 Choose whether to include the parity bits in the identifier field.
a If you want to mask the upper two parity bits, ensure that the box
under the Show Parity softkey is not selected.
b If you want to include the parity bits in the identifier field, ensure
that the box under the Show Parity softkey is selected.
3 If the decode line does not appear on the display, press the [Serial] key
to turn it on.
4 If the oscilloscope is stopped, press the [Run/Stop] key to acquire and
decode data.
You can use the horizontal Zoom window for easier navigation of the
decoded data.
See Also • "Interpreting LIN Decode" on page 348
• "Interpreting LIN Lister Data" on page 349
• "Searching for LIN Data in the Lister" on page 350
For LIN triggering setup see "LIN Triggering" on page 345.
If the setup does not produce a stable trigger, the LIN signal may be slow enough that the
oscilloscope is AutoTriggering. Press the [Mode/Coupling] key, then press the Mode
softkey to set the trigger mode from Auto to Normal.
