156 Agilent InfiniiVision 3000 X-Series Oscilloscopes User's Guide
10 Triggers

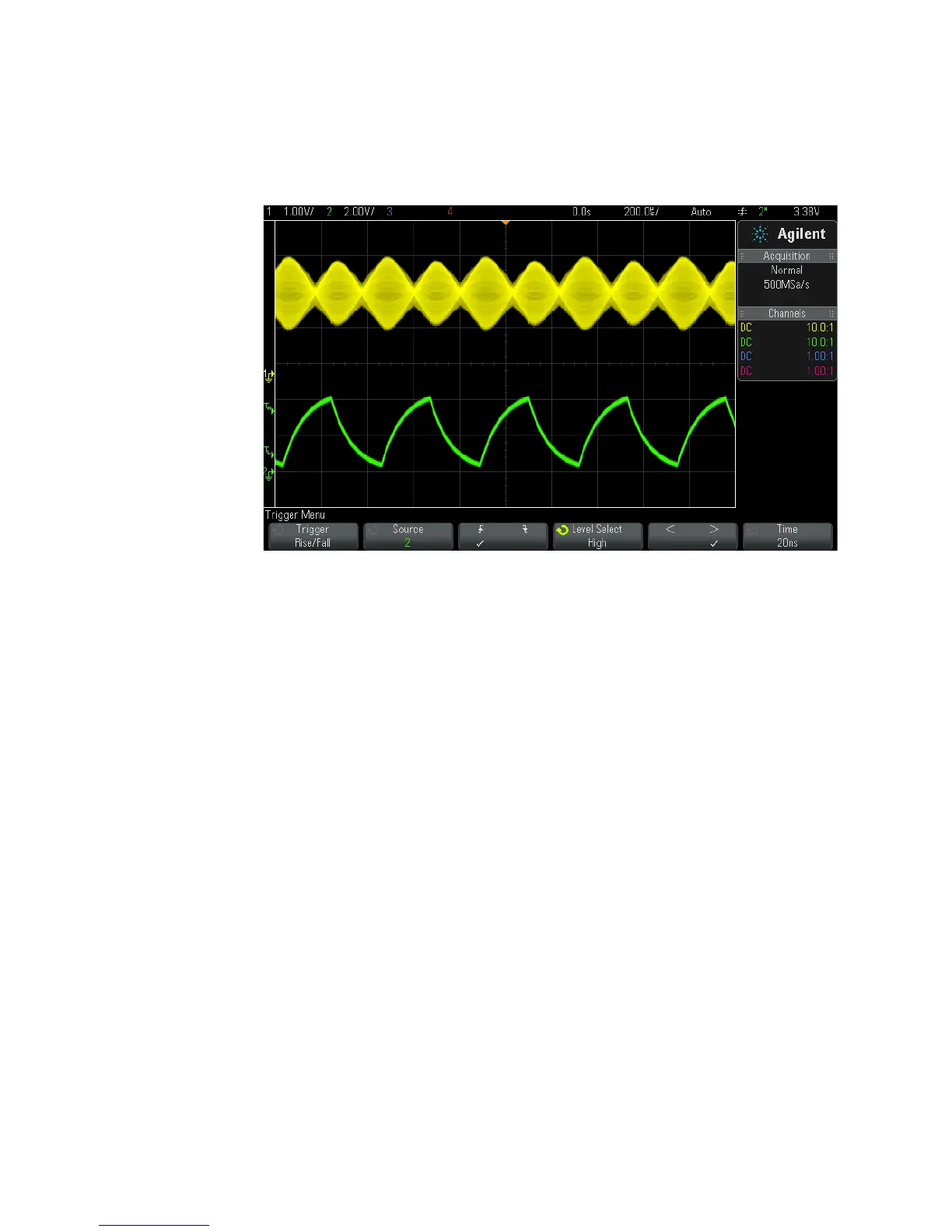

3 Press the Source softkey, and turn the Entry knob to select the input
channel source.
4 Press the Rising Edge or Falling Edge softkey to toggle between edge types.
5 Press the Level Select softkey to select High; then, turn the Trigger Level
knob to adjust the high level.
6 Press the Level Select softkey to select Low; then, turn the Trigger Level
knob to adjust the low level.
You can also push the Trigger Level knob to toggle between High and
Low selection.
7 Press the Qualifier softkey to toggle between "greater than" or "less than".
8 Press the Time softkey, and turn the Entry knob to select the time.
Nth Edge Burst Trigger
The Nth Edge Burst trigger lets you trigger on the Nth edge of a burst that
occurs after an idle time.
