4 Math Waveforms
The divide by zero case places holes (that is, zero values) in the output
waveform.
Multiply is useful for seeing power relationships when one of the channels
is proportional to the current.
The Divide math function is available with Option ADVMATH or the
DSOX3ADVMATH upgrade license.
See Also • "Units for Math Waveforms" on page 74
Math Transforms
Math transforms perform a transform function (like differentiate, integrate,
FFT, or square root) on an analog input channel or on the result of an
arithmetic operation.
• "Differentiate" on page 77
• "Integrate" on page 78

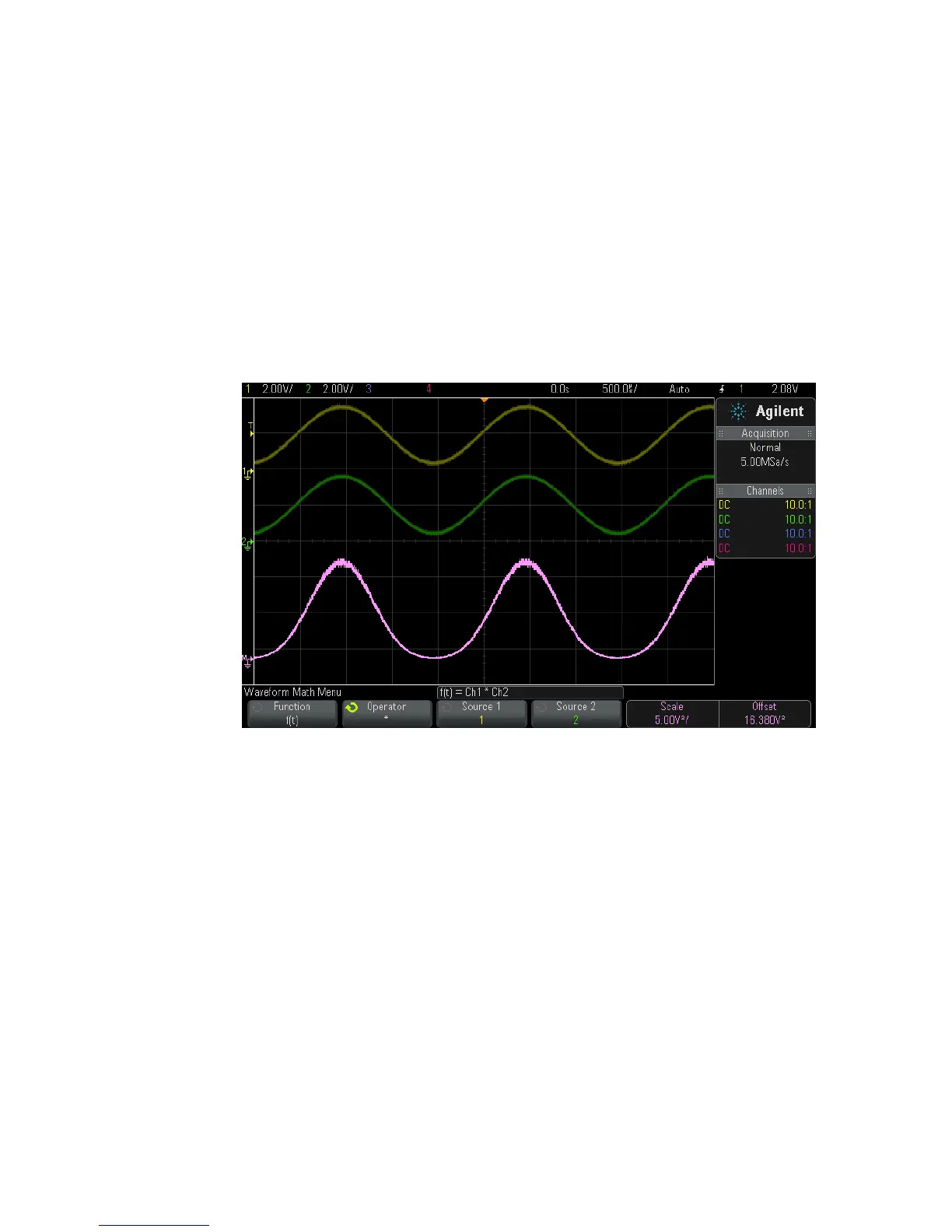

Figure 6 Example of Multiply Channel 1 by Channel 2
