PL-GPC 220 User Manual 35
Using the Module
4
The Graphical User Interface

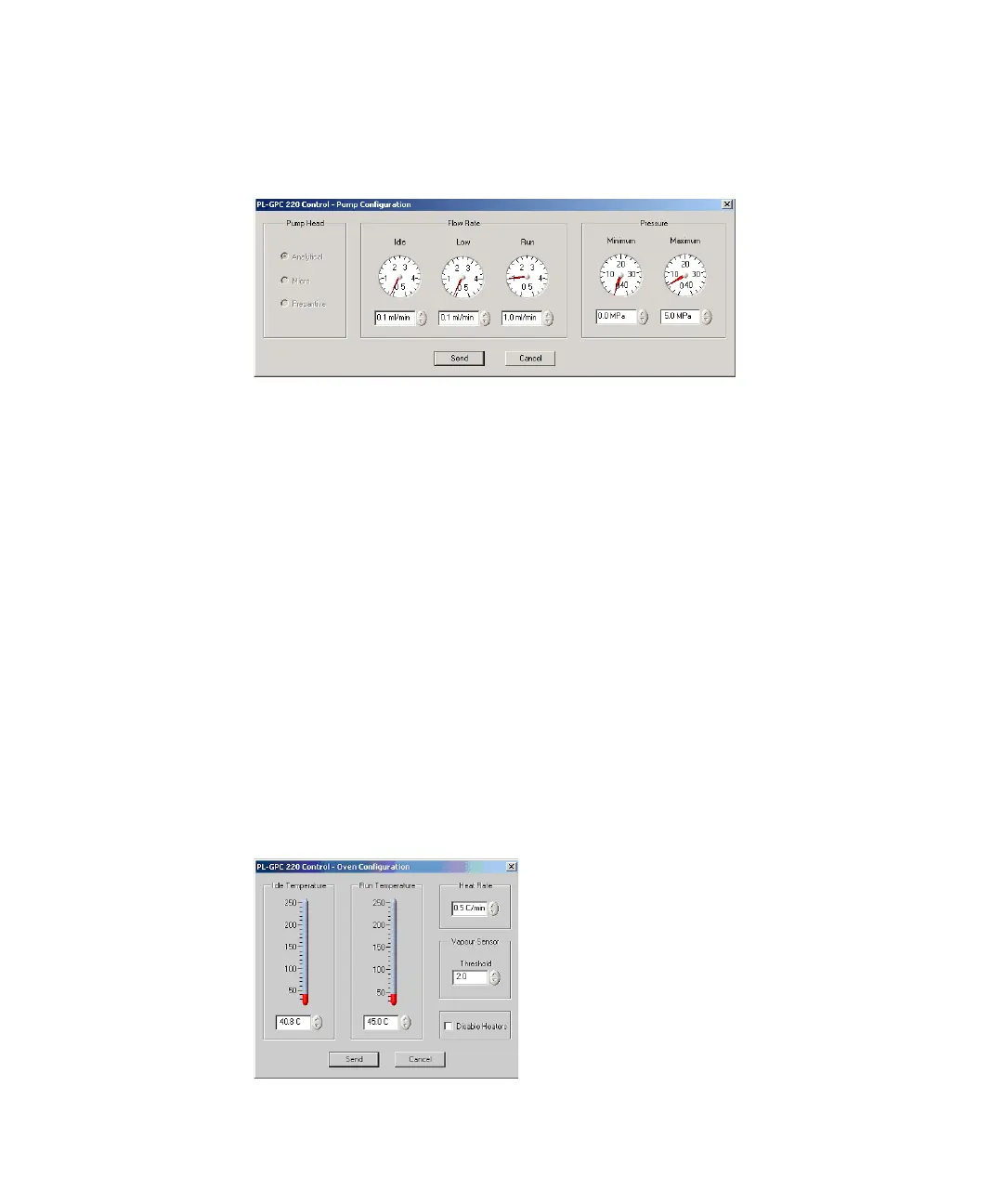

Pump Configuration Editor
There are following Flow Rate settings:
•Idle – is the pump flow rate adopted while the system is operated in the
IDLE mode.
•Low – is the pump flow adopted while the system is changing temperature.
•Run – is the flow rate used when the system is operated in the RUN mode.
Adjustment of the settings can be achieved by: clicking and dragging the
needles of the dials, using the up or down arrows or just simply typing the
required values in the edit boxes. To action a change made to the
configuration, the values as displayed in the configuration editor, must be
downloaded to the instrument by clicking on the SEND button. Clicking the
Cancel button will close the dialogue without making changes to the control
parameters.
The programmed minimum and maximum pressure settings enable pressure
limits within which the pump can operate. If the recorded pump pressure
(system pressure) falls outside these limits, the instrument will default to
error conditions.
Oven Configuration Editor
