4 Using the Module

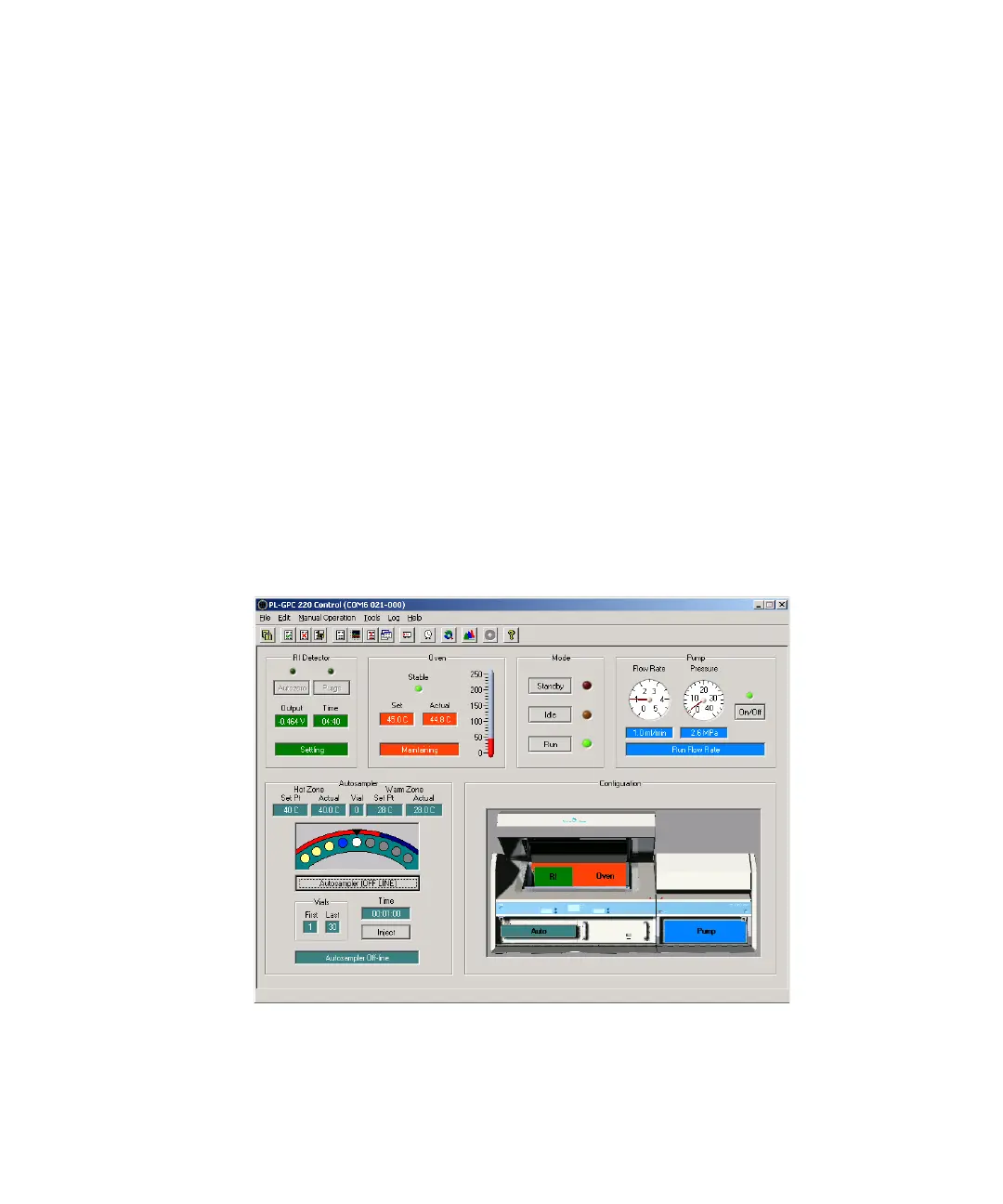

The Graphical User Interface
Autosampler
• Autosampler (offline/online) – This button is used to start and stop the
autosampler.
• Offline – indicates that the autosampler is not in use.
• Online – indicates that the autosampler is in use and running using the
parameters set up in autosampler configuration screen.
• Inject – this button is used to manually change the injection valve position,
see “Injection Sequence” on page 17 for the description of positions. This
tab also shows the position of the injection valve during the running
sequence.
Configuring the Controlled Modules - Configuration Editors
To change any of the set conditions, simply click on the coloured section of the
instrument graphic to open the configuration editor for that module.
