44 PL-GPC 220 User Manual
4 Using the Module
The Graphical User Interface
System Monitor

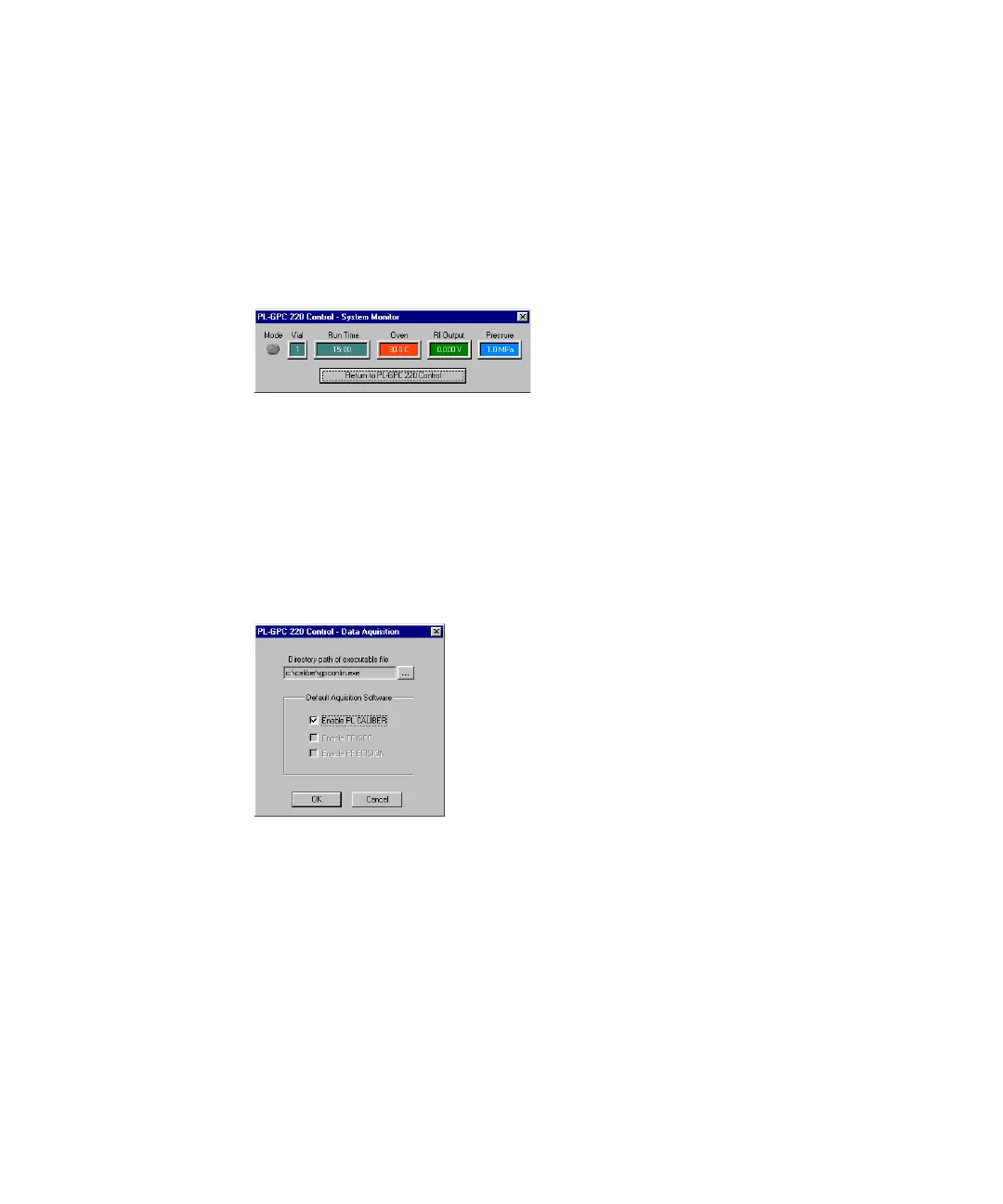

While the system is running, it is often preferential to display the data
acquisition on the computer screen rather than the instrument control. The
System Monitor minimizes the PL-GPC 220 Control to an informative icon,
displaying the important parameters.
Data Acquisition
The Data Acquisition option enables one to program a link from the PL-GPC
220 Control to another program of choice. It is designed to instantly bring up
the data acquisition package, but can be program to run a Windows™ based
executable. For convenience, three data acquisition packages have been
pre-programmed; PL Caliber, TriSEC and Precision Acquire.
Before starting the Data Acquisition shortcut, you must first configure the
path to where the desired program is to be found. Default paths for PL Caliber,
TriSEC and Precision Acquire have been pre-programmed and if these
programs exist in these default locations then the option will be active. In this
case, simply select the appropriate box to launch the required package when
the Start acquisition option is selected. If none of the options are available,
but one is present on the PC, click the browse ... to set the correct path.
