Aiphone IX SERIES User Manual

13
Before Using

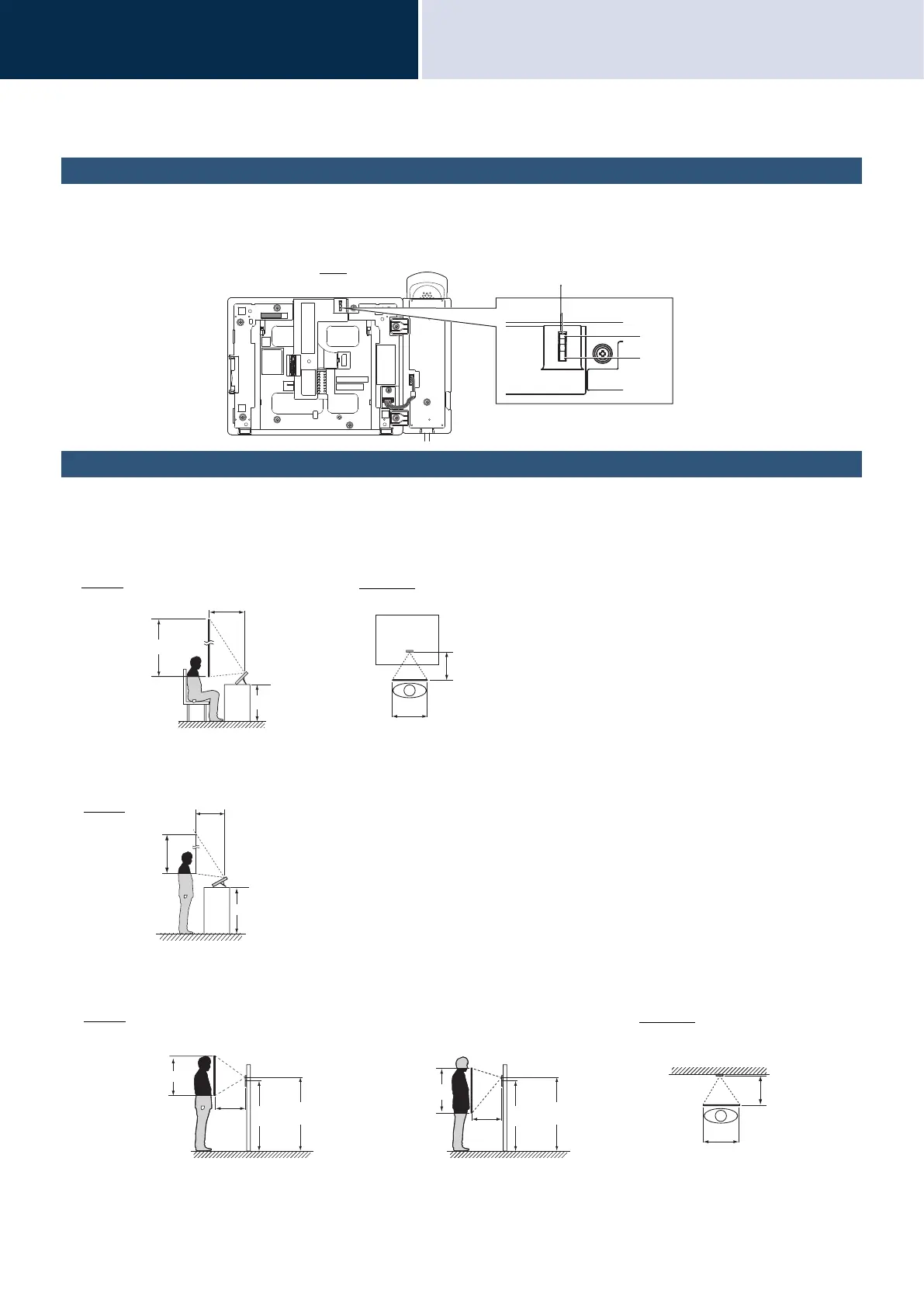

Camera View Range and Mounting Position
2
Camera View Range and Mounting Position
Camera view adjustment
The camera angle can be adjusted downward (0 to -20 degrees) using the camera angle adjustment lever. Set the
angle to the optimal position.
Camera view range
The camera range as illustrated is only an approximate indication and may vary according to the environment.
• Example: Installed on table
Installed on a flat desktop (with desktop stand at 45°, camera angle at the lowest position (-20°))
• Example: installed as a reception station
Installed on a flat desktop (with desktop stand at 30°, camera angle at the lowest position (-20°))
• Example: Installed on a wall
-20°
0°
Camera angle adjustment lever
Rear
460ｍｍ(1'6'')
500ｍｍ(1'7'')
400mm(1'4'')
500ｍｍ(1'7'')
700ｍｍ(2'3'')
1,300mm(4'3'')
900mm(2'11'')
height of desk
Vertical
Horizontal
500ｍｍ(1'7'')
950ｍｍ(3'1")
1,850mm(6'1")
600mm(1'12")
1,250mm(4'1")
height of desk
Vertical
500ｍｍ(1'7'')
460ｍｍ(1'6'')
500
mm
(1'7")
1,200mm(3'11'')
1,550mm(5'1'')
350mm(1'2'')
500
mm
(1'7'')
1,350mm(4'7'')
350mm(1'2")
1,700mm(5'9'')
Vertical
Horizontal
Camera angle 0°
Camera angle -20°
A*
1
B*
2
A*
1
B*
2
*
2
B: Camera position 1,575.5 mm (5' 2'')
*
1
A: Center of device 1,500 mm (4' 11'')

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
