Aiphone IX SERIES User Manual

180
Settings and Adjustments
Station programming
4
Option Input / Relay Output Settings
Relay Output
■ Relay output advanced settings

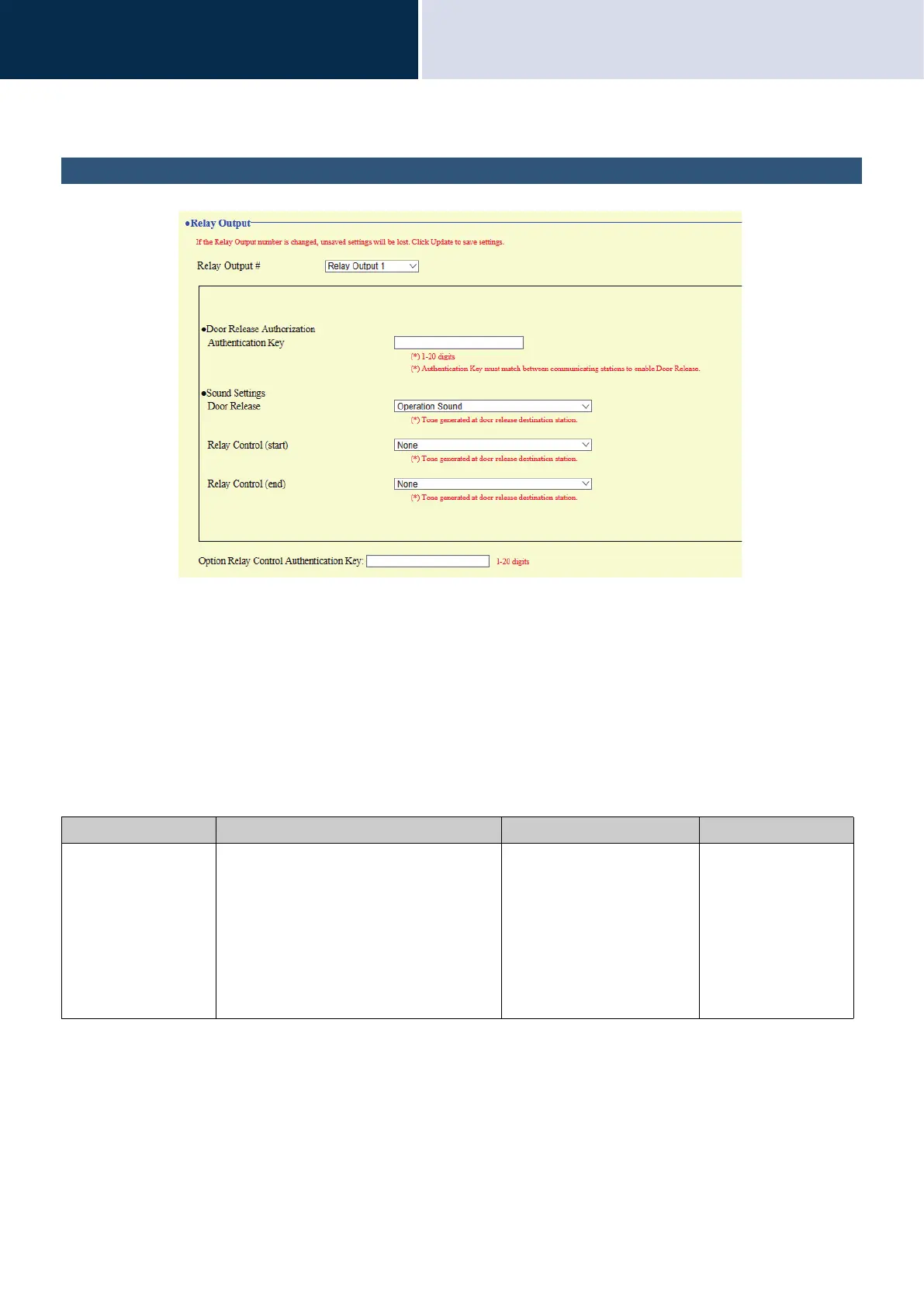

How to configure Relay Output
1. Select the relay output to configure in "Relay Output #."
• The settings of the selected relay output will be displayed.
2. Configure each item.
3. Click [Update].
Entry Description Settings Default values
Authentication Key Set the Authentication Key when "Door
Release" is selected in "Function
(administrator setting)" for releasing the
door that is connected to the station.
When the "Authentication Key" is confirmed,
the relay output will be activated. This will
also be the authentication key used to
release the door using the keypad on IX-
MV7-* or a VoIP phone.
1 - 20 digits -
