Aiphone IX SERIES User Manual

136
Settings and Adjustments
Configuring on the station
4
Relay Output Settings (administrator
privileges only)
Configure settings related to relay output.

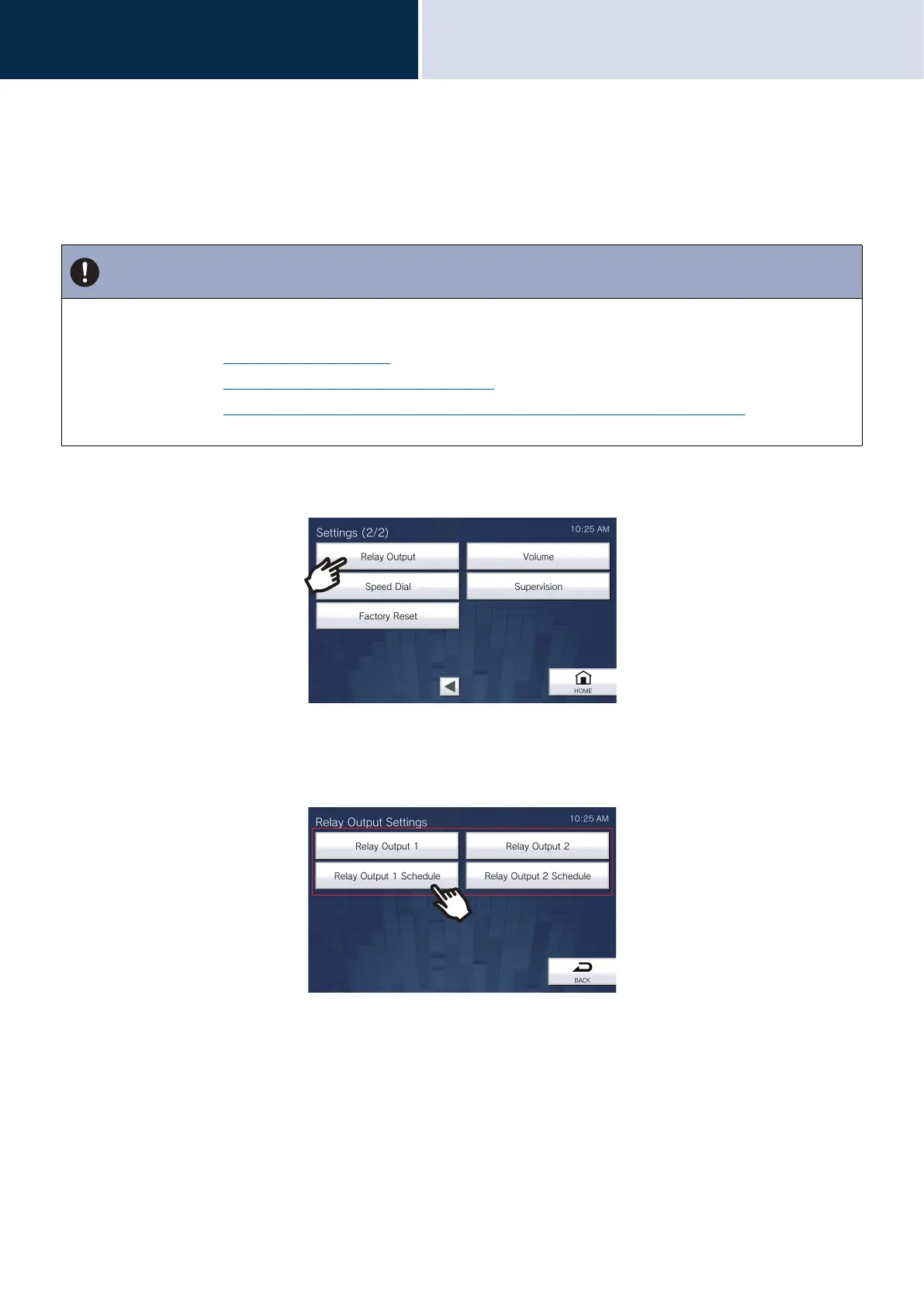

1. On the Settings(2/2) screen, tap [Relay Output].
• The Relay Output Settings screen will be shown.
2. Configure the settings.
Important
• The four relay output methods are shown below. Redundant configuration is possible for each output terminal. If multiple
commands occur during a single relay output, the latest command will take priority.
– Function selected in
“FUNCTION (→page 137)”
– Function selected in
“OPTION RELAY CONTROL (→page 137)”
– Function selected in
“Relay Output 1 Schedule Settings, Relay Output 2 Schedule Settings (→page 138)”
– CGI control
