Aiphone IX SERIES User Manual

139
Settings and Adjustments
Configuring on the station
4
How to configure the Status Output

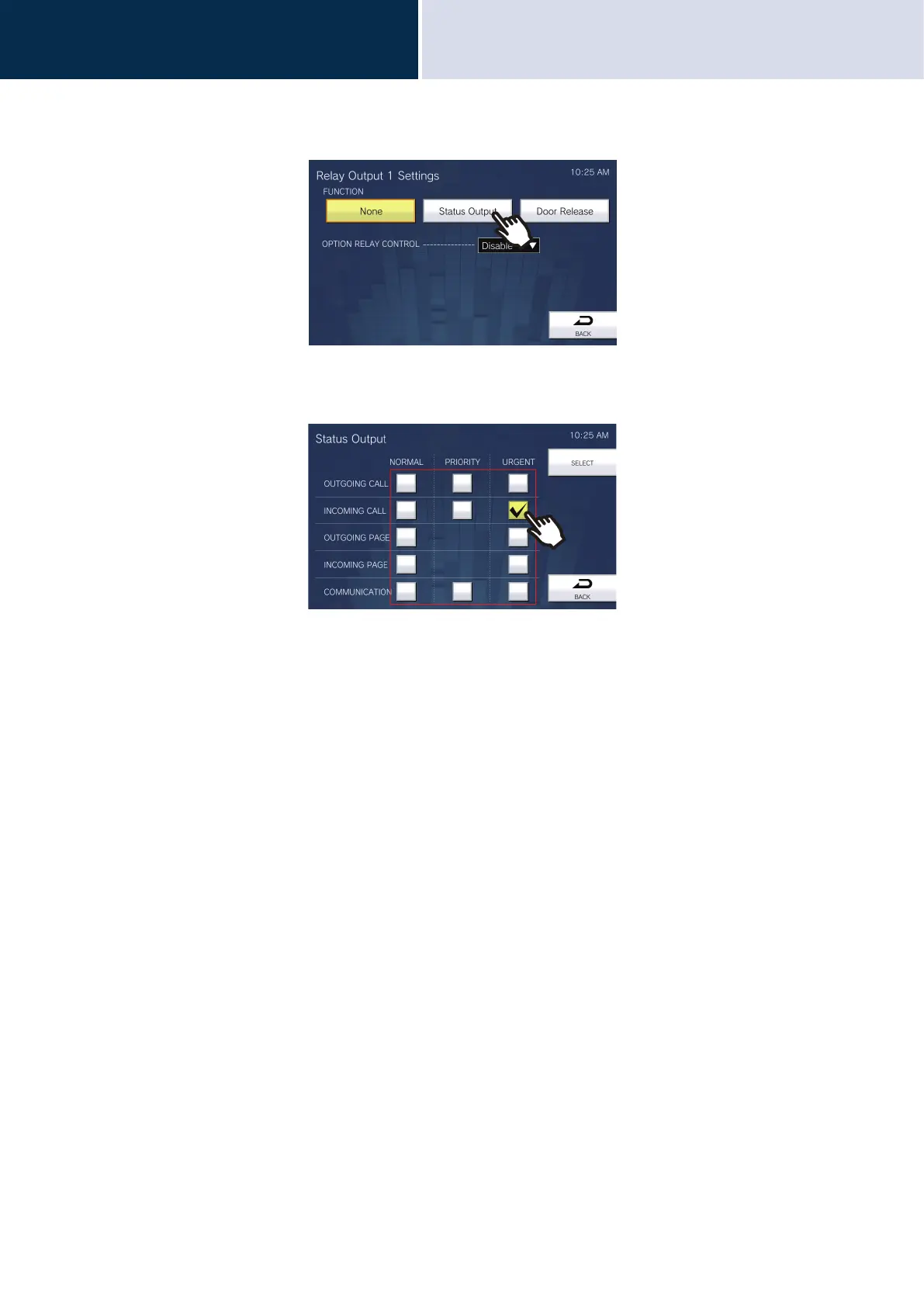

(1) On the Relay Output Settings (Advanced) screen, tap [Status Output].
– The Status Output screen will be shown.
(2) Select the operation to perform relay output (multiple selections allowed).
(3) Tap [SELECT].
– The settings will be saved.

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
