Aiphone IX SERIES User Manual

150
Settings and Adjustments
Configuring on the station
4

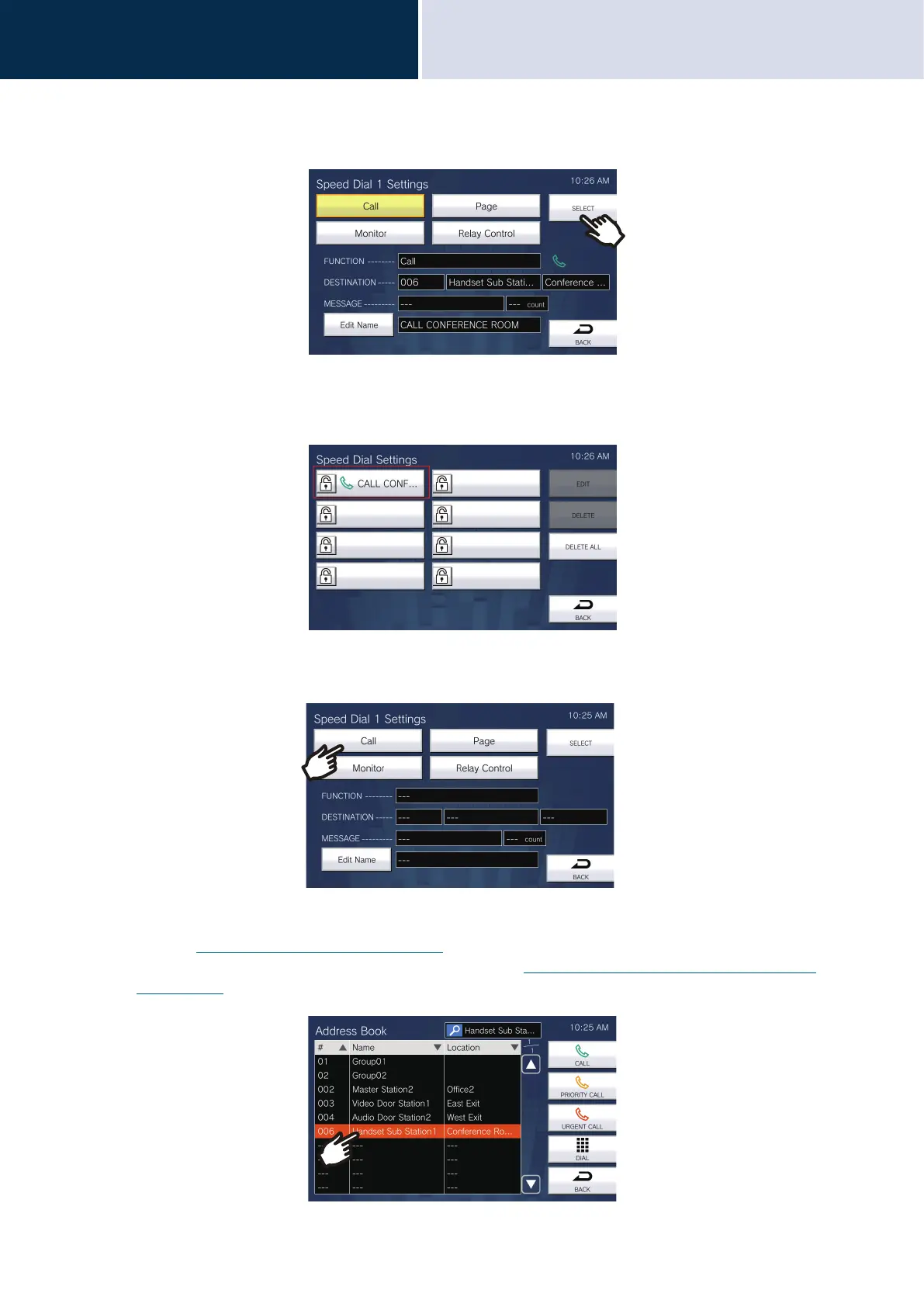

7. Confirm the details of the configured Speed Dial button, and then tap [SELECT].
• Tap [BACK] to return to the Speed Dial Settings screen without saving settings.
• The configured name will be displayed on the Favorites button. The entire name may not be displayed,
depending on the type of Home screen and number of characters.
• Display the Speed Dial Settings screen. The configured buttons are displayed as shown in the screen below.
How to assign calling functions to Speed Dial buttons
(1) On the Speed Dial Settings (Advanced) screen, tap [Call].
– The Address Book will be shown.
(2) Tap the destination station to set to the Speed Dial button.
– Refer to “Searching for stations (→page 32)” to search stations or groups.
– Tap [DIAL] to specify by station/group number. Refer to “Selecting / Choosing / Calling by Number
(→page 30)”.

Aiphone IX SERIES Specifications

General

Series	IX Series
Communication	IP Network
Audio	Yes
Video Codec	H.264
Network	Ethernet
Video	Yes
Integration	Yes
Security	Encrypted Communication
Power	PoE (IEEE 802.3af)
Video Resolution	720p HD
Audio Codec	G.711
Mounting	Wall Mount
Relay Outputs	Yes
Inputs	Yes
Relative Humidity	90% or less, non-condensing
Audio Output	Speaker (Internal or External)
Audio Input	Built-in Microphone
Type	Video Intercom
