129
REPLACEMENT OF MAIN COMPONENTS

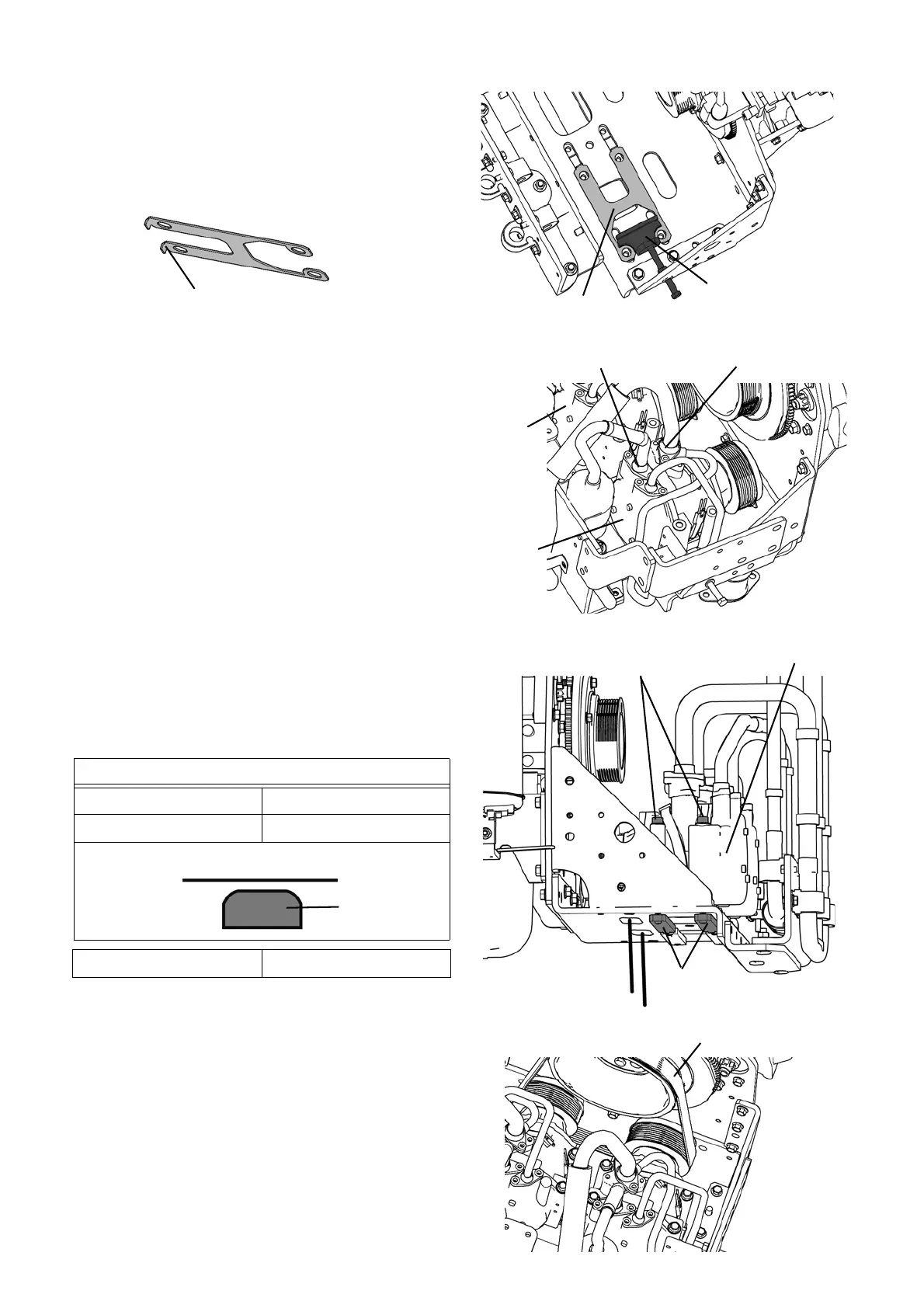

6. Check that the steel plate and the bracket under the
compressor main unit are in the correct position (see
right).
NOTE) Mount the steel plate so that the bent portion
faces down.
7. Mount the compressor on the compressor bracket.
1) To prevent pinching or hooking, move the wire har-
nesses of the compressor discharge pipe tempera-
ture sensor and refrigerant high pressure switch
above the discharge pipe (No. 1 compressor) or
between the discharge pipe and intake pipe (No. 2
compressor).
2) Mount the No. 2 compressor and No. 1 compressor
on the compressor bracket in order.
NOTE) Take care so that the flanges (o-ring contact
surfaces) of each port are not damaged.
3) Hold the 2 stays (plate-shaped) at No. 2 compres-
sor side under the bracket with your hand paying
attention to the direction. Holding the stays, tighten
4 compressor mounting bolts firmly of No. 2 com-
pressor.
4) Attach the compressor belt to the compressor.
Steel plate
Bracket
Bent portion
No.2
No.1
Intake port
Discharge port
Stays
Bolts (4 pieces)
No.2
Stay mounting direction
Rounded corner Bracket side
Sharp corner Base plate side
Tightening torque 31.0 lb·ft (42 N·m)
Stay
Bracket side
Compressor belts
To Next Page
