Introduction
15 TON

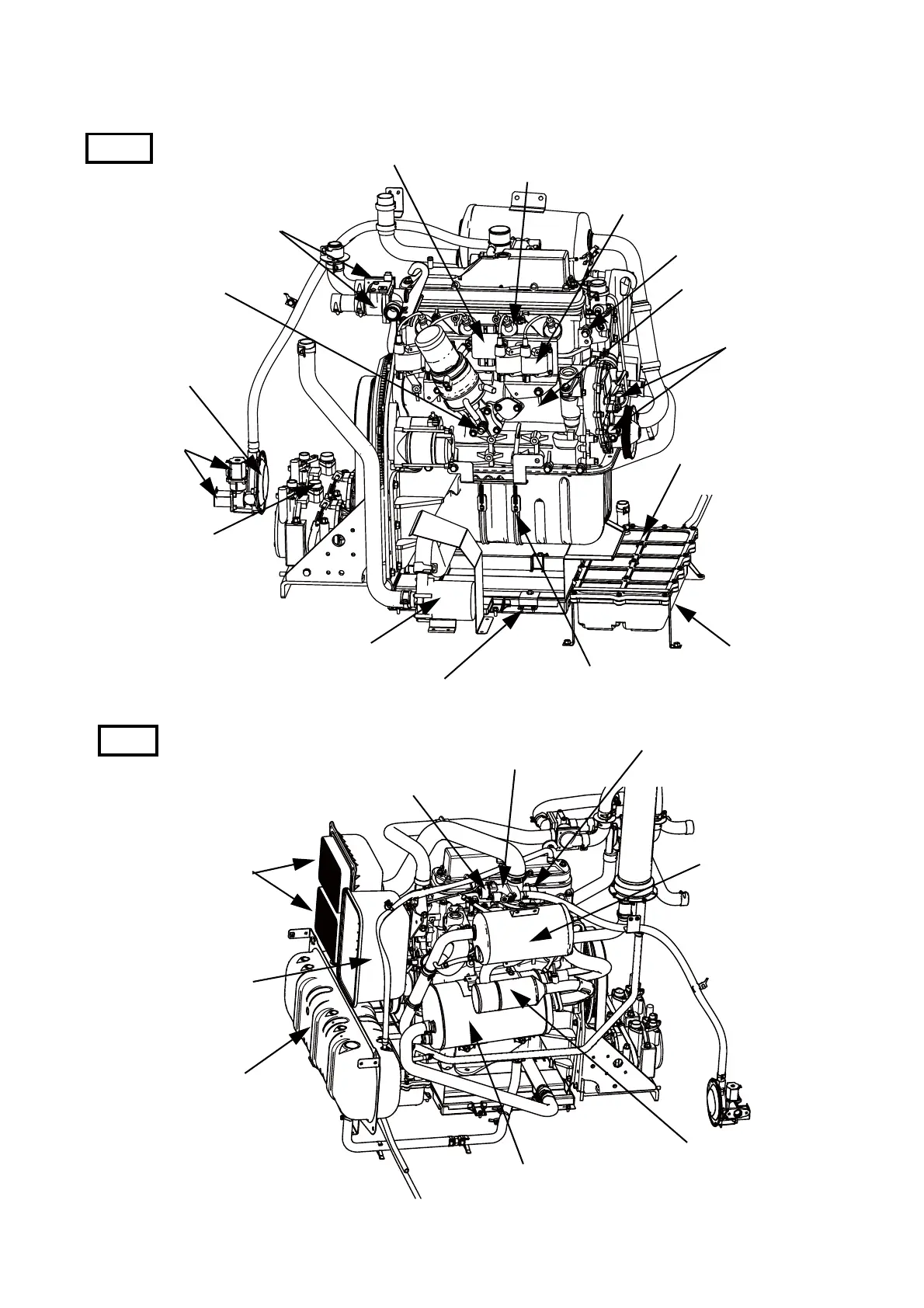

Figure 1 Engine and related parts
FRONT
Thermostats
Igniter
Sspark plugs (4 pieces)
Ignition coils (4 pieces)
Engine coolant temperature
sensor
Engine
Engine speed sensors
Engine oil pressure sensor
Gas regulator
Electromagnetic
gas valves
Exhaust water drain
heater
(unit with drain heater
kit only)
Compressor heater
Engine coolant pump
Oil level switch
Engine oil pan heater
Exhaust water drain filter
(unit with drain heater kit only)
REAR
Exhaust air heat exchanger
Gas mixer
Fuel gas flow control valve
Engine throttle valve
Air filters
Sub oil reservoir
Intake silencer
Exhaust muffler
Deodorizing catalyst
(unit with deodorant kit only)
