REPLACEMENT OF MAIN COMPONENTS
7) Unscrew 2 bolts to remove the bracket (front side).
8) Unscrew 4 bolts to remove the bracket (rear side).
Dismount the engine.
NOTE) When placing the engine on the floor, place
wooden blocks, rag or other appropriate mate-
rial on the floor and put the engine on it care-
fully so that the pipes on the bottom of the oil
pan will not be damaged.

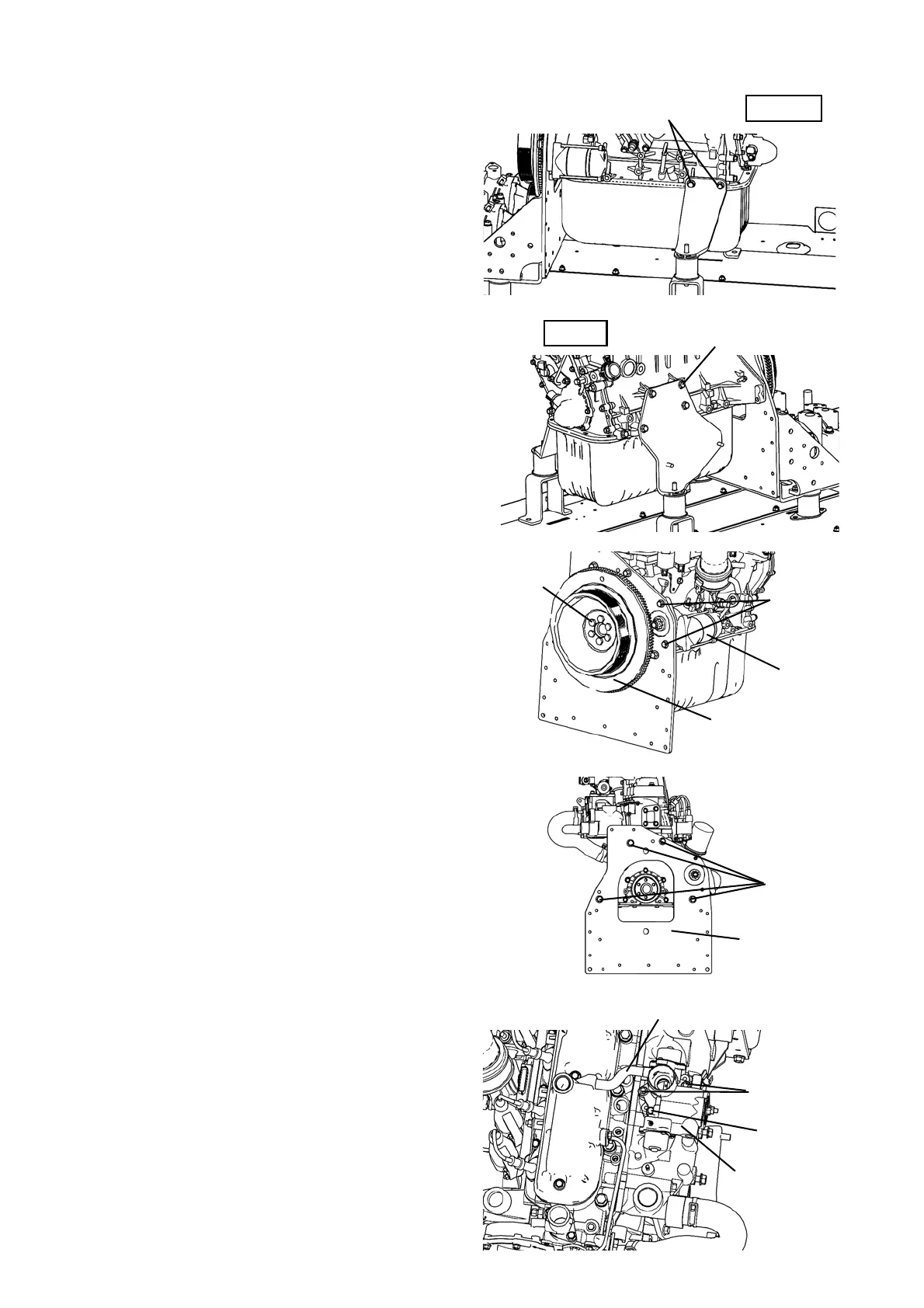

15. Remove the surrounding parts of engine.
1) Unscrew 6 bolts to remove the flywheel.
2) Unscrew 2 bolts to remove the starter.
3) Unscrew 4 bolts to remove the bracket.
4) Disconnect the blow-by hose.
5) Unscrew a bolt and 2 nuts to remove the gas mixer.
Bolts
Front side
Bolts (4 pieces)
Rear side
Bolts
Flywheel
Starter
Bolts
(6 pieces)
Bracket
Bolts
Bolt
Nuts
Gas mixer
Blow-by hose
To Next Page
