REPLACEMENT OF MAIN COMPONENTS
[Reassembling]

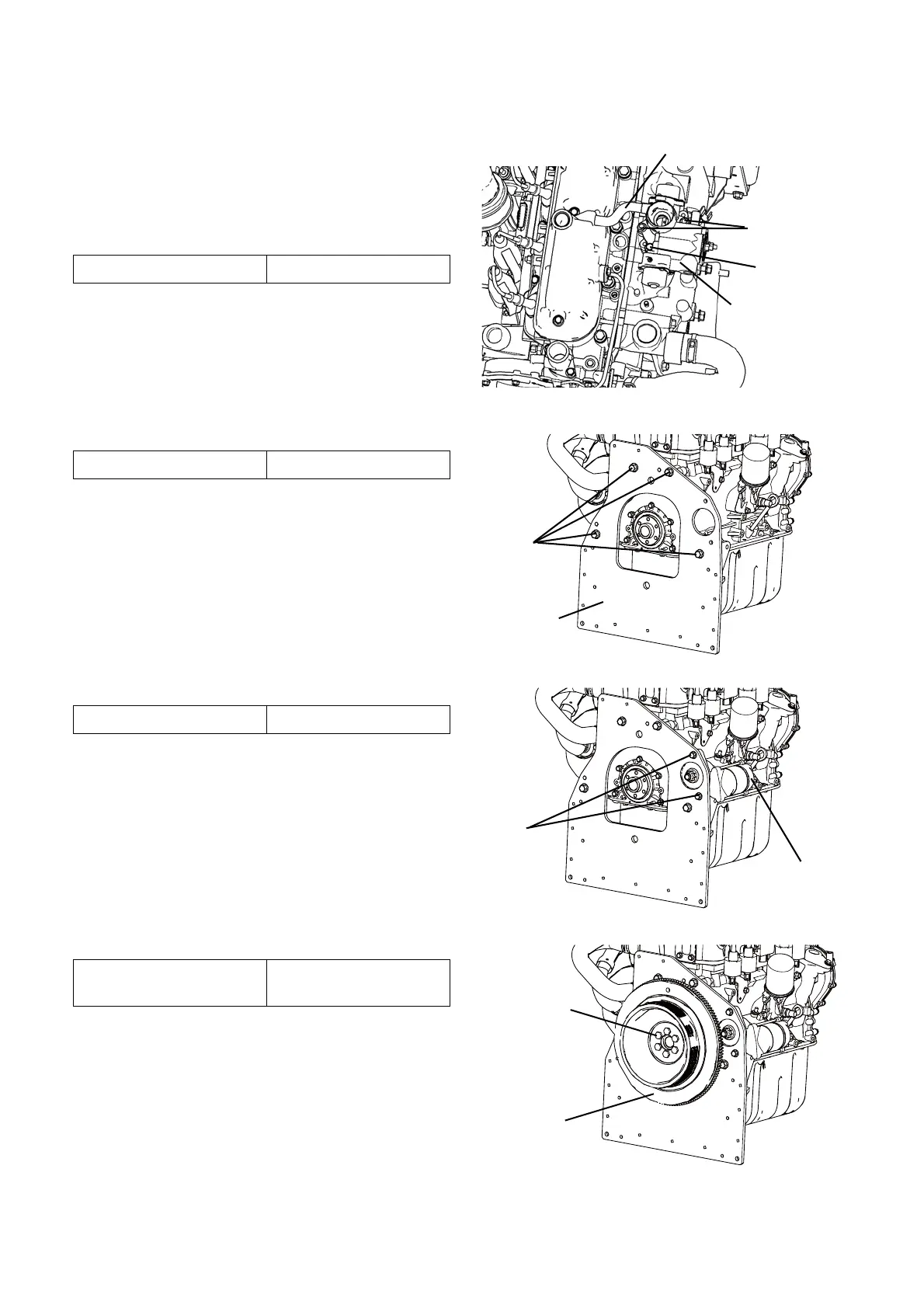

1. Mount the surrounding parts on the new engine.
1) Mount the gas mixer. Tighten it with a bolt and
2 nuts.
NOTE) Replace the gasket before installing the gas
mixer.
2) Connect the blow-by hose.
3) Mount the bracket and tighten 4 bolts.
4) Mount the starter and tighten 2 bolts.
5) Mount the flywheel and tighten 6 bolts.
Bolt
Nuts
Gas mixer
Blow-by hose
Tightening torque 14.8 lb·ft (20.0 N·m)
Bracket
Bolts
Tightening torque 52.5 lb·ft (71.0 N·m)
Starter
Bolts
Tightening torque 31.0 lb·ft (42.0 N·m)
Bolts
(6 pieces)
Flywheel
Tightening torque
57.7 ~ 65.1 lb·ft
(78 ~ 88 N·m)
To Next Page
