90

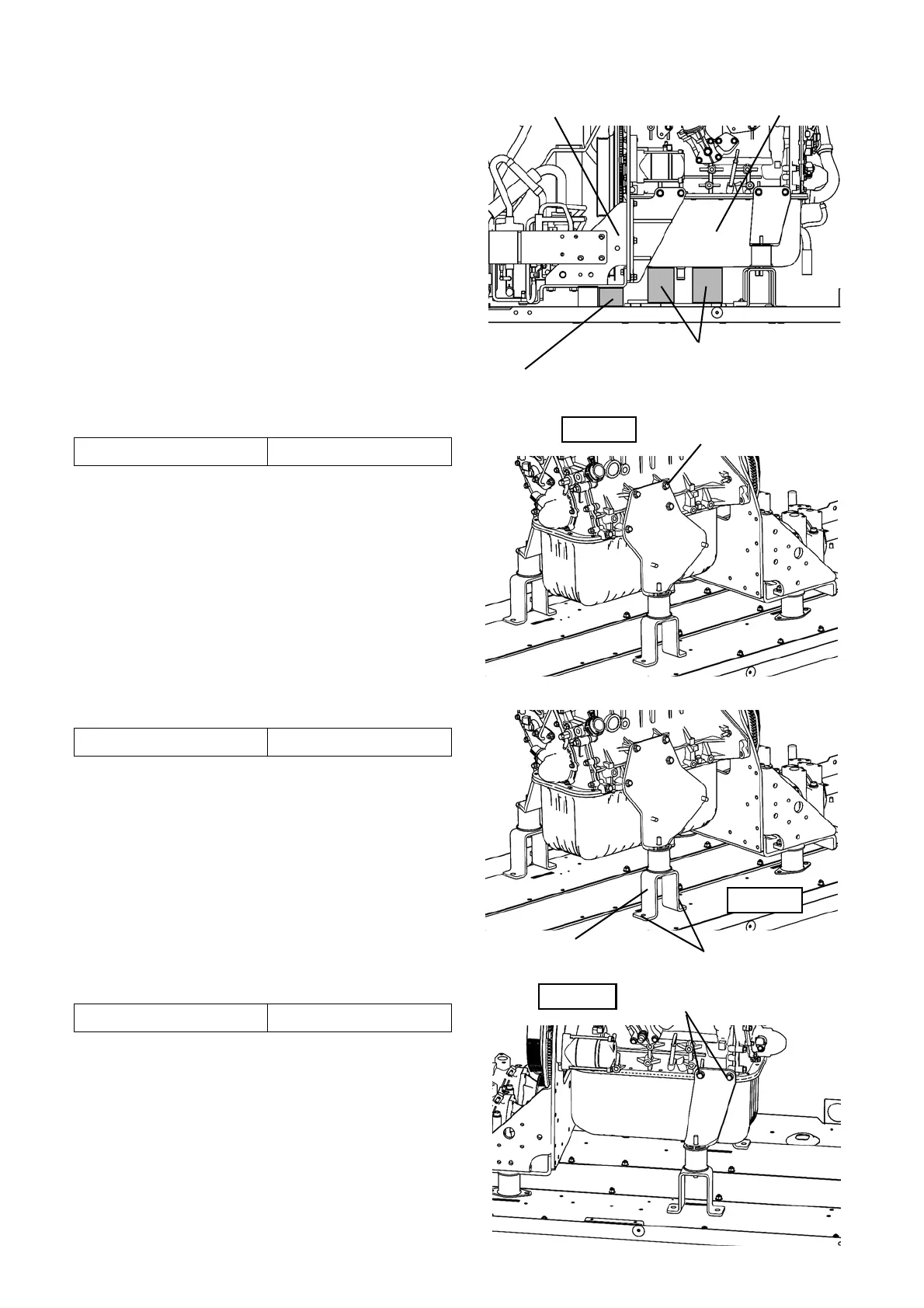

REPLACEMENT OF MAIN COMPONENTS
2. Reassemble the engine.
1) Place a wooden block (thickness: approximately
2 inch (55 mm), length: 24 inch (600 mm) or longer)
under the compressor bracket.
2) Place 2 wooden blocks (thickness: approximately
4-1/2 inch (115 mm), length: 24 inch (600 mm) or
longer) where the engine is placed.
3) Place the new engine on the wooden blocks.
4) Mount the rear side bracket and tighten 4 bolts.
5) Tighten 2 bolts of engine mount bracket.
6) Mount the front side bracket and tighten 2 bolts.
Bracket
Oil pan
Wooden block (Thickness ： 2inch)
Wooden blocks (Thickness ： 4-1/2inch)
Bolts (4 pieces)
Rear side
Tightening torque 31.0 lb·ft (42.0 N·m)
Bolts
Bracket
Rear side
Tightening torque 31.0 lb·ft (42.0 N·m)
Bolts
Front side
Tightening torque 31.0 lb·ft (42.0 N·m)
To Next Page
