MACHINE OPERATION
MOVEMENTS

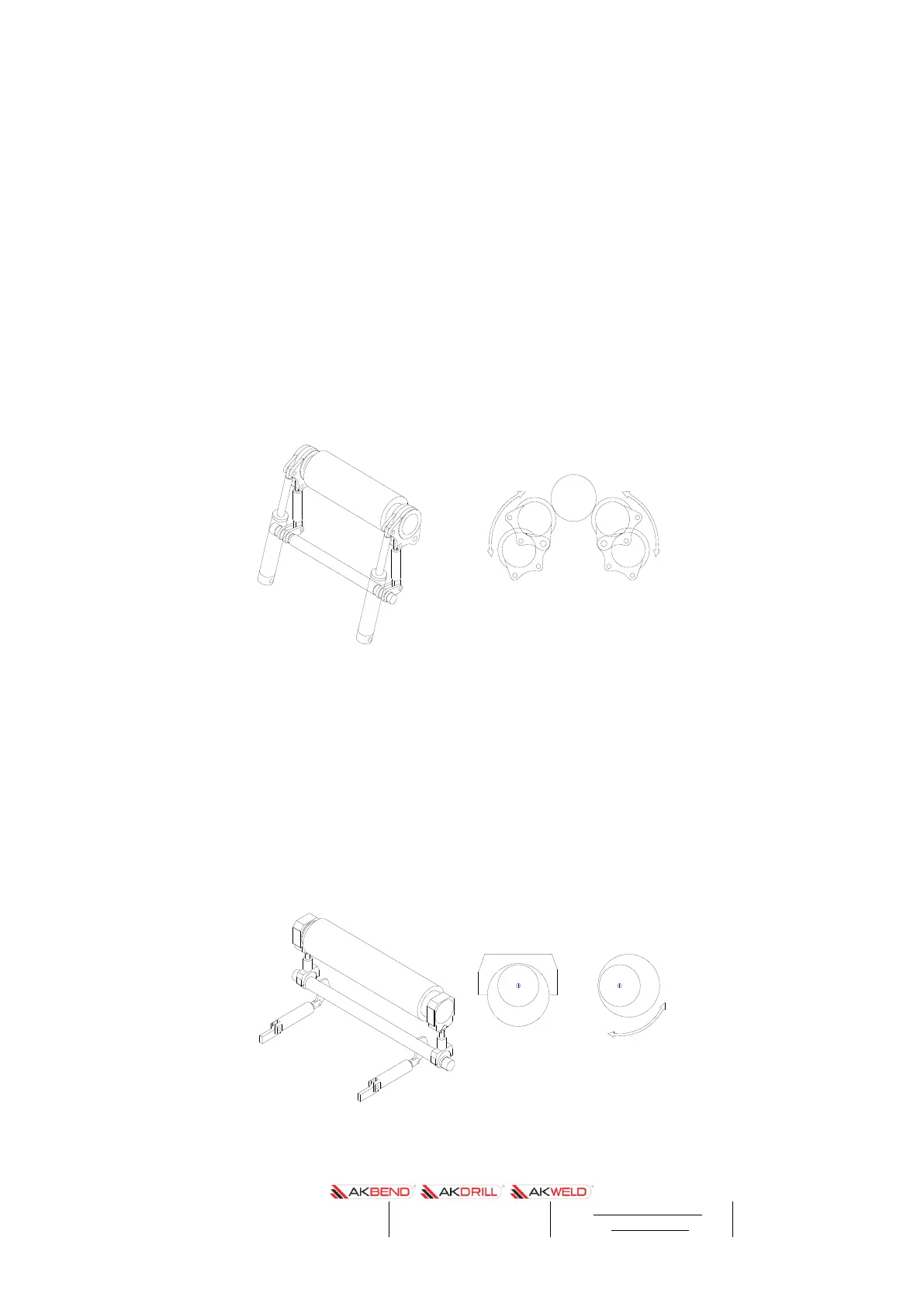

1. UP AND DOWN MOVEMENTS OF SIDE ROLLS
Up and down movements of side rolls are performed with the help of circular path of the
hydraulic cylinder. Evenness of side rolls are provided mechanically by the camshaft. Perfect
evenness is provided by heavy steel camshaft and the moving yoked arms of side rolls. With
this feature, it is very easy that side rolls take the conical bending position and smoothed.
2. UP AND DOWN MOVEMENTS OF LOWER ROLL
Up and down movements of lower rolls are performed with the help of the hydraulic
cylinder and eccentric cam. Evenness of lower roll is provided by the stabilizing shaft. Perfect
evenness is provided by the connection of powerful camshaft and the eccentric cam of the
lower roll.
