ALLEN & HEATH CQ-12T User Manual

 108
User Guide V1.1.0 Issue 1

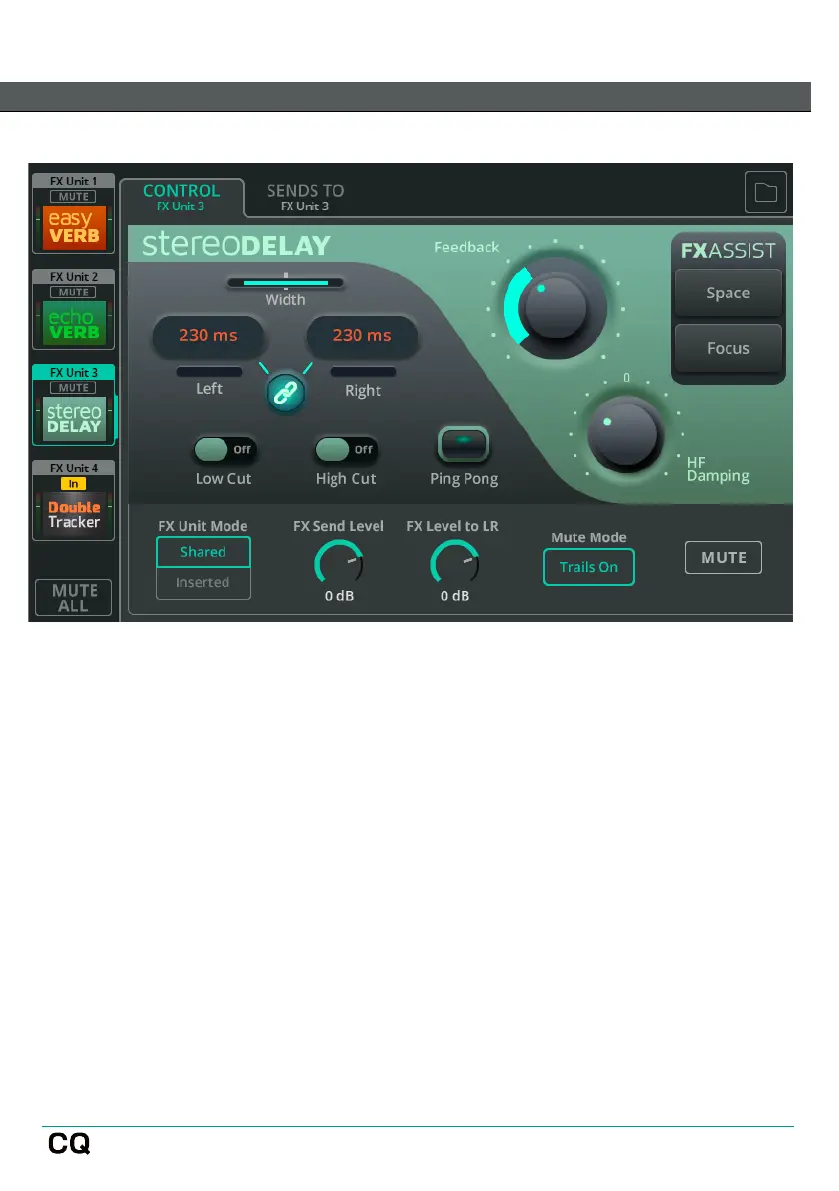

FX Model - Stereo Delay
Stereo Delay includes two tap delays (left and right) where the speed of repeats
can be set independently for each.
Width – Adjust from centre (both delays are heard in the centre) to full width (left
is only heard in the left output and right is only heard in the right output).
 Width has no effect if Stereo Delay is inserted into a mono channel.
Left/Right – Tap multiple times on the ms value box to set delay time or select
and adjust with the touchscreen rotary (CQ-12T, CQ-18T) or touch and drag (CQ-
MixPad).
Link – Link the Left and Right delay times.
Low/High Cut – Cut Low or High frequencies from the sound being repeated.
Ping Pong – Turn On to have the repeats alternate Left/Right.
Feedback – Adjust the level of the repeats feeding back into the delay.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
