ALLEN & HEATH CQ-12T User Manual

 88
User Guide V1.1.0 Issue 1

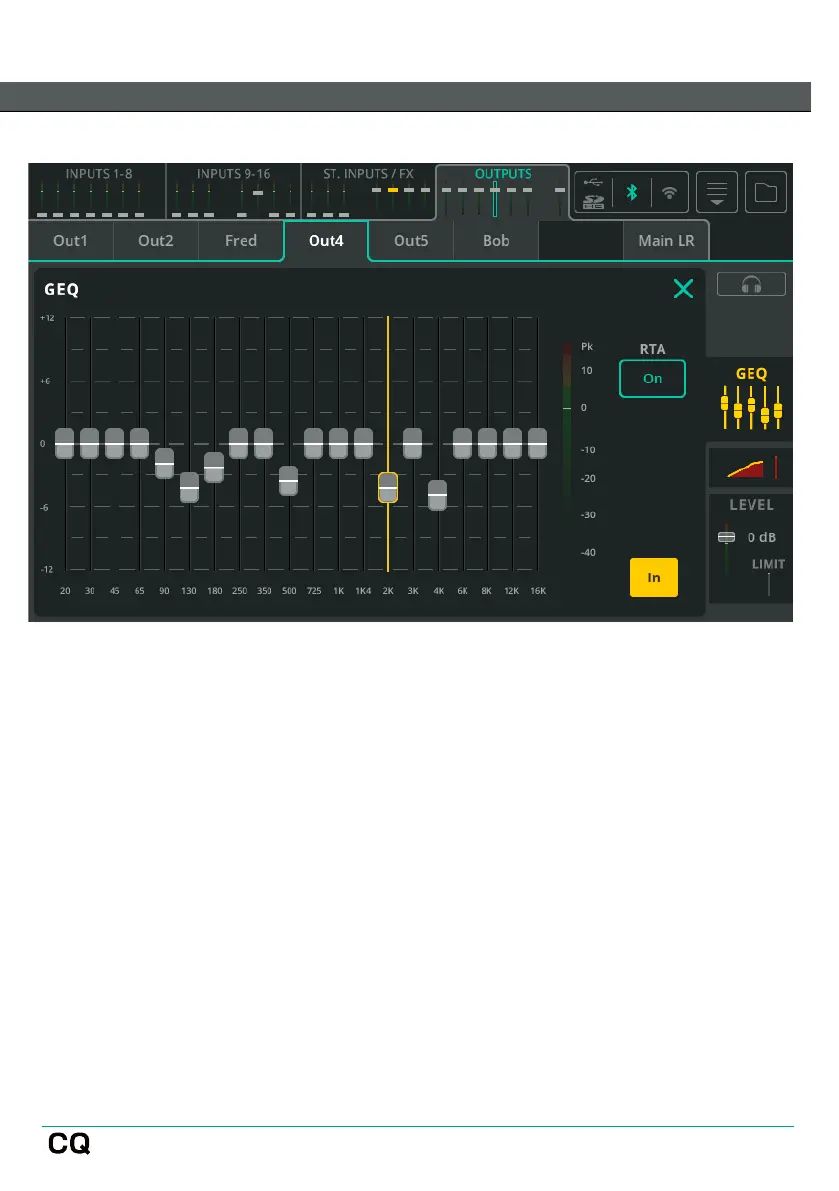

OUTPUT / GEQ
A GEQ is used to cut or boost specific frequencies in the signal.
Fader – Touch and drag or select a band and use the touchscreen rotary (CQ-12T,
CQ-18T) to cut or boost by up to 12dB.
RTA – Enable this option to see a Real Time Analyser on the GEQ.
In/Out – Enable or disable the GEQ.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
