ALLEN & HEATH CQ-12T User Manual

 129
User Guide V1.1.0 Issue 1

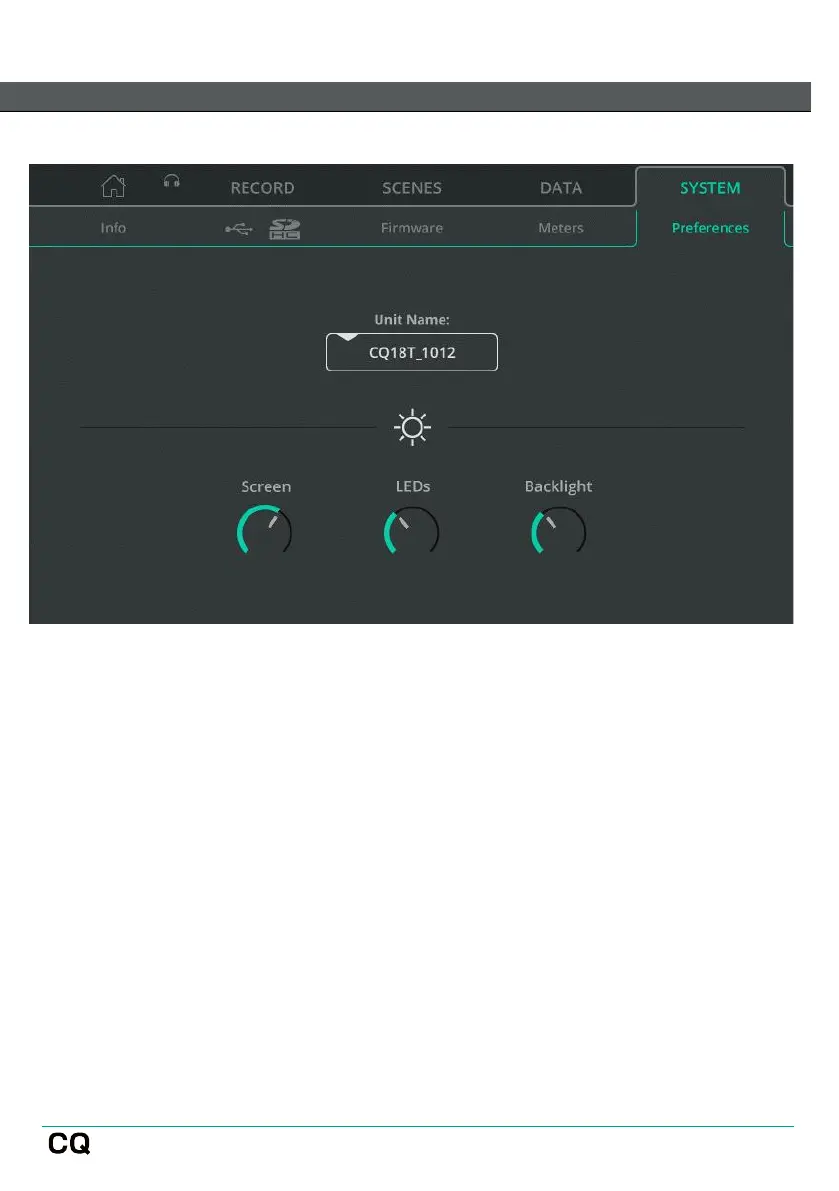

SYSTEM / Preferences
Unit Name – Change the name of the unit, as displayed in the ‘Choose Unit’
connection screen when using remote control apps (CQ-MixPad, CQ4You)
Unit name and the Wi-Fi Access Point network name (SSID) on the CQ-18T and CQ-
20B are the same by default, but can be renamed independently.
Screen – Adjust the brightness of the touchscreen.
LEDs – Adjust the brightness of selected Screen key and active Soft Keys.
Backlight – Adjust the brightness of the Screen and Soft Key backlight.

ALLEN & HEATH CQ-12T Specifications

General

Phantom power	48 V
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	35 W
Frequency range	20 - 20000 Hz
Channels quantity	12 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
Built-in display	Yes
Output impedance	75 Ω
Compatible memory cards	SD
XLR out	2
RJ-45 ports quantity	1
Number of microphone inputs	10
DJ mixer	-
USB connector type	USB Type-A, USB Type-B

Weight and Dimensions

Depth	242 mm
Width	291 mm
Height	89 mm
Weight	2400 g
Package depth	305 mm
Package width	370 mm
Package height	190 mm
Package weight	3200 g
